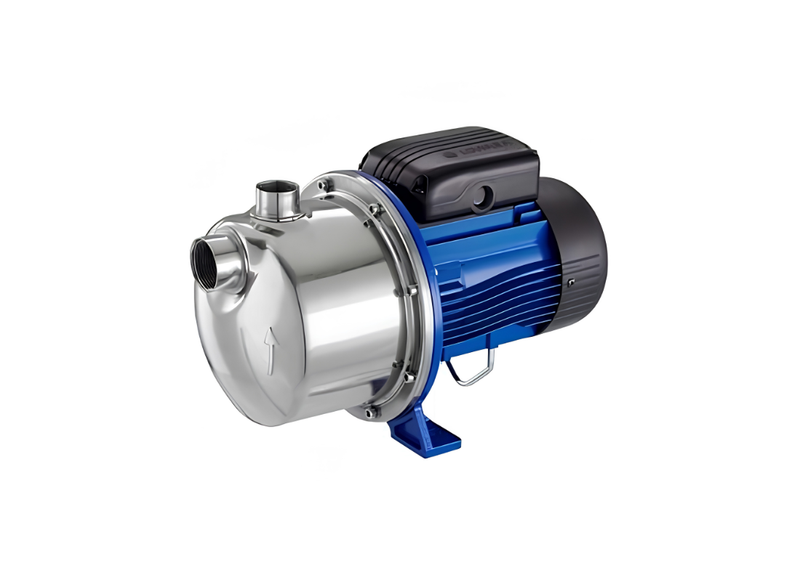

Lowara BG3 Stainless Steel IE2 Self-Priming Centrifugal Pump for Water Supply with Technopolymer Diffuser
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara BG3 self-priming centrifugal pump is designed for water distribution, irrigation, pressure boosting, rainwater collection, and washing applications where dependable self-priming operation is required. Its close-coupled centrifugal hydraulic design with integrated ejector system allows the pump to maintain priming performance even in applications involving water containing dissolved gases, making it suitable for residential, agricultural, and light industrial clean water transfer duties.
Constructed with stainless steel AISI 304 hydraulic components, the BG3 combines corrosion-resistant durability with efficient water transfer performance across continuous operating applications. The pump delivers flow rates up to 47.5 L/Min with maximum head performance up to 30.6 metres based on the highest non-zero operating point from the technical performance table. The three-phase IE2 motor operates on 415V 50Hz power supply with maximum input power of 0.68 kW, rated current of 1.48A, and operating speed of approximately 2900 rpm.
The built-in ejector system assists with reliable self-priming functionality while the asynchronous externally ventilated motor design supports stable hydraulic operation across pressure boosting and water supply systems. The motor incorporates IP55 protection and Class 155 (F) insulation for demanding operating environments where consistent water transfer performance is required.
The BG3 is equipped with 32 mm inlet and 25 mm outlet connections for integration into clean water transfer and pressure supply installations. Its compact lightweight construction assists with installation flexibility across irrigation systems, rainwater collection setups, washing systems, and general water transfer applications. Supplied with manufacturer warranty coverage for self-priming centrifugal pump applications.
Features
- Close-coupled self-priming centrifugal pump design
- Integrated ejector system for reliable priming operation
- Stainless steel AISI 304 hydraulic construction
- IE2 efficiency three-phase motor configuration
- Suitable for irrigation and pressure boosting systems
- IP55 motor protection rating
- Class 155 (F) insulation system
- Externally ventilated asynchronous motor design
- Suitable for clean water transfer applications
- Compact lightweight installation footprint
SPECIFICATIONS
| Max Flow | 47.5 L/Min |
| Max Head | 30.6 m |
| Power | 0.4 kW / 240v |
| Rated Current | 1.26 Amps |
| Suitable For | Water Transfer Applications |
| Body Material | Stainless Steel AISI 304 |
| Liquid Temperature | -10°C to +40°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum flow rate and suction discharge port connections are on this pump?
Water transfer duties are powered by the BG3, delivering a peak flow rate of approximately 60 L/Min through its Rp 1-1/4" (32 mm) suction and Rp 1" (25 mm) discharge connection ports.
What materials are used in the pump body and ejector assembly to resist fluid corrosion?
Hydraulic corrosion defense in clean water transfer is provided by AISI 304 stainless steel casing and impeller, with Technopolymer PA66+GF30 built-in ejector in the BG-3, rated for liquid temperatures from -10°C to +40°C.
What electrical voltage and kilowatt power feed are required to drive this three-phase pump?
Three-phase electrical input for the BG 3 is rated at 0.37 kW on a 380–415 V, 50 Hz, three-phase grid at 1.48 A, protected by an IP55 weatherproof motor enclosure, Class F insulation.
How does the integrated ejector support priming and where is horizontal mounting recommended?
Horizontal surface mounting on a rigid foundation is advised for the BG_3, utilizing its integrated ejector to maintain suction prime up to 8 meters.
What peak dynamic elevation head can this self-priming jet pump generate?
Suction lift and pressure boosting duties are met by the BG3, achieving a maximum dynamic head of approximately 36.9 m.
