SKU: BG5

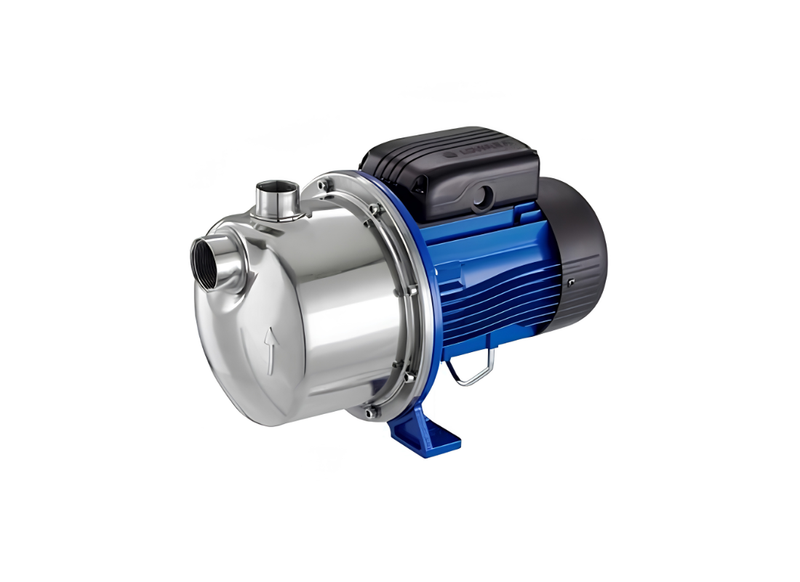

Lowara BG5 Stainless Steel IE2 Self-Priming Centrifugal Pump for Irrigation with Technopolymer Ejector
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara BG5 self-priming centrifugal pump is designed for water distribution, pressure boosting, irrigation, rainwater collection, and washing applications requiring dependable self-priming performance. Its close-coupled hydraulic construction with integrated ejector system assists with maintaining reliable operation in clean water transfer systems, including installations involving water containing dissolved gases.
Constructed with stainless steel hydraulic components and stainless steel impeller construction, the BG5 combines corrosion-resistant durability with efficient hydraulic performance across residential, agricultural, and light industrial applications. The pump delivers flow rates up to 55 L/Min with maximum head performance up to 35.7 metres based on the highest non-zero operating point from the technical performance table. The three-phase motor operates on 415v power supply with maximum input power of 0.81 kW and rated current of 1.58A during 415V operation.
The integrated ejector system supports dependable self-priming functionality while the externally ventilated asynchronous motor design assists with continuous water transfer and pressure boosting duties. The BG5 incorporates motor type SM71BG/305 with rated motor power of 0.55 kW, while the technopolymer PA66+GF30 ejector construction supports reliable operating performance across demanding water handling applications.
The BG5 features 32 mm inlet and 25 mm outlet connections for integration into clean water transfer and pressure supply installations. Suitable for irrigation systems, washing equipment, rainwater collection, and general water transfer duties requiring dependable self-priming operation. Supplied with manufacturer warranty coverage for self-priming centrifugal pump applications.
Features
- Close-coupled self-priming centrifugal pump design
- Integrated ejector system for reliable priming operation
- Stainless steel hydraulic and impeller construction
- Suitable for pressure boosting and irrigation systems
- Externally ventilated asynchronous motor design
- Technopolymer PA66+GF30 ejector construction
- Suitable for clean water transfer applications
- Compact installation footprint
- Suitable for residential and light industrial water systems
- Three-phase motor configuration
SPECIFICATIONS
| Max Flow | 55 L/Min |
| Max Head | 35.7 m |
| Power | 0.55 kW / 415v |
| Rated Current | 1.44 Amps |
| Suitable For | Irrigation and Water Transfer Applications |
| Body Material | Stainless Steel AISI 304 |
| Liquid Temperature | -10°C to +40°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the stainless alloy construction protect this jet pump from fluid corrosion?
Long-term durability against corrosion and particulate erosion relies on AISI 304 stainless steel casing and impeller, with Technopolymer PA66+GF30 built-in ejector in the BG5, supporting operating pressures up to 8 bar (PN 8).
What three-phase supply voltage and electrical power rating operate this jet pump?
Operating the three-phase motor on the BG-5 requires a 0.55 kW feed across 380–415 V, 50 Hz, three-phase drawing 1.58 A, built with IP55 weatherproof motor enclosure, Class F insulation.
What horizontal mounting guidelines apply to this self-priming unit with its integrated ejector?
Surface placement on a level horizontal base is recommended for the BG 5, where its integrated venturi ejector manages entrained air pockets.
How much vertical elevation head does this jet unit deliver during operation?
Elevating clean water across domestic runs, the BG_5 provides a peak dynamic head rating of approximately 40.2 m.
What flow delivery volume can this self-priming jet pump generate through its discharge outlet?
Supplying clean water distribution, the BG5 generates a maximum delivery flow of approximately 70 L/Min with Rp 1-1/4" (32 mm) suction and Rp 1" (25 mm) discharge threads.
