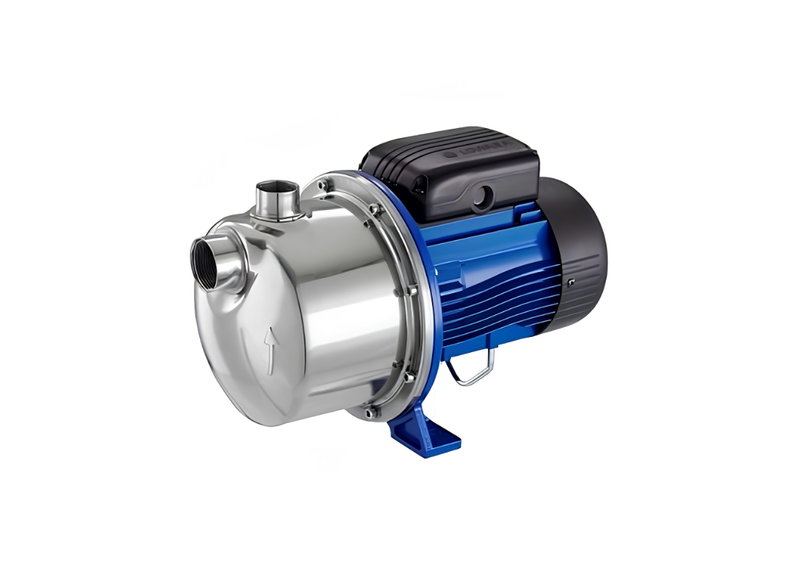

Lowara BG9 Stainless Steel Durable Self-Priming Centrifugal Pump for Wash Systems with Aluminium Adapter
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara BG9 self-priming centrifugal pump is engineered for pressure boosting, agricultural water movement, washing systems, and clean water transfer applications requiring dependable hydraulic performance. Its close-coupled self-priming configuration with integrated ejector system assists with maintaining reliable operation across demanding water handling installations, including systems involving dissolved gases within transferred water.
Built using stainless steel hydraulic components and stainless steel impeller construction, the BG9 combines corrosion-resistant durability with efficient clean water transfer performance across residential, agricultural, and light industrial operating environments. The pump delivers flow rates up to 62.5 L/Min with maximum head performance up to 39.4 metres based on the highest non-zero operating point from the technical performance table. The three-phase IE3 motor operates on 415v power supply with maximum input power of 1.11 kW and rated current of 2.18A during operation.
The integrated ejector system supports dependable self-priming functionality while the externally ventilated asynchronous motor design assists with continuous pressure boosting and water supply duties. The BG9 incorporates motor type SM80BG/311PE with rated motor power (P2) of 0.9 kW and operating speed of approximately 2900 rpm for stable hydraulic performance across continuous clean water handling applications.
The BG9 features 32 mm inlet and 25 mm outlet connections for integration into pressure boosting systems, washing installations, and agricultural water transfer applications. Its compact hydraulic footprint and stainless steel construction assist with long-term operating reliability across demanding clean water environments. Supplied with manufacturer warranty coverage for self-priming centrifugal pump applications.
Features
- Self-priming centrifugal pump with integrated ejector system
- Stainless steel hydraulic and impeller construction
- IE3 efficiency three-phase motor configuration
- Suitable for pressure boosting and agricultural water systems
- Externally ventilated asynchronous motor design
- Reliable clean water transfer performance
- Compact close-coupled hydraulic construction
- Suitable for washing and water supply installations
- Designed for continuous clean water handling duties
- Suitable for residential and light industrial applications
SPECIFICATIONS
| Max Flow | 62.5 L/Min |
| Max Head | 39.4 m |
| Power | 0.9 kW / 415v |
| Rated Current | 2.39 Amps |
| Suitable For | Agricultural Water Transfer Applications |
| Body Material | Stainless Steel AISI 304 |
| Liquid Temperature | -10°C to +40°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How should this self-priming pump with its integrated ejector be anchored on a horizontal base?
Horizontal mounting in a dry, ventilated utility space is recommended for the BG9, with its integrated ejector ensuring dependable priming.
What is the maximum dynamic head produced by this close-coupled jet unit?
Delivering strong vertical elevation, the BG-9 produces a maximum dynamic head of approximately 49.6 m across its curve.
What water discharge flow and connection pipe sizes apply to this self-priming unit?
Domestic and garden irrigation delivery utilizes the BG 9, providing a maximum flow rate of approximately 85 L/Min via Rp 1-1/4" (32 mm) suction and Rp 1" (25 mm) discharge connections.
Which materials are engineered into the hydraulic casing and venturi ejector to prevent chemical attack?
Resistance against fluid corrosion and particulate wear is built into the BG_9 through AISI 304 stainless steel casing and impeller, with Technopolymer PA66+GF30 built-in ejector, maintaining integrity across fluid temperatures from -10°C to +40°C.
What electrical power input and supply voltage are required for this three-phase jet pump?
Driving the rotating assembly of the BG9 relies on a 0.9 kW motor on 380–415 V, 50 Hz, three-phase drawing 2.18 A, featuring IP55 weatherproof motor enclosure, Class F insulation.
