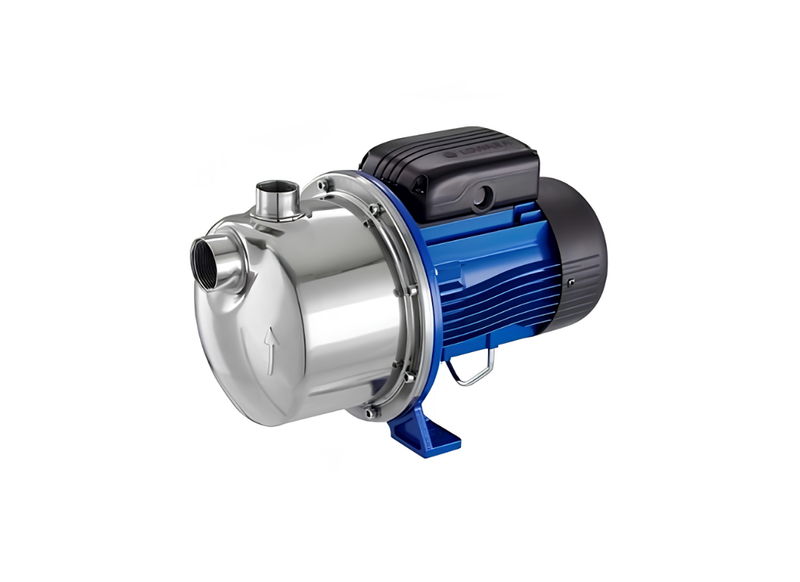

Lowara BGM11 Stainless Steel Continuous Self-Priming Centrifugal Pump for Boosting with Ceramic Seal
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara BGM11 self-priming centrifugal pump is engineered for residential pressure boosting, rainwater reuse, washing installations, and continuous clean water transfer duties requiring dependable hydraulic performance. Its close-coupled self-priming configuration with integrated ejector system assists with maintaining stable operation across domestic water handling systems involving dissolved gases within transferred liquid.
Constructed using stainless steel hydraulic components and stainless steel impeller construction, the BGM11 combines corrosion-resistant durability with efficient clean water handling performance across residential operating environments. The pump delivers flow rates up to 70 L/Min with maximum head performance up to 43.9 metres based on the highest non-zero operating point from the technical performance table. The hydraulic platform shares the same operating family as the BG11 three-phase configuration while incorporating a single-phase motor arrangement for domestic installation requirements.
The single-phase motor operates on 240v power supply with maximum input power of 1.34 kW and rated current of 5.92A during operation. The BGM11 incorporates motor type SM80BG/1115 with rated motor power (P2) of 1.1 kW and capacitor specification of 30 µF / 450 V for reliable residential water transfer and pressure boosting operation.
The BGM11 features 32 mm inlet and 25 mm outlet connections for integration into residential water supply systems, rainwater transfer installations, and pressure boosting setups. Compact close-coupled hydraulic construction assists with installation flexibility across demanding clean water environments requiring reliable self-priming performance. Supplied with manufacturer warranty coverage for self-priming centrifugal pump applications.
Features
- Self-priming centrifugal pump with integrated ejector system
- Stainless steel hydraulic and impeller construction
- Single-phase motor configuration
- Designed for residential pressure boosting duties
- Supports continuous clean water transfer operation
- Reliable self-priming hydraulic performance
- Compatible with rainwater reuse installations
- Compact close-coupled pump construction
- Externally ventilated asynchronous motor design
- Suitable for household water supply systems
SPECIFICATIONS
| Max Flow | 70 L/Min |
| Max Head | 43.9 m |
| Power | 1.34 kW / 240v |
| Rated Current | 5.92 Amps |
| Suitable For | Clean Water Transfer |
| Body Material | Stainless Steel AISI 304 |
| Liquid Temperature | -10°C to +40°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What peak dynamic head does this household jet pump attain during operation?
Operating across residential supply systems, the BGM11 maintains a peak dynamic head capability of approximately 52.9 m.
What water discharge volume is delivered by this self-priming jet unit through its outlet?
Plumbing circuit transfer relies on the BGM-11, outputting a peak delivery flow of approximately 90 L/Min through Rp 1-1/4" (32 mm) suction and Rp 1" (25 mm) discharge ports.
How is this domestic jet pump constructed to resist surface corrosion and chemical attack in clean water?
Clean water circulation durability against corrosion is ensured by AISI 304 stainless steel casing and impeller, with Technopolymer PA66+GF30 built-in ejector in the BGM 11, which withstands line pressures up to 8 bar (PN 8).
What kilowatt rating and single-phase electrical power operate this household pump?
Powering the BGM_11 requires a 1.1 kW motor running on a 220–240 V, 50 Hz, single-phase power supply, drawing approximately 5.92 A with IP55 weatherproof motor enclosure with automatic reset thermal overload protection.
What horizontal floor placement guidelines apply to this domestic pump with its integrated ejector?
Floor installation on a stable horizontal surface is advised for the BGM11, relying on its integrated ejector to maintain reliable prime.
