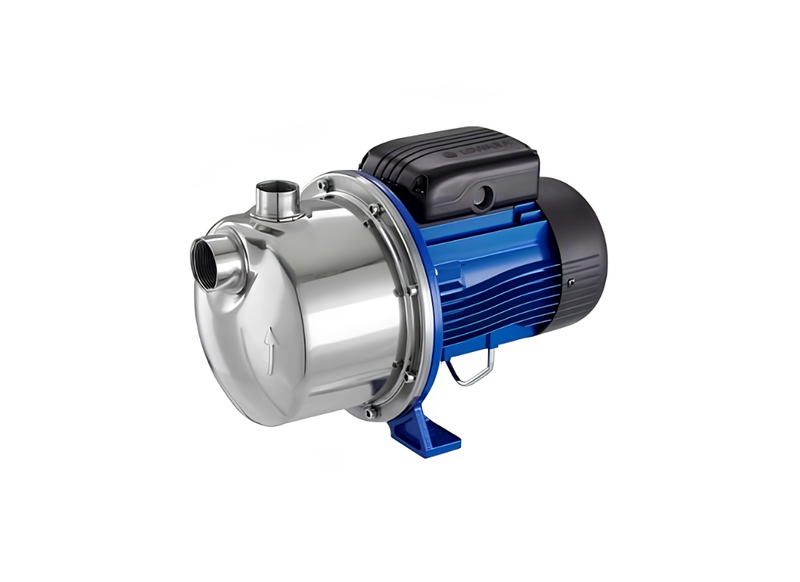

Lowara BGM3 Stainless Steel Efficient Self-Priming Centrifugal Pump for Irrigation with EPDM Elastomers
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara BGM3 self-priming centrifugal pump is designed for rainwater collection, domestic water transfer, washing systems, and pressure boosting applications requiring dependable self-priming performance. Its close-coupled hydraulic construction with integrated ejector system assists with maintaining reliable operation across clean water installations involving dissolved gases within transferred water.
Constructed using stainless steel hydraulic components and stainless steel impeller construction, the BGM3 combines corrosion-resistant durability with efficient hydraulic performance across residential and light-duty water handling environments. The pump delivers flow rates up to 47.5 L/Min with maximum head performance up to 32.5 metres based on the highest non-zero operating point from the technical performance table. The single-phase motor operates on 240v power supply with maximum input power of 0.67 kW and rated current of 2.87A during operation.
The integrated ejector system supports dependable self-priming functionality while the externally ventilated asynchronous motor design assists with continuous clean water transfer and pressure boosting duties. The BGM3 incorporates motor type SM71BG/1055 with rated motor power (P2) of 0.55 kW and capacitor specification of 16 µF / 450 V for reliable hydraulic operation across domestic water handling systems.
The BGM3 features 32 mm inlet and 25 mm outlet connections for integration into rainwater systems, washing installations, and residential water transfer applications. Its compact hydraulic footprint and stainless steel construction assist with long-term operating durability across continuous clean water environments. Supplied with manufacturer warranty coverage for self-priming centrifugal pump applications.
Features
- Self-priming centrifugal pump with integrated ejector system
- Stainless steel hydraulic and impeller construction
- Single-phase motor configuration
- Suitable for rainwater collection and water transfer systems
- Externally ventilated asynchronous motor design
- Reliable clean water transfer performance
- Compact close-coupled hydraulic construction
- Suitable for domestic pressure boosting applications
- Designed for continuous clean water handling duties
- Suitable for residential water supply installations
SPECIFICATIONS
| Max Flow | 47.5 L/Min |
| Max Head | 32.5 m |
| Power | 0.55 kW / 240v |
| Rated Current | 3.19 Amps |
| Suitable For | Rainwater Collection Transfer Applications |
| Body Material | Stainless Steel AISI 304 |
| Liquid Temperature | -10°C to +40°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum water flow and suction discharge pipe sizes are built into this pump?
Water transfer duties are powered by the BGM3, delivering a peak flow rate of approximately 60 L/Min through its Rp 1-1/4" (32 mm) suction and Rp 1" (25 mm) discharge connection ports.
What construction materials protect this single-stage jet pump from fluid corrosion?
Hydraulic corrosion defense in clean water transfer is provided by AISI 304 stainless steel casing and impeller, with Technopolymer PA66+GF30 built-in ejector in the BGM-3, rated for liquid temperatures from -10°C to +40°C.
What electrical power and single-phase supply voltage operate this domestic jet pump?
Electrical connection for the BGM 3 specifies a 0.37 kW motor configuration on 220–240 V, 50 Hz, single-phase with a rated draw of 2.87 A, built with IP55 weatherproof motor enclosure with automatic reset thermal overload protection.
Where should this domestic pump with its integrated ejector be positioned on a horizontal base?
Horizontal surface mounting on a rigid foundation is advised for the BGM_3, utilizing its integrated ejector to maintain suction prime up to 8 meters.
What dynamic head elevation is produced by this residential self-priming pump?
Suction lift and pressure boosting duties are met by the BGM3, achieving a maximum dynamic head of approximately 38.9 m.
