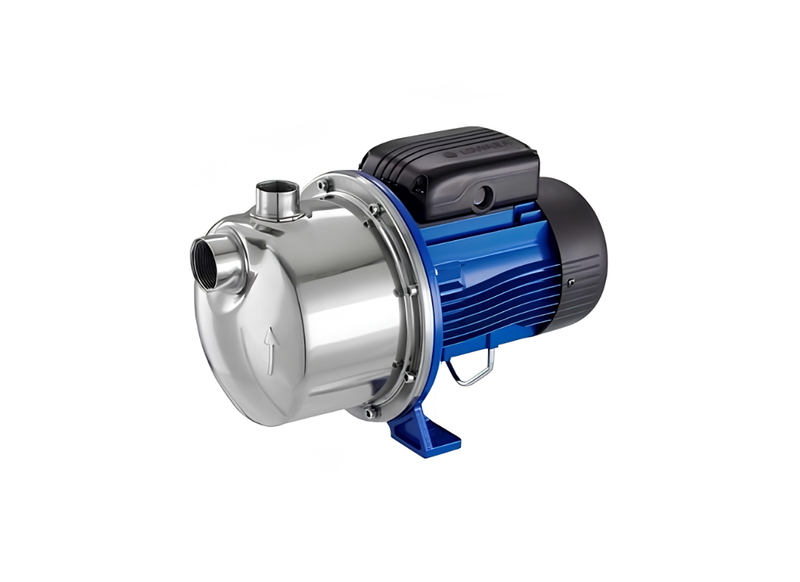

Lowara BGM9 Stainless Steel Compact Self-Priming Centrifugal Pump for Water Supply with EPDM Elastomers
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Designed for residential pressure boosting, rainwater handling, washing installations, and clean water transfer duties, the Lowara BGM9 delivers dependable self-priming hydraulic performance across domestic water supply environments. Its integrated ejector configuration assists with maintaining reliable priming operation in systems involving dissolved gases within transferred liquid.
Manufactured using stainless steel hydraulic components and stainless steel impeller construction, the BGM9 combines corrosion-resistant durability with efficient clean water handling performance across residential operating environments. The hydraulic platform shares the same operating family as the BG9 three-phase configuration, delivering flow rates up to 62.5 L/Min with maximum head performance up to 39.4 metres based on the highest non-zero operating point from the technical performance table.
The single-phase motor operates on 240v power supply and incorporates rated motor power (P2) of 0.90 kW according to identification and price list documentation. Its externally ventilated asynchronous motor design supports stable residential water transfer and continuous pressure boosting duties requiring dependable self-priming operation.
The BGM9 features 32 mm inlet and 25 mm outlet connections for integration into household water supply systems, residential pressure boosting installations, and rainwater transfer setups. Compact close-coupled hydraulic construction assists with installation flexibility across continuous clean water environments requiring reliable operating performance. Supplied with manufacturer warranty coverage for self-priming centrifugal pump applications.
Features
- Self-priming centrifugal pump with integrated ejector system
- Stainless steel hydraulic and impeller construction
- Single-phase motor configuration
- Designed for residential pressure boosting duties
- Supports continuous clean water transfer operation
- Reliable self-priming hydraulic performance
- Compact close-coupled pump construction
- Compatible with rainwater and washing installations
- Externally ventilated asynchronous motor design
- Suitable for household water supply systems
SPECIFICATIONS
| Max Flow | 62.5 L/Min |
| Max Head | 39.4 m |
| Power | 0.9 kW / 240v |
| Rated Current | 3.78 Amps |
| Suitable For | Residential Pressure Boosting |
| Body Material | Stainless Steel AISI 304 |
| Liquid Temperature | -10°C to +40°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Where is horizontal surface mounting recommended for this household pump with an integrated ejector?
Horizontal mounting in a dry, ventilated utility space is recommended for the BGM9, with its integrated ejector ensuring dependable priming.
What maximum elevation head can this single-stage water transfer pump achieve?
Delivering strong vertical elevation, the BGM-9 produces a maximum dynamic head of approximately 49.3 m across its curve.
What flow rate and connection thread dimensions apply to this domestic water pump?
Domestic and garden irrigation delivery utilizes the BGM 9, providing a maximum flow rate of approximately 85 L/Min via Rp 1-1/4" (32 mm) suction and Rp 1" (25 mm) discharge connections.
What materials safeguard the internal hydraulic construction of this self-priming unit?
Resistance against fluid corrosion and particulate wear is built into the BGM_9 through AISI 304 stainless steel casing and impeller, with Technopolymer PA66+GF30 built-in ejector, maintaining integrity across fluid temperatures from -10°C to +40°C.
What electrical power draw and supply voltage are engineered into this single-phase motor?
Driving the hydraulic assembly of the BGM9 mandates a 0.9 kW motor input on 220–240 V, 50 Hz, single-phase at 5.40 A, supported by IP55 weatherproof motor enclosure with automatic reset thermal overload protection.
