SKU: CA120/35N-V

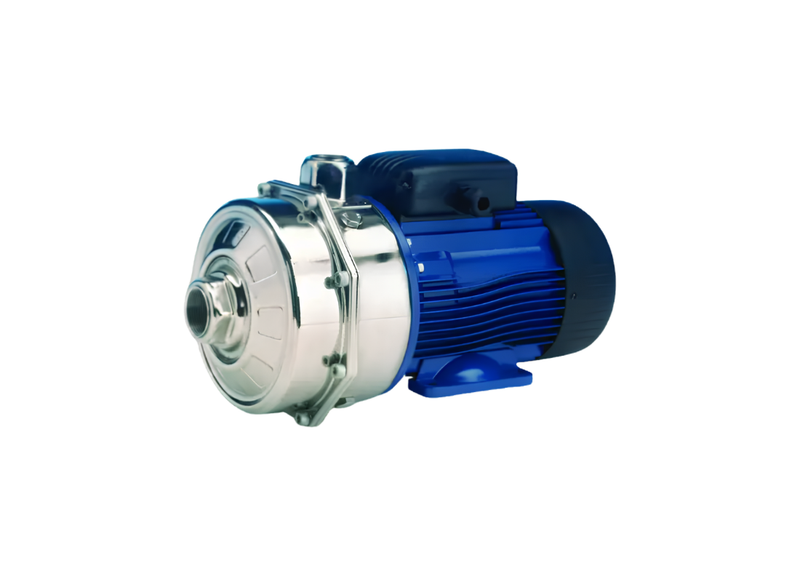

Lowara CA120/35N-V Stainless Steel Industrial Centrifugal Pump for Circulation with IP55 Motor Enclosure
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
This twin-impeller centrifugal pump is engineered for specialized industrial and commercial environments where fluid integrity is critical. Ideal for applications such as high-pressure industrial washing, wine production, and chemical liquid transfer, the unit manages demanding tasks with consistent pressure. It serves as a reliable solution for operations requiring the chemical resistance of high-grade stainless steel in corrosive or demineralized water environments.
The pump delivers flow rates up to approximately 150 L/Min, with maximum head performance reaching approximately 49.4 metres. Driven by a 1.5 kW three-phase motor, it ensures robust operation for sustained circulation duties. This system is designed to provide stable hydraulic output, making it effective for complex water handling workflows within industrial setups.
Constructed from AISI 316L stainless steel, the pump housing and impeller are designed for durability against aggressive agents. The configuration includes FPM elastomers and a specialized mechanical seal system, ensuring high-temperature resistance and compatibility with varied process fluids. Its close-coupled design allows for direct motor integration, promoting balanced mechanical alignment and vibration control.
Plumbing connections consist of a 32mm suction port and a 25mm outlet port, accommodating standard industrial piping configurations. The design includes condensate drain plugs as a standard feature to assist with climate-controlled installation maintenance. Operators should note that external thermal overload protection must be provided during installation, as this unit requires a user-configured control panel to ensure safe, continuous duty.
Features:
- High-grade AISI 316L stainless steel hydraulic and impeller construction
- FPM elastomer seals designed for elevated thermal handling
- Balanced close-coupled assembly for reduced mechanical stress
- Designed for chemical water handling and process liquid movement
- External asynchronous motor ventilation system for heat dissipation
- Threaded suction and discharge ports for standard installation
- IP55 protection rating for operation in diverse industrial sites
SPECIFICATIONS
| Max Flow | 150 L/Min |
| Max Head | 49.4 m |
| Power | 1.5 kW / 415v |
| Rated Current | 3.53 Amps |
| Suitable For | Industrial Washing and Chemical Circulation |
| Body Material | AISI 316L Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How do the dual stainless alloy impellers resist fluid corrosion and abrasive particulate wear?
Dual-impeller hydraulic longevity against corrosion is sustained through alloy metallurgy materials in the CA120/35N-V, featuring AISI 316L stainless steel casing and dual impellers, with specialized FPM (Viton) elastomers for aggressive fluids between -10°C to +110°C.
What motor kilowatt rating and three-phase electrical feed drive this industrial transfer unit?
Operating the three-phase motor on the CA120-35N-V requires a 1.5 kW feed across 380–415 V, 50 Hz, three-phase drawing 3.53 A, built with IP55 dust and water spray protection, Class F insulation.
What horizontal installation guidelines apply to this industrial transfer unit with an integrated layout?
Positioning in dry, ventilated utility spaces is specified for the CA 120 35N V, bolted securely to a level horizontal concrete foundation with integrated drainage.
What total dynamic head is produced by this dual-impeller industrial transfer unit?
Elevating fluids through steep industrial piping, the CA_120_35N_V attains a maximum dynamic head performance of approximately 54.0 m.
What delivery flow rate and pipe connection threads are featured on this industrial transfer unit?
Industrial water distribution tasks rely on the CA120/35N-V, which produces a maximum delivery flow of approximately 150 L/Min across its Rp 1-1/4" (32 mm) suction and Rp 1" (25 mm) discharge threads.
