SKU: CA70/34N-V

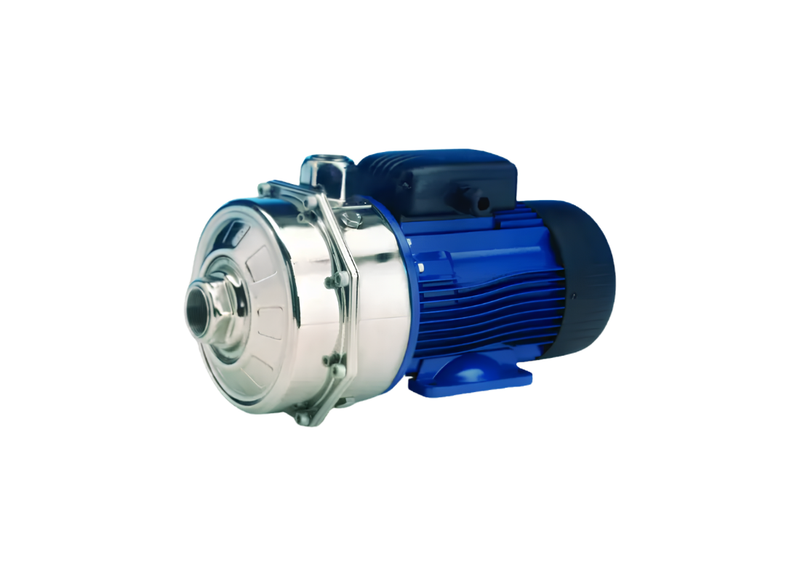

Lowara CA70/34N-V Stainless Steel Close-Coupled Centrifugal Pump for Process Water with FPM Elastomers
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Engineered for versatility across civil, industrial, and agricultural sectors, the Lowara CA 70/34N V is designed for systems requiring consistent flow and pressure. This twin-impeller centrifugal pump is optimized for the movement of chemically non-aggressive liquids, making it a reliable solution for water supply, irrigation networks, and specialized industrial circulation requirements.
The unit provides flow rates up to approximately 80 L/Min and demonstrates peak head performance reaching approximately 45.1 metres. Powered by a 0.9 kW three-phase motor, the pump maintains effective hydraulic output while ensuring compatibility with industrial 415v electrical installations. Its performance characteristics are engineered for stability in varied system configurations.
Construction centers on a close-coupled architecture featuring high-performance AISI 316L stainless steel components. The inclusion of FPM elastomers and a ceramic-carbon mechanical seal assembly ensures chemical resistance and operational longevity. The AISI 316L enclosed twin-impeller design serves to minimize turbulence and maintain hydraulic efficiency under continuous duty conditions.
Installation is facilitated by threaded 32mm suction and 25mm delivery ports, compliant with standard piping geometries. The pump includes external ventilation, IP55 protection for environmental safety, and integrated condensate drain plugs. Its back-pull-out capability allows for internal inspection or maintenance without decoupling the entire pump body from existing infrastructure.
Features:
- Equipped with FPM seals for enhanced chemical resilience
- AISI 316L stainless steel hydraulic construction
- Close-coupled design for compact mounting configurations
- Asynchronous squirrel cage motor with external fan cooling
- Certified IP55 ingress protection rating
- Threaded suction and discharge connections for simplified plumbing integration
SPECIFICATIONS
| Max Flow | 80 L/Min |
| Max Head | 45.1 m |
| Power | 0.9 kW / 415v |
| Rated Current | 2.37 Amps |
| Suitable For | Industrial and Civil Water Handling |
| Body Material | AISI 316L Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What horizontal mounting orientation and floor placement are recommended for this water supply unit?
Close-coupled horizontal surface placement is recommended for the CA70/34N-V, ensuring an integrated setup with adequate motor ventilation and drainage clearance.
What maximum dynamic elevation head does this twin-impeller water supply pump achieve?
Delivering dependable vertical elevation, the CA70-34N-V maintains a peak dynamic head of approximately 48.8 m across its performance curve.
What peak flow volume and suction discharge port dimensions apply to this water supply unit?
Commercial fluid circulation with the CA 70 34N V delivers a peak water flow rate of approximately 80 L/Min through Rp 1-1/4" (32 mm) suction and Rp 1" (25 mm) discharge connections.
How does the stainless alloy construction protect the dual impellers against aggressive fluid corrosion?
Chemical attack resistance against corrosion is engineered into the CA_70_34N_V via alloy metallurgy materials with AISI 316L stainless steel casing and dual impellers, with specialized FPM (Viton) elastomers, operating reliably across -10°C to +110°C up to 8 bar (PN 8).
What motor kilowatt power and three-phase electrical feed are required for this water supply unit?
Driving the rotating assembly of the CA70/34N-V relies on a 0.9 kW motor on 380–415 V, 50 Hz, three-phase drawing 2.37 A, featuring IP55 dust and water spray protection, Class F insulation.
