SKU: CA70/45N-V

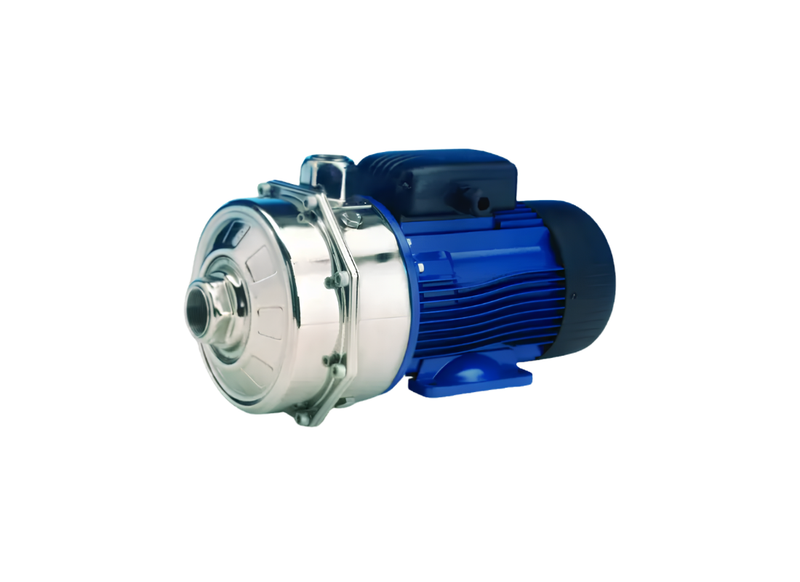

Lowara CA70/45N-V Stainless Steel Durable Centrifugal Pump for Irrigation with Condensate Drain Plugs
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
This three-phase twin-impeller pump is engineered for demanding industrial and commercial environments requiring high levels of durability. The CA 70/45N-V is particularly suited for industrial washing systems, reverse osmosis water treatment, and specialized thermal water circulation applications where corrosion resistance is essential.
The system provides impressive hydraulic performance, delivering flow rates reaching approximately 80 L/Min with head pressures up to approximately 52 metres. With a maximum motor power of 1.1 kW, this pump maintains efficiency across continuous duty cycles, ensuring consistent liquid movement for critical processing equipment.
Construction focuses on long-term reliability using premium AISI 316L stainless steel for the hydraulic components and FPM elastomers, making it compatible with more aggressive liquid compositions. The design utilizes a close-coupled asynchronous motor, ensuring a compact footprint while maintaining effective heat dissipation through external ventilation.
Installation is simplified through standard threaded ports, with a 32 mm suction and 25 mm outlet connection. The pump body is designed for straightforward maintenance, incorporating an FPM mechanical seal and condensation drain plugs to protect internal components against moisture accumulation during intermittent use.
Features:
- High-grade AISI 316L stainless steel hydraulic body and impeller
- FPM elastomer configuration for superior chemical compatibility
- Close-coupled motor design with IP55 protection rating
- Balanced twin-impeller arrangement for efficient pressure delivery
- Standardized Rp ISO 7 threaded port connections
- Integrated condensate drain plugs to prevent moisture buildup
SPECIFICATIONS
| Max Flow | 80 L/Min |
| Max Head | 52 m |
| Power | 1.1 kW / 415v |
| Rated Current | 2.83 Amps |
| Suitable For | Industrial washing, reverse osmosis, and thermal water handling |
| Body Material | AISI 316L Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What peak dynamic head is delivered by this dual-impeller cooling system pump?
Operating with dual opposing impellers, the CA70/45N-V produces a maximum dynamic head of approximately 56.2 m to overcome steep piping elevation.
What water flow delivery rate can this cooling system twin-impeller pump provide through its outlet?
Dual-impeller volume transfer is powered by the CA70-45N-V, delivering a maximum flow rate of approximately 80 L/Min through Rp 1-1/4" (32 mm) suction and Rp 1" (25 mm) discharge connections.
What materials ensure corrosion resistance and chemical durability in this twin-impeller cooling unit?
Corrosion defense in demanding industrial circuits is assured by alloy metallurgy materials in the CA 70 45N V, featuring AISI 316L stainless steel casing and dual impellers, with specialized FPM (Viton) elastomers, rated for fluid temperatures across -10°C to +110°C.
What three-phase supply voltage and electrical power rating operate this cooling system pump?
Supplying electricity to the CA_70_45N_V requires a 1.1 kW three-phase motor connection on 380–415 V, 50 Hz, three-phase pulling 2.83 A, engineered with IP55 dust and water spray protection, Class F insulation.
Where is horizontal surface mounting recommended for this cooling pump to maintain drainage clearance?
Dual opposing impellers in the CA70/45N-V balance hydraulic thrust when mounted on a rigid horizontal foundation base with an integrated setup and drainage.
