SKU: CAM120/55N-V

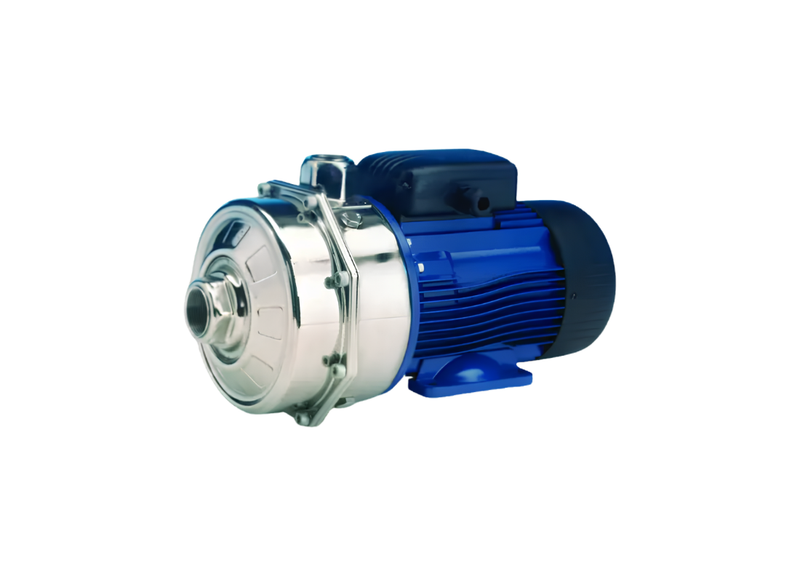

Lowara CAM120/55N-V Stainless Steel Robust Centrifugal Pump for Wash Systems with IP55 Motor Enclosure
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara CAM 120/55N-V is engineered for demanding industrial and chemical environments where process reliability and liquid integrity are essential. This twin-impeller centrifugal pump is specifically designed for complex fluid handling requirements, including thermal water circuits, industrial washing processes, and reverse osmosis systems utilizing demineralized water.
Built for robust performance, this pump delivers flow rates up to approximately 150 L/Min, with a maximum head performance reaching approximately 59.6 metres. The unit operates with a maximum power input of 2.54 kW at 240v, ensuring consistent pressure for sustained circulation and delivery applications across varied industrial sectors.
Construction relies on high-grade AISI 316L stainless steel for all wetted components, paired with FPM elastomer seals to ensure compatibility with aggressive or specialty liquids. The close-coupled asynchronous motor features external ventilation and IP55 protection, providing the necessary resilience for continuous operation in environments where traditional pumps might succumb to chemical wear.
Designed for streamlined installation, the unit features an inlet of 32 mm and an outlet of 25 mm, allowing for integration into standard piping infrastructures. The assembly incorporates a mounting pedestal located on the motor casing, while the back pull-out construction ensures that maintenance can be performed without necessitating the disconnection of the pump body from the primary pipework.
Features:
- AISI 316L stainless steel wetted components for chemical resilience
- FPM elastomer sealing configuration for diverse fluid compatibility
- Close-coupled twin-impeller design for increased head performance
- Integrated condensate drain plugs for motor maintenance
- External ventilation and IP55 protection rating
- Mounting pedestal for stability in industrial applications
- Threaded suction and discharge ports for connection versatility
SPECIFICATIONS
| Max Flow | 150 L/Min |
| Max Head | 59.6 m |
| Power | 2.54 kW / 240v |
| Rated Current | 11.5 Amps |
| Suitable For | Industrial Washing and Thermal Water Handling |
| Body Material | AISI 316L Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What dynamic elevation head do the dual impellers of this pump achieve during water distribution?
Operating with dual opposing impellers, the CAM120/55N-V produces a maximum dynamic head of approximately 63.8 m to overcome steep piping elevation.
What maximum water delivery flow and suction discharge port connections apply to this twin-impeller pump?
Dual-impeller volume transfer is powered by the CAM120-55N-V, delivering a maximum flow rate of approximately 180 L/Min through Rp 1-1/4" (32 mm) suction and Rp 1" (25 mm) discharge connections.
What construction metallurgy and mechanical seal materials protect this twin-impeller pump from corrosion?
Corrosion defense in demanding industrial circuits is assured by alloy metallurgy materials in the CAM 120 55N V, featuring AISI 316L stainless steel casing and dual impellers, with specialized FPM (Viton) elastomers, rated for fluid temperatures across -10°C to +110°C.
What electrical power input and single-phase supply voltage run this twin-impeller pump?
Powering the CAM_120_55N_V requires a 2.2 kW motor running on a 220–240 V, 50 Hz, single-phase power supply, drawing approximately 11.5 A with IP55 dust and water spray protection, Class F insulation.
Where is horizontal mounting recommended for this twin-impeller pump and how is drainage ensured?
Dual opposing impellers in the CAM120/55N-V balance hydraulic thrust when mounted on a rigid horizontal foundation base with an integrated setup and drainage.
