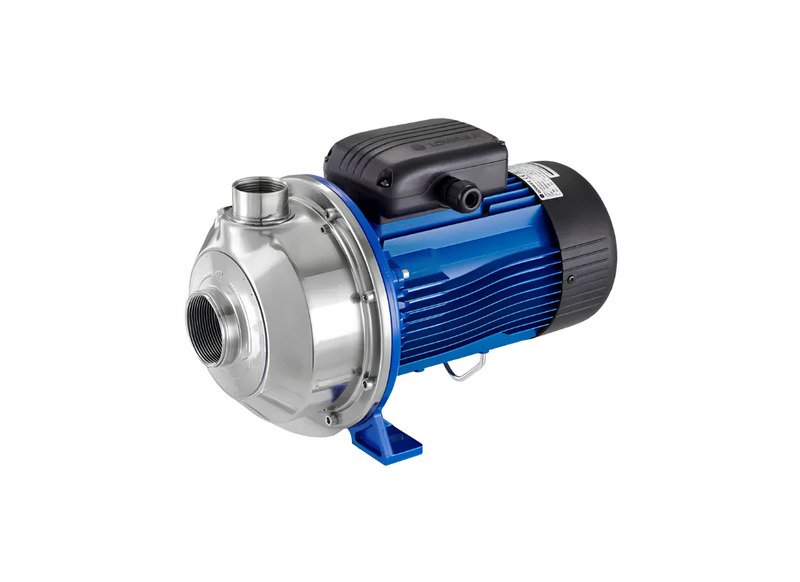

Lowara CEA 120/3V Stainless Steel Industrial Centrifugal Pump for Clean Liquid Transfer with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Engineered for demanding industrial and commercial applications, the Lowara CEA 120/3V excels in tasks requiring consistent clean water movement. This unit is specifically configured for users who need a persistent and reliable solution for water circulation systems, industrial washing setups, and diverse pressure boosting requirements where non-aggressive liquids are primarily handled.
The system delivers flow rates reaching up to approximately 160 L/Min, supported by a maximum head performance of approximately 18.9 metres. This hydraulic output is maintained through a close-coupled design featuring high-grade stainless steel components, ensuring efficient energy conversion and long-term consistency in demanding duty cycles.
Built upon a foundation of AISI 304 stainless steel hydraulic construction, the unit incorporates an enclosed impeller designed for stability and efficient flow management. The integration of FPM seal materials provides additional versatility, extending the operational temperature range compared to standard configurations, allowing for broader application in variable industrial environments.
Installation is facilitated by standard 32 mm suction and 25 mm discharge threaded connections. The motor is housed in a robust, externally ventilated enclosure compliant with IP55 protection standards, providing necessary resistance against external particles and environmental exposure common in industrial service areas.
Features:
- Constructed with high-grade AISI 304 stainless steel hydraulic components
- FPM mechanical seal version for wider fluid compatibility
- Enclosed impeller architecture for increased hydraulic efficiency
- Compact close-coupled motor and pump configuration
- IP55 environmental protection rating for the electric motor
- Optimized for continuous duty in clean water environments
- Threaded inlet and outlet ports for standardized plumbing installation
SPECIFICATIONS
| Max Flow | 160 L/Min |
| Max Head | 18.9 m |
| Power | 0.82 kW / 415v |
| Rated Current | 1.58 Amps |
| Suitable For | Clean Water Handling and Industrial Circulation |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum dynamic head does this commercial centrifugal pump produce?
Fluid elevation across facility systems relies on the CEA120/3V, which generates a peak dynamic head of approximately 22.4 m.
What maximum water discharge is produced by this centrifugal pump across its outlet?
Industrial washing and circulation circuits utilize the CEA120-3V, generating a maximum flow volume of approximately 160 L/Min via Rp 1-1/4" (32 mm) suction and Rp 1" (25 mm) discharge ports.
Which metallurgical alloy materials and elastomer seals protect this unit against chemical attack?
Internal corrosion and chemical attack are prevented by alloy metallurgy materials in the CEA 120 3V, featuring AISI 304 stainless steel casing and closed impeller, with specialized FPM (Viton) elastomers, accommodating demanding process liquids from -10°C to +110°C.
What electrical power and three-phase supply voltage drive this close-coupled pump?
Supplying electricity to the CEA_120_3V requires a 0.55 kW three-phase motor connection on 380–415 V, 50 Hz, three-phase pulling 1.58 A, engineered with IP55 weatherproof motor enclosure, Class F insulation.
How should this industrial circulation unit be positioned on a solid horizontal mounting base?
Securing the CEA120/3V on a flat horizontal foundation ensures vibration-free operation, featuring an integrated layout with proper clearance and drainage.
