SKU: CEA210/2V

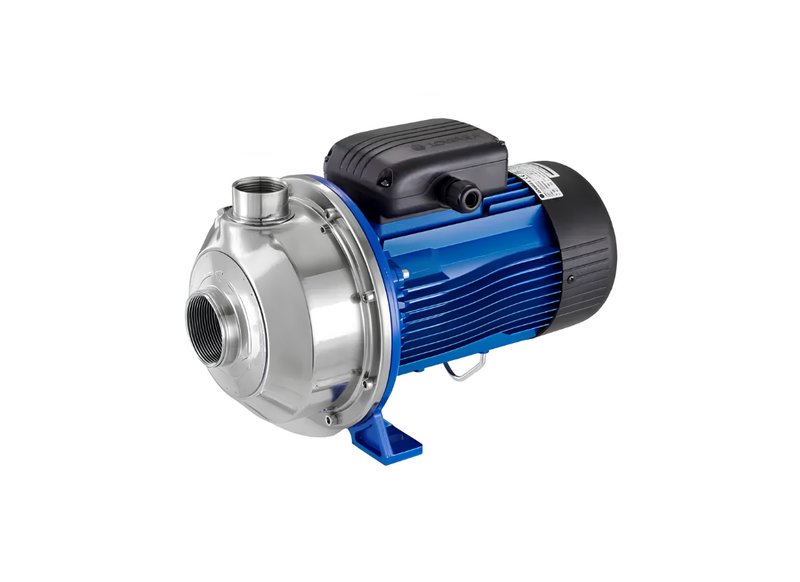

Lowara CEA 210/2V Stainless Steel Close-Coupled Centrifugal Pump for Liquid Handling with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
This stainless steel centrifugal pump is engineered for environments requiring reliable water movement, such as industrial water transfer, pressure boosting, and specialized washing applications. Designed as a close-coupled unit, it provides a compact solution for systems where space and operational efficiency are critical factors for fluid movement.
The unit delivers flow rates up to approximately 300 L/Min with maximum head performance reaching approximately 16.5 metres. The hydraulic architecture is built to handle clean liquids across a temperature range of -10°C to +110°C, ensuring versatility across varied temperature-controlled systems and general utility applications.
Construction consists of high-grade AISI 304 stainless steel for the pump body, diffuser, and seal housing, paired with a specialized FPM mechanical seal for increased chemical resistance. The motor is a three-phase asynchronous, squirrel cage design with external ventilation, meeting stringent efficiency standards for continuous operation.
Plumbing integration is handled via 40mm suction and 32mm discharge ports, allowing for straightforward installation into existing hydraulic configurations. The design features a counter-clockwise rotation when viewed from the suction side, with an IP55 protection class ensuring the electrical components remain shielded in diverse operational environments.
Features:
- Constructed from AISI 304 stainless steel for long-term corrosion resistance
- FPM elastomer configuration for expanded fluid compatibility
- Close-coupled design minimizes installation footprint
- IP55 rated enclosure for protected electrical operation
- Asynchronous squirrel cage motor with external ventilation
- Rated for fluid temperatures up to 110°C
- Designed for high-efficiency continuous duty cycles
SPECIFICATIONS
| Max Flow | 300 L/Min |
| Max Head | 16.5 m |
| Power | 1.04 kW / 415v |
| Rated Current | 1.86 Amps |
| Suitable For | Clean Water Handling |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 40 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What materials safeguard the internal wet end alloy construction of this centrifugal pump?
Chemical and thermal compatibility is engineered into the CEA210/2V through alloy metallurgy materials with AISI 304 stainless steel casing and closed impeller, with specialized FPM (Viton) elastomers, preventing corrosion across temperatures from -10°C to +110°C.
What three-phase supply voltage and electrical power rating are specified for this pump?
Operating the three-phase motor on the CEA210-2V requires a 0.75 kW feed across 380–415 V, 50 Hz, three-phase drawing 1.86 A, built with IP55 weatherproof motor enclosure, Class F insulation.
Where should this horizontal centrifugal unit be sited to ensure proper drainage and stability?
Positioning on a rigid horizontal surface in ventilated spaces protects the CEA 210 2V from weather exposure while maintaining an integrated base and proper drainage.
What total dynamic head does this close-coupled industrial unit deliver?
Overcoming elevation resistance across facility piping, the CEA_210_2V delivers a maximum dynamic head of approximately 17.7 m.
What peak delivery flow volume does this centrifugal water pump provide through its outlet?
Piping transfer duties are powered by the CEA210/2V, which discharges a maximum flow volume of approximately 250 L/Min with Rp 1-1/2" (40 mm) suction and Rp 1-1/4" (32 mm) discharge ports.
