SKU: CEA210/3V

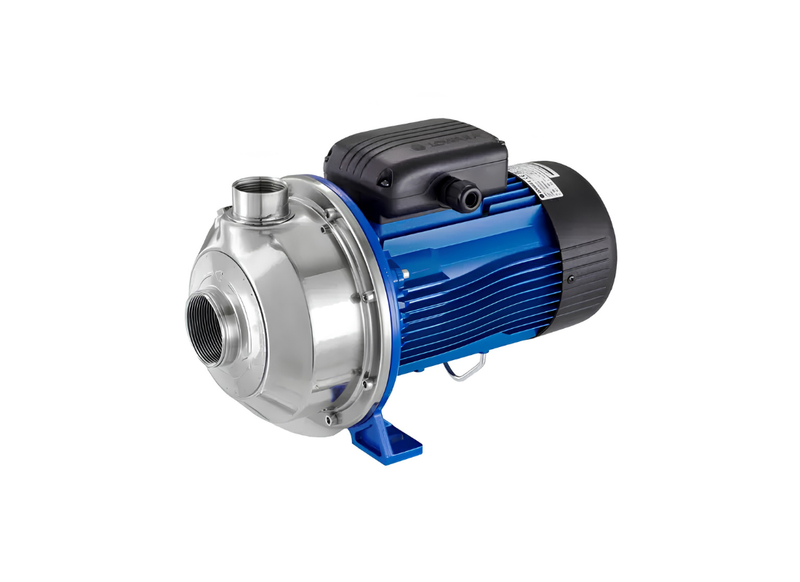

Lowara CEA 210/3V Stainless Steel Versatile Centrifugal Pump for Cooling Systems with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara CEA 210/3V is engineered to meet the demanding requirements of industrial water circulation and transfer duties. By utilizing a close-coupled, single-impeller design, this pump addresses the need for a compact, durable unit capable of managing clean water efficiently in diverse commercial settings.
Operating with precision, the unit provides flow rates up to approximately 300 L/Min and head performance reaching approximately 19.7 metres. Driven by a 1.35 kW motor, it ensures consistent movement of fluid across demanding operational cycles.
Construction relies on high-grade AISI 304 stainless steel for the pump body, diffuser, and impeller, ensuring maximum structural integrity and liquid compatibility. The pump features an FPM mechanical seal, which enhances resilience when handling specific liquid temperatures up to 110°C, providing long-term reliability in high-intensity applications.
Designed for streamlined integration, the pump includes a 40 mm suction inlet and a 32 mm discharge outlet. The three-phase asynchronous motor configuration permits effective installation in permanent industrial architectures where a high-efficiency power source is readily available.
Features:
- AISI 304 stainless steel hydraulic components for extended operational life
- FPM mechanical seal version suitable for higher temperature handling
- Close-coupled design for space-efficient integration in plant rooms
- Three-phase asynchronous motor with external ventilation
- Wide liquid temperature tolerance range up to 110°C
- Threaded suction and discharge connections for simplified plumbing
SPECIFICATIONS
| Max Flow | 300 L/Min |
| Max Head | 19.7 m |
| Power | 1.35 kW / 415v |
| Rated Current | 2.45 Amps |
| Suitable For | Industrial Water Handling |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 40 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What kilowatt power and three-phase supply voltage must be connected to this industrial motor?
Electrical parameters for running the CEA210/3V specify a 1.1 kW drive on 380–415 V, 50 Hz, three-phase with a nominal current of 2.45 A and IP55 weatherproof motor enclosure, Class F insulation.
How should this industrial pump be anchored to a horizontal foundation in equipment rooms?
Horizontal surface installation in dry commercial utility spaces is recommended for the CEA210-3V, providing an integrated setup and proper floor drainage.
What maximum elevation head is achieved by this heavy-duty centrifugal pump?
Hydraulic pressure elevation in industrial loops is driven by the CEA 210 3V, which yields a maximum dynamic head of approximately 20.8 m.
What water flow capacity and discharge pipe dimensions apply to this commercial pump?
Industrial liquid circulation relies on the CEA_210_3V, producing a peak delivery flow of approximately 250 L/Min via Rp 1-1/2" (40 mm) suction and Rp 1-1/4" (32 mm) discharge threads.
Which metallurgy and mechanical seal materials deliver thermal endurance against chemical attack?
Long-term fluid circulation reliability against corrosion relies on alloy metallurgy materials in the CEA210/3V, featuring AISI 304 stainless steel casing and closed impeller, with specialized FPM (Viton) elastomers for fluid temperatures from -10°C to +110°C.
