SKU: CEA210/5V

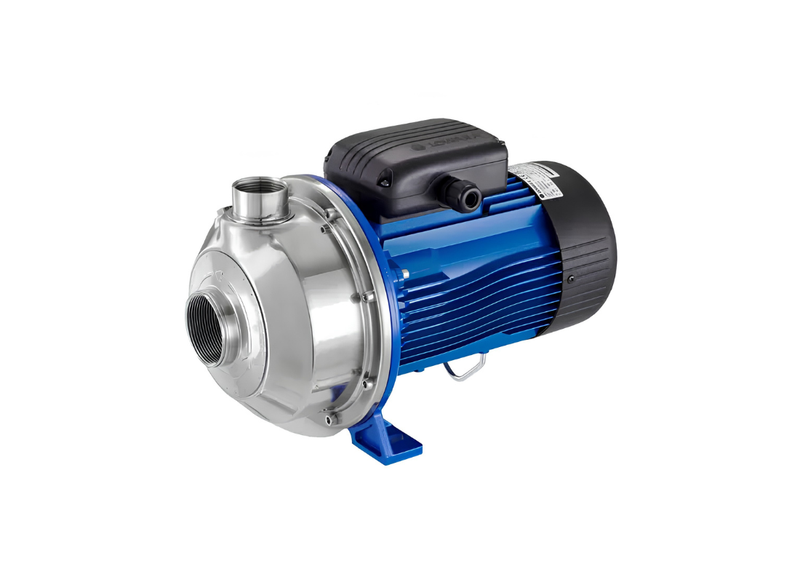

Lowara CEA 210/5V Stainless Steel Heavy-Duty Centrifugal Pump for Irrigation Supply with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara CEA 210/5V serves as a specialized solution for industrial water handling, pressure boosting, and circulation tasks where reliability and hygiene are paramount. Engineered for continuous duty, this pump is suited for facilities requiring consistent flow for cooling systems, washing processes, or general water distribution where the high-grade materials ensure operational longevity.
Designed for precision, the unit provides flow rates up to approximately 300 L/Min and head performance reaching approximately 28.2 metres. The stainless steel construction combined with the FPM (Viton) mechanical seal allows the pump to handle liquids across a temperature range of -10°C to +110°C, providing increased chemical resistance for varied applications.
Built with an AISI 304 stainless steel impeller, the pump benefits from a close-coupled construction that minimizes energy loss and maintains structural integrity under load. It is driven by an asynchronous, external-ventilation motor, ensuring efficient thermal management during extended periods of operation in demanding, high-demand hydraulic circuits.
Installation is facilitated by standard threaded 40 mm inlet and 32 mm outlet connections, allowing for integration into existing pipework systems. The IP55-rated motor housing provides protection against dust and moisture, ensuring that the unit remains effective even when placed in environments where incidental water exposure or ambient dust levels are present.
Features:
- High-grade AISI 304 stainless steel hydraulic assembly
- FPM (Viton) seal configuration for elevated liquid temperatures
- Close-coupled design for minimized mechanical footprint
- Compatible with IE3 high-efficiency motor standards
- External asynchronous cooling for sustained operation
- Integrated 40 mm suction and 32 mm discharge connections
- Counter-clockwise rotation when viewed from suction side
SPECIFICATIONS
| Max Flow | 300 L/Min |
| Max Head | 28.2 m |
| Power | 2.2 kW / 415v |
| Rated Current | 4.24 Amps |
| Suitable For | Industrial Water Handling |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 40 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What peak dynamic head is produced by this close-coupled centrifugal water pump?
Elevating liquids across factory pipe networks, the CEA210/5V develops a peak dynamic head of approximately 29.0 m under rated speed.
What peak water delivery rate is supported by this industrial centrifugal pump?
Bulk liquid transfer is accomplished by the CEA210-5V, providing a peak flow delivery of approximately 250 L/Min across its Rp 1-1/2" (40 mm) suction and Rp 1-1/4" (32 mm) discharge connections.
What construction materials allow this process pump to manage hot fluid corrosion?
Aggressive fluid management without corrosion relies on alloy metallurgy materials in the CEA 210 5V, featuring AISI 304 stainless steel casing and closed impeller, with specialized FPM (Viton) elastomers to resist chemical attack from -10°C to +110°C.
What motor kilowatt rating and three-phase electrical feed drive this centrifugal unit?
Supplying electricity to the CEA_210_5V requires a 2.2 kW three-phase motor connection on 380–415 V, 50 Hz, three-phase pulling 4.24 A, engineered with IP55 weatherproof motor enclosure, Class F insulation.
Where is equipment room installation recommended for this process pump on a horizontal base?
Ventilated utility room placement is recommended for the CEA210/5V, securing the pump horizontally on a level floor foundation with proper drainage.
