SKU: CEA370/2V

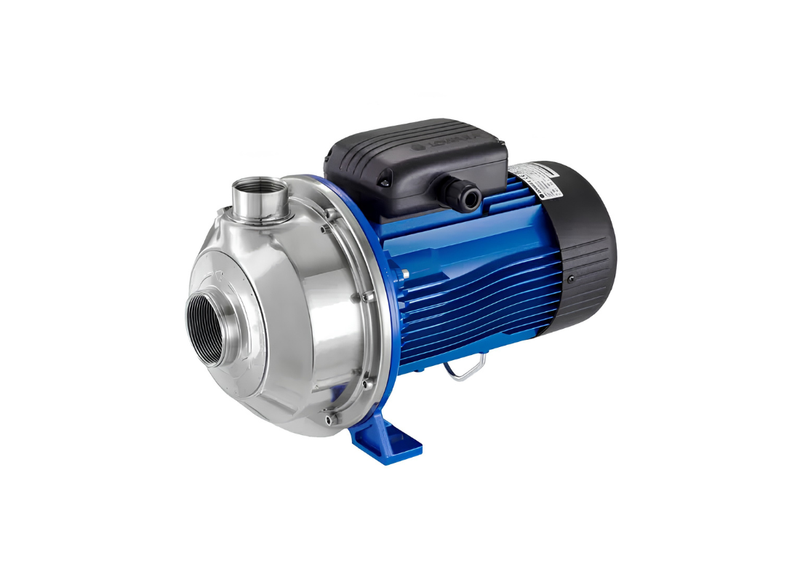

Lowara CEA 370/2V Stainless Steel Horizontal Centrifugal Pump for Cooling Systems with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Engineered for demanding professional environments, the Lowara CEA 370/2V serves as a high-efficiency solution for industrial water movement, circulation systems, and agricultural supply requirements. By integrating a close-coupled centrifugal design, this pump provides a stable hydraulic output suitable for continuous operation in both fixed-installation scenarios and pressurized distribution networks.
The unit provides a flow capacity reaching up to approximately 480 L/Min, supported by a maximum head performance of approximately 19.1 metres. Operating with a power draw of 1.95 kW, this three-phase model features a robust motor design intended for sustained service, ensuring reliable hydraulic performance across varying demand cycles in clean water applications.
Construction excellence remains central to the CEA series, utilizing AISI 304 stainless steel throughout the pump body, diffuser, and impeller. This material selection ensures compatibility with a broad range of treated water types. The inclusion of the 'V' version designation signifies upgraded FPM seal components, extending the operational temperature tolerance up to 110°C, providing increased flexibility for diverse liquid handling tasks.
Installation is facilitated via 50 mm suction and 32 mm discharge ports, allowing for straightforward integration into existing pipework infrastructure. The motor is encased in an IP55-rated housing, protecting internal components from external moisture and dust exposure, while the external ventilation system maintains thermal balance during peak demand, supporting long-term durability in varied professional installations.
Features:
- Constructed with AISI 304 stainless steel hydraulics
- Equipped with specialized FPM mechanical seals
- Suitable for high-temperature liquid circulation up to 110°C
- Designed with a reliable close-coupled asynchronous motor
- IP55 environmental protection for varied site conditions
- Optimized flow geometry for efficient water distribution
- Engineered for continuous duty in professional applications
SPECIFICATIONS
| Max Flow | 480 L/Min |
| Max Head | 19.1 m |
| Power | 1.95 kW / 415v |
| Rated Current | 3.43 Amps |
| Suitable For | Clean Water Handling |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 50 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the metallurgy of the hydraulic design resist fluid corrosion and chemical attack?
Industrial durability and chemical corrosion defense are delivered by alloy metallurgy materials in the CEA370/2V, featuring AISI 304 stainless steel casing and closed impeller, with specialized FPM (Viton) elastomers across fluid temperatures from -10°C to +110°C.
What electrical power and three-phase supply voltage are required to run this pump?
Operating the three-phase motor on the CEA370-2V requires a 1.5 kW feed across 380–415 V, 50 Hz, three-phase drawing 3.43 A, built with IP55 weatherproof motor enclosure, Class F insulation.
What horizontal surface placement conditions are recommended for this industrial centrifugal unit?
Equipment room mounting on a level horizontal foundation is specified for the CEA 370 2V, providing an integrated setup with stable operation and drainage.
What total dynamic head does this large industrial centrifugal pump generate?
Circulation across cooling and wash systems is powered by the CEA_370_2V, which achieves a peak dynamic head of approximately 20.4 m.
What maximum water volume does this industrial centrifugal pump discharge through its outlet?
Fluid circuits connect directly to Rp 2" (50 mm) suction and Rp 1-1/4" (32 mm) discharge suction and discharge ports, through which the CEA370/2V delivers a peak flow rate of approximately 450 L/Min.
