SKU: CEA370/5V

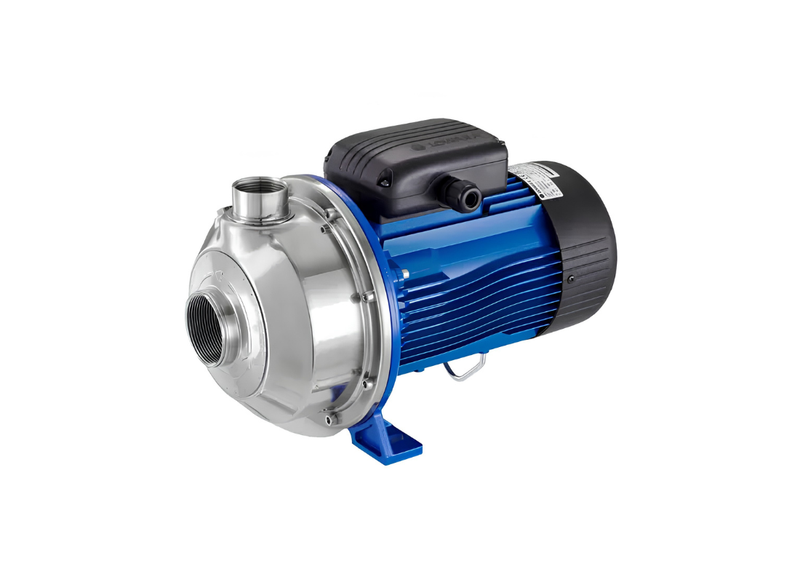

Lowara CEA 370/5V Stainless Steel High-Flow Centrifugal Pump for Process Water with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara CEA 370/5V is a high-performance three-phase centrifugal pump designed for demanding industrial applications requiring consistent flow and reliable fluid handling. This unit is suited for demanding water distribution circuits, industrial washing processes, and cooling systems where corrosion resistance is essential for long-term operational success.
Engineering specifications for this unit support a maximum flow rate of approximately 520 L/Min, with pressure performance capable of reaching a maximum head of approximately 28.3 metres. Designed for versatility in high-demand environments, the pump operates efficiently under a maximum working pressure of 8 bar and maintains stable performance across varying fluid requirements.
Construction highlights include a full AISI 304 stainless steel hydraulic assembly, providing a lightweight yet rigid structure that resists oxidative wear. The design utilizes an enclosed impeller profile to optimize hydraulic efficiency, paired with FPM elastomers to handle broader temperature ranges and varying liquid compositions typical of professional and industrial process environments.
Installation is streamlined through standard threaded suction and discharge ports, featuring 50mm inlet and 32mm outlet connections. The asynchronous motor is built for continuous duty, featuring an IP55 protection rating and external ventilation, ensuring the motor casing remains cool even during extended operation in restrictive enclosures.
Features:
- Integrated AISI 304 stainless steel hydraulic casing for improved longevity
- FPM elastomer seals designed for elevated temperature fluid handling
- Close-coupled architecture reduces overall footprint for compact installations
- Asynchronous motor with IP55 protection for moisture and particulate resistance
- Specifically engineered for high-volume industrial circulation duties
- Versatile piping connections with 50mm suction and 32mm discharge ports
SPECIFICATIONS
| Max Flow | 520 L/Min |
| Max Head | 28.3 m |
| Power | 3.26 kW / 415v |
| Rated Current | 5.86 Amps |
| Suitable For | Industrial Water Handling |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 50 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How should this large industrial unit be secured on a rigid horizontal mounting base?
Close-coupled horizontal mounting on a rigid base is specified for the CEA370/5V, installed with an integrated setup requiring adequate ambient ventilation and proper drainage.
What maximum dynamic head is developed by this close-coupled industrial pump?
Circulating process liquids through piping systems, the CEA370-5V produces a maximum dynamic head rating of approximately 30.3 m.
What peak flow capacity does this large industrial centrifugal pump provide through its discharge port?
Commercial circulation systems receive a maximum delivery flow of approximately 520 L/Min from the CEA 370 5V with Rp 2" (50 mm) suction and Rp 1-1/4" (32 mm) discharge connections.
How do the superior stainless alloy materials safeguard this heavy-capacity pump against corrosion?
Hydraulic longevity in chemical and thermal circulation is provided by alloy metallurgy materials in the CEA_370_5V, resisting fluid corrosion across temperatures from -10°C to +110°C.
What three-phase supply voltage and electrical power rating drive this heavy pump?
Driving the rotating assembly of the CEA370/5V relies on a 3.0 kW motor on 380–415 V, 50 Hz, three-phase drawing 5.86 A, featuring IP55 weatherproof motor enclosure, Class F insulation.
