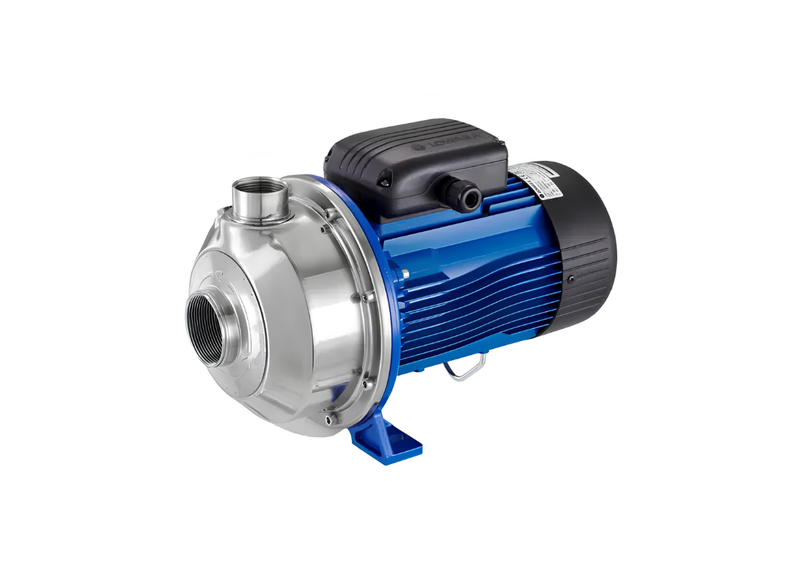

Lowara CEA 70/3V Stainless Steel Close-Coupled Centrifugal Pump for Irrigation with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Designed for demanding industrial environments and professional water distribution networks, the Lowara CEA70/3V offers a compact, reliable solution for moving clean liquids. This close-coupled centrifugal unit is engineered for systems requiring steady performance, making it a suitable choice for wash-down stations, irrigation setups, and general fluid transfer where space is limited but durability is essential.
The unit operates with a maximum flow rate of approximately 80 L/Min and achieves a maximum head performance of approximately 20.1 metres. Powered by a three-phase motor with a maximum power of 0.61 kW, the pump is built for consistent output. Its hydraulic design ensures efficient liquid movement across a wide operating range, supporting demanding site requirements.
Construction highlights include an AISI 304 stainless steel pump body, diffuser, and an enclosed impeller, providing high resistance to corrosion. The inclusion of FPM (V) seal materials enhances the unit's compatibility with diverse liquid types. The motor is an asynchronous, squirrel-cage design with external ventilation, rated IP55 for reliable protection in professional settings.
Installation is simplified through standard threaded suction and discharge ports, featuring a 32mm inlet and 25mm outlet. The pump™s orientation should be managed according to the counter-clockwise rotation requirement when viewed from the suction side. With a total weight of 9.7 kg, the unit balances portability with the structural integrity expected of stainless steel hydraulic components.
Features:
- AISI 304 stainless steel hydraulic construction
- FPM (V-version) mechanical seal assembly
- Close-coupled, three-phase motor configuration
- Compact footprint for integration into restricted spaces
- IP55 protection class for secure outdoor or indoor placement
- Asynchronous motor with external cooling fan
SPECIFICATIONS
| Max Flow | 80 L/Min |
| Max Head | 20.1 m |
| Power | 0.61 kW / 415v |
| Rated Current | 1.45 Amps |
| Suitable For | Industrial Water Handling |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What construction metallurgy and mechanical seal materials are built into this unit to stop corrosion?
Corrosion resistance across hot liquid transfer is assured by alloy metallurgy materials in the CEA70/3V, featuring AISI 304 stainless steel casing and closed impeller, with specialized FPM (Viton) elastomers, rated for fluid temperatures from -10°C to +110°C up to 8 bar (PN 8).
What electrical power and three-phase supply voltage are required for this pump?
Operating the three-phase motor on the CEA70-3V requires a 0.37 kW feed across 380–415 V, 50 Hz, three-phase drawing 1.45 A, built with IP55 weatherproof motor enclosure, Class F insulation.
Where should this industrial centrifugal pump be installed on a horizontal mounting foundation?
Surface floor mounting on a horizontal rigid base is recommended for the CEA 70 3V, installed with an integrated layout in a dry, well-ventilated utility area with proper drainage.
What dynamic elevation head does this industrial centrifugal pump achieve?
Delivering dependable fluid elevation, the CEA_70_3V achieves a maximum dynamic head of approximately 22.0 m across its operating envelope.
What maximum flow rate and suction discharge connection threads are built into this pump?
Process liquid transfer is driven by the CEA70/3V, delivering a peak flow rate of approximately 80 L/Min via Rp 1-1/4" (32 mm) suction and Rp 1" (25 mm) discharge ports.
