Roll over image to zoom
SKU: CEA70/5V

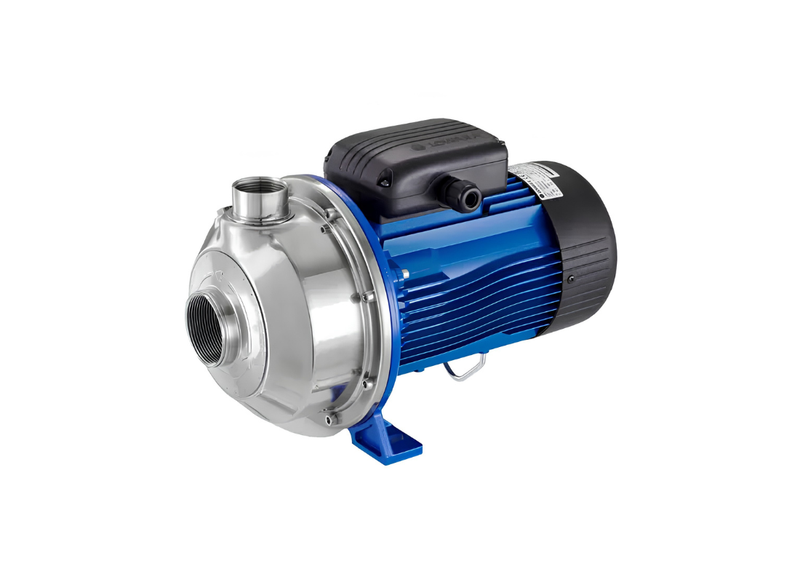

Lowara CEA 70/5V Stainless Steel Efficient Centrifugal Pump for Process Water with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara CEA 70/5V is a high-performance three-phase centrifugal pump designed for technical applications where fluid movement and system pressure reliability are required. It serves as an optimal solution for industrial water handling and circulation, providing a consistent flow for installations requiring stainless steel contact points to prevent degradation.
Equipped for demanding service, this unit achieves flow rates up to approximately 80 L/Min with maximum head performance reaching approximately 28.8 metres. The internal architecture uses a robust AISI 304 stainless steel construction, ensuring structural integrity during continuous water transfer operations.
Engineered with a close-coupled design, the pump features an asynchronous motor with external ventilation to maintain thermal stability. The system incorporates an enclosed impeller configuration crafted from high-grade stainless steel to optimize hydraulic efficiency while minimizing resistance across the transfer path.
Installation is facilitated by threaded suction and discharge ports, featuring a 32mm inlet and 25mm outlet. Designed for environments requiring FPM seal performance, this pump is suited for varied clean water duties, supported by an IP55 protection rating and class F insulation.
Features:
- AISI 304 stainless steel liquid-contact components
- Close-coupled motor assembly with external cooling
- Optimized for high-efficiency clean water circulation
- Robust FPM mechanical seal configuration
- Threaded connection ports for standardized plumbing
- IP55 rated enclosure for protected operation
- Balanced enclosed impeller for consistent hydraulic flow
SPECIFICATIONS
| Max Flow | 80 L/Min |
| Max Head | 28.8 m |
| Power | 0.88 kW / 415v |
| Rated Current | 1.65 Amps |
| Suitable For | Industrial Water Handling |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What motor kilowatt rating and three-phase electrical feed run this centrifugal unit?
Electrical parameters for running the CEA70/5V specify a 0.55 kW drive on 380–415 V, 50 Hz, three-phase with a nominal current of 1.65 A and IP55 weatherproof motor enclosure, Class F insulation.
What horizontal mounting orientation and floor positioning are recommended for this close-coupled unit?
Close-coupled horizontal mounting on a rigid base is specified for the CEA70-5V, installed with an integrated setup requiring adequate ambient ventilation and proper drainage.
What peak dynamic head can this close-coupled centrifugal unit develop?
Circulating process liquids through piping systems, the CEA 70 5V produces a maximum dynamic head rating of approximately 31.1 m.
What peak water flow can this industrial centrifugal unit deliver through its discharge port?
Commercial circulation systems receive a maximum delivery flow of approximately 80 L/Min from the CEA_70_5V with Rp 1-1/4" (32 mm) suction and Rp 1" (25 mm) discharge connections.
How do the stainless alloy materials and specialized seals withstand thermal fluid attack?
Hydraulic longevity in chemical and thermal circulation is provided by alloy metallurgy materials in the CEA70/5V, resisting fluid corrosion across temperatures from -10°C to +110°C.
