SKU: CEAM120/3V

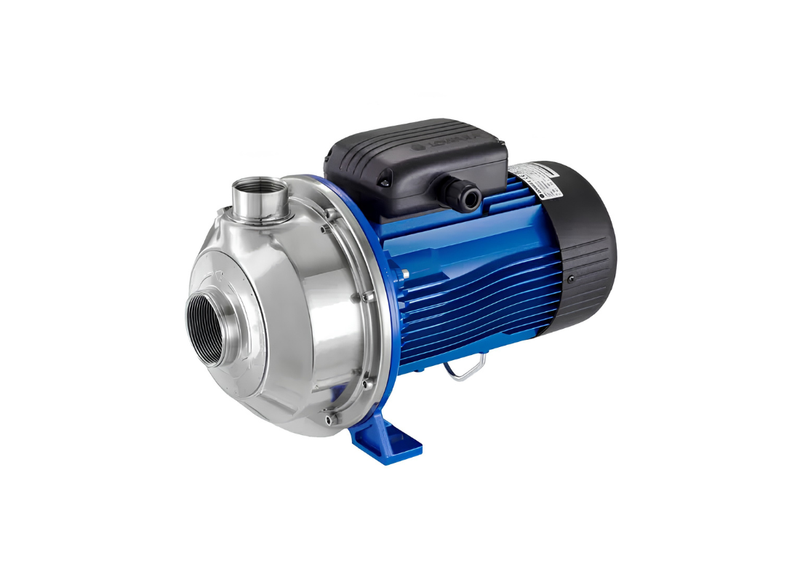

Lowara CEAM 120/3V Stainless Steel End-Suction Centrifugal Pump for Industrial Circulation with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara CEAM 120/3V is a versatile single-impeller centrifugal pump engineered for reliable clean water handling across residential and light commercial water distribution systems. Designed to operate effectively in continuous duty cycles, this unit is particularly suited for applications requiring consistent flow and pressure stability, such as irrigation networks or industrial washing stations.
Engineered for optimal hydraulic performance, this pump delivers flow rates up to approximately 160 L/Min, with maximum head pressure reaching approximately 18.9 metres. The integration of high-grade AISI 304 stainless steel in its hydraulic components ensures excellent resistance to corrosion, while the FPM version seal configuration offers enhanced chemical compatibility for more demanding liquid handling tasks.
Built on the robust CEA series platform, the pump features a close-coupled motor assembly with external ventilation and a squirrel-cage rotor for efficient energy use. The internal hydraulic geometry is precisely balanced to reduce turbulence, while the inclusion of an enclosed AISI 304 stainless steel impeller maximizes conversion of mechanical power into consistent hydraulic output.
Installation is simplified through the inclusion of threaded suction and discharge ports, specifically an inlet of 32 mm and an outlet of 25 mm. The compact 11.5 kg frame allows for flexible mounting within tight utility spaces, while the IP55-rated protection ensures the motor remains shielded against dust and moisture ingress, supporting long-term durability in varied environments.
Features:
- Constructed with AISI 304 stainless steel hydraulic components for extended operational life
- FPM version mechanical seal provides increased chemical resistance for specialized applications
- Close-coupled motor design promotes energy efficiency and reliable continuous operation
- Compact footprint allows for versatile placement in residential or utility settings
- Engineered with a counter-clockwise rotation orientation for optimized flow delivery
- Asynchronous motor configuration features IP55 protection against environmental debris
- Threaded 32 mm suction and 25 mm discharge ports facilitate straightforward plumbing integration
SPECIFICATIONS
| Max Flow | 160 L/Min |
| Max Head | 18.9 m |
| Power | 0.91 kW / 240v |
| Rated Current | 4.33 Amps |
| Suitable For | Water Distribution and Irrigation |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What single-phase supply voltage and electrical current draw operate this pump?
Energy supply requirements for the CEAM120/3V specify a 0.55 kW motor powered by 220–240 V, 50 Hz, single-phase pulling 4.33 A, incorporating IP55 weatherproof motor enclosure with automatic thermal overload protection.
Where is horizontal surface mounting recommended for this centrifugal pump in dry utility areas?
Installation on a level horizontal floor in sheltered plant rooms is recommended for the CEAM120-3V, incorporating an integrated foundation design and proper drainage.
What total dynamic elevation head is produced by this close-coupled water pump?
Operating across water transfer duties, the CEAM 120 3V maintains a maximum dynamic head capability of approximately 22.4 m under full load.
What flow rate and pipe connection sizes are designed into this centrifugal unit?
Fluid distribution networks rely on the CEAM_120_3V, achieving a peak water flow rate of approximately 160 L/Min through Rp 1-1/4" (32 mm) suction and Rp 1" (25 mm) discharge threads.
What materials are utilized in the casing and impeller construction to withstand aggressive chemical attack?
Fluid pathway metallurgy against corrosion is maintained through stainless alloy materials with AISI 304 stainless steel casing and closed impeller, with specialized FPM (Viton) elastomers in the CEAM120/3V, which withstands elevated fluid temperatures from -10°C to +110°C.
