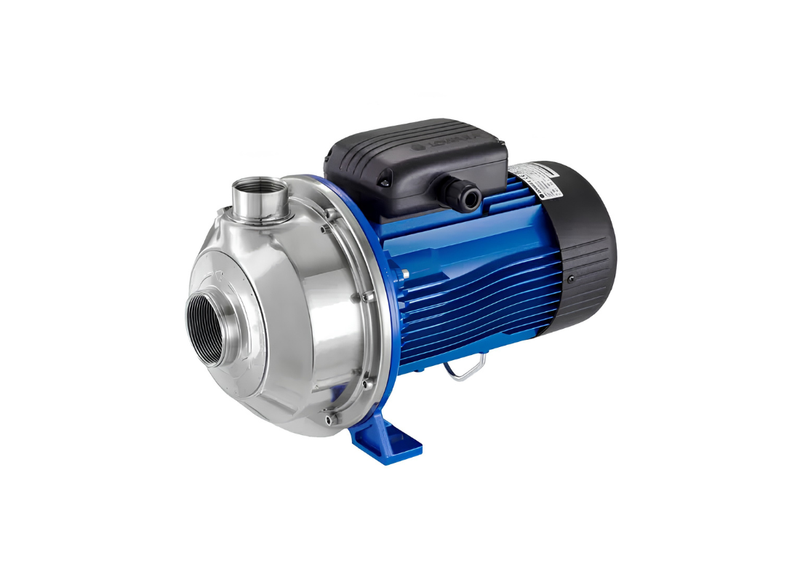

Lowara CEAM 120/5V Stainless Steel Single-Phase Centrifugal Pump for Irrigation Supply with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara CEAM 120/5V is a high-performance single-phase centrifugal pump engineered for demanding clean water transfer and pressure boosting tasks in residential or commercial irrigation systems. Its close-coupled design ensures a compact footprint while maintaining the fluid dynamics required for consistent water supply across a variety of utility applications.
Operating with an input power of 1.39 kW, this unit provides flow rates up to approximately 160 L/Min and head performance reaching approximately 28.2 metres. The pump delivers efficient circulation through its precision-engineered stainless steel hydraulic components, designed to withstand continuous operation in various climate conditions.
Constructed from AISI 304 stainless steel, the pump body and internal components benefit from excellent corrosion resistance. The unit incorporates an enclosed stainless steel impeller and FPM sealing materials, ensuring long-term integrity when handling clean liquids within a temperature range of -10°C to +110°C.
Installation is streamlined with 32mm suction and 25mm discharge ports. The electric motor is protected by an IP55 enclosure, shielding the system from dust and water spray. Integrated automatic reset overload protection provides an additional layer of security, making it suitable for set-and-forget agricultural and water distribution environments.
Features:
- AISI 304 stainless steel pump casing and diffuser construction
- Close-coupled squirrel cage asynchronous motor design
- IP55 environmental protection rating for external installation
- FPM seal configuration for high-temperature fluid handling
- Automated thermal overload protection for single-phase operation
- Threaded ISO 7 compliant suction and discharge connections
SPECIFICATIONS
| Max Flow | 160 L/Min |
| Max Head | 28.2 m |
| Power | 1.39 kW / 240v |
| Rated Current | 6.24 Amps |
| Suitable For | Clean Water Transfer and Pressure Boosting |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How should this close-coupled centrifugal unit be secured on a horizontal foundation base?
Securing the CEAM120/5V on a flat horizontal foundation ensures vibration-free operation, featuring an integrated layout with proper clearance and drainage.
What peak dynamic head is generated by this single-stage centrifugal pump?
Fluid elevation across facility systems relies on the CEAM120-5V, which generates a peak dynamic head of approximately 31.8 m.
What peak flow volume does this water transfer pump deliver across its discharge outlet?
Industrial washing and circulation circuits utilize the CEAM 120 5V, generating a maximum flow volume of approximately 160 L/Min via Rp 1-1/4" (32 mm) suction and Rp 1" (25 mm) discharge ports.
Which metallurgical components and seal materials provide thermal liquid safety against chemical attack?
Internal corrosion and chemical attack are prevented by alloy metallurgy materials in the CEAM_120_5V, featuring AISI 304 stainless steel casing and closed impeller, with specialized FPM (Viton) elastomers, accommodating demanding process liquids from -10°C to +110°C.
What electrical power rating and single-phase supply voltage run this centrifugal pump?
Driving the hydraulic assembly of the CEAM120/5V mandates a 0.9 kW motor input on 220–240 V, 50 Hz, single-phase at 6.24 A, supported by IP55 weatherproof motor enclosure with automatic thermal overload protection.
