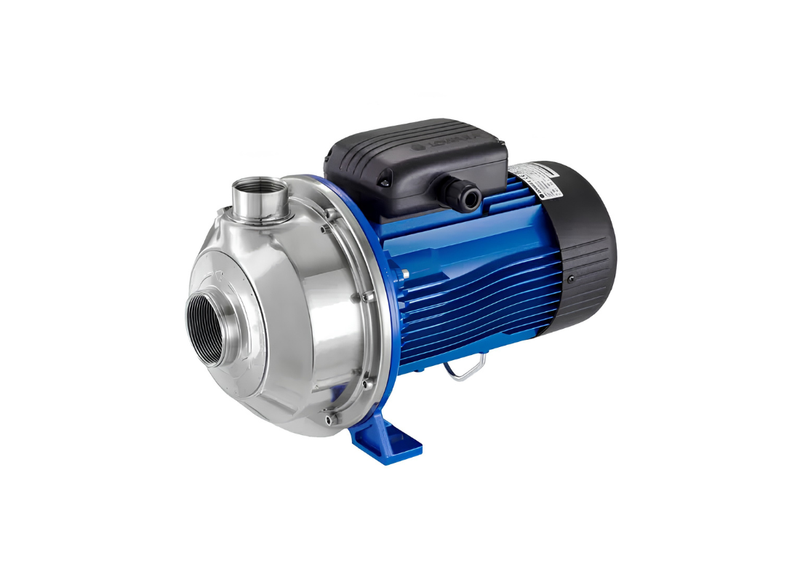

Lowara CEAM 210/2V Stainless Steel Horizontal Centrifugal Pump for Process Water Handling with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Engineered for versatility across demanding liquid transfer environments, the Lowara CEAM 210/2V serves industrial and residential sectors where reliability is required. This unit effectively addresses the challenges of fluid circulation, irrigation systems, and general water movement, providing a consistent solution for facility infrastructure that requires a compact, stainless steel-based pumping system.
Hydraulic performance is defined by its ability to move fluids at rates reaching approximately 300 L/Min, supported by a maximum head capacity of approximately 16.5 metres. The unit operates on a 1.13 kW power input, specifically configured for single-phase 240v power supplies to ensure seamless integration into standard facility electrical setups while maintaining operational efficiency.
Construction quality centers on the use of AISI 304 stainless steel for the hydraulic components, including the enclosed impeller design. The inclusion of FPM seal materials provides wider chemical compatibility and temperature resistance compared to standard NBR models, allowing the pump to manage a broader range of clean liquids with confidence.
Designed with a 40 mm inlet and a 32 mm outlet, the pump features a close-coupled architecture that optimizes space. The motor is protected by a high-specification IP55 enclosure, guarding against dust and moisture ingress, while the integrated automatic reset overload protection prevents damage during extended or strenuous operation cycles.
Features:
- Precision-engineered AISI 304 stainless steel fluid-path architecture
- FPM seal configuration for enhanced thermal and chemical tolerance
- Close-coupled design for space-constrained industrial mounting
- Integrated squirrel cage rotor for asynchronous motor efficiency
- IP55 rated exterior housing protecting against particulate and water spray
- Automatic internal thermal overload circuitry for safe single-phase operation
SPECIFICATIONS
| Max Flow | 300 L/Min |
| Max Head | 16.5 m |
| Power | 1.13 kW / 240v |
| Rated Current | 5.10 Amps |
| Suitable For | Industrial and Residential Fluid Circulation |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 40 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What dynamic head elevation does this close-coupled centrifugal unit develop?
Maintaining constant delivery elevation, the CEAM210/2V attains a maximum dynamic head rating of approximately 17.7 m during service.
What water discharge flow and connection port dimensions apply to this pump?
Cooling and heating water circuits are fed by the CEAM210-2V, delivering a peak flow rate of approximately 250 L/Min through Rp 1-1/2" (40 mm) suction and Rp 1-1/4" (32 mm) discharge connections.
How do the stainless alloy construction parts and specialized seal materials endure fluid corrosion?
Demanding liquid transfer relies on alloy metallurgy materials in the CEAM 210 2V, featuring AISI 304 stainless steel casing and closed impeller, with specialized FPM (Viton) elastomers to deliver robust corrosion resistance and thermal endurance from -10°C to +110°C.
What motor kilowatt rating and electrical power supply feed this single-phase unit?
Powering the CEAM_210_2V requires a 0.75 kW motor running on a 220–240 V, 50 Hz, single-phase power supply, drawing approximately 5.10 A with IP55 weatherproof motor enclosure with automatic thermal overload protection.
What horizontal surface placement guidelines apply to this close-coupled centrifugal pump?
Compact plant room installation is ensured for the CEAM210/2V when bolted to a rigid horizontal base with an integrated layout and proper drainage.
