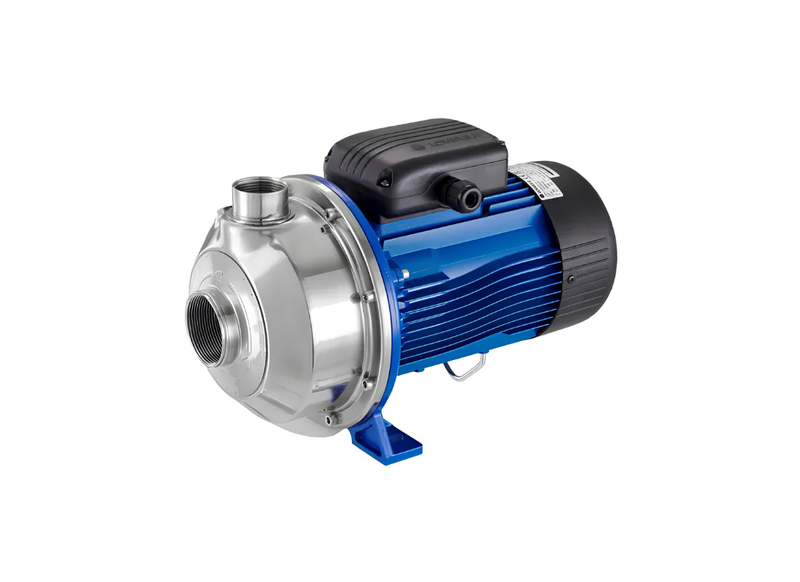

Lowara CEAM 210/3V Stainless Steel High Flow Centrifugal Pump for Cooling Systems with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara CEAM 210/3V is engineered for residential and commercial clean water movement, offering precise hydraulic control for demanding liquid transfer tasks. This centrifugal model is designed for users requiring a compact, reliable solution for fluid movement, whether for small-scale irrigation or internal building distribution systems. Its specific construction ensures that internal hydraulic geometries maintain consistent performance in continuous duty cycles.
Operating with an electrical power input of 1.48 kW, this pump provides flow rates reaching approximately 300 L/Min. The hydraulic design achieves a maximum head performance of approximately 19.7 metres. Built to handle standard clean water requirements, the mechanical configuration ensures efficient power transition, allowing the unit to maintain output stability even during prolonged operational periods.
This unit utilizes an asynchronous, squirrel cage motor equipped with external ventilation and IP55 protection. The internal architecture features an enclosed stainless steel impeller, providing structural integrity against mechanical stress. The inclusion of FPM (Viton) seals expands the chemical compatibility profile, allowing the pump to manage a wider range of liquid temperatures compared to standard NBR-equipped models, specifically up to 110°C.
Installation is simplified through 40 mm inlet and 32 mm outlet threaded connections. The close-coupled design integrates the motor directly with the pump body, minimizing total footprint and ensuring shaft alignment. For single-phase operation, the system includes built-in thermal overload protection with an automatic reset, safeguarding the motor during operation. The AISI 304 stainless steel body provides corrosion resistance suitable for internal and external installations.
Features:
- AISI 304 stainless steel hydraulic and impeller assembly
- FPM (Viton) mechanical seal for high temperature compatibility
- Integrated thermal overload protection with automatic reset
- IP55 rated motor enclosure for external operational safety
- Close-coupled construction for space-efficient installation
- Designed for continuous duty clean water movement
- Standardized Rp-thread suction and discharge ports
SPECIFICATIONS
| Max Flow | 300 L/Min |
| Max Head | 19.7 m |
| Power | 1.48 kW / 240v |
| Rated Current | 6.68 Amps |
| Suitable For | Clean Water Transfer and Distribution |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 40 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum flow volume does this close-coupled unit provide through its outlet pipe?
Piping transfer duties are powered by the CEAM210/3V, which discharges a maximum flow volume of approximately 250 L/Min with Rp 1-1/2" (40 mm) suction and Rp 1-1/4" (32 mm) discharge ports.
What materials protect the fluid pathways of this process pump against corrosive chemical attack?
Chemical and thermal compatibility is engineered into the CEAM210-3V through alloy metallurgy materials with AISI 304 stainless steel casing and closed impeller, with specialized FPM (Viton) elastomers, preventing corrosion across temperatures from -10°C to +110°C.
What single-phase electrical voltage and power input are needed to drive this pump?
Electrical connection for the CEAM 210 3V specifies a 1.1 kW motor configuration on 220–240 V, 50 Hz, single-phase with a rated draw of 6.68 A, built with IP55 weatherproof motor enclosure with automatic thermal overload protection.
Where should this process pump be installed on a horizontal foundation to ensure proper drainage?
Positioning on a rigid horizontal surface in ventilated spaces protects the CEAM_210_3V from weather exposure while maintaining an integrated base and proper drainage.
What maximum elevation head is produced by this centrifugal water transfer pump?
Overcoming elevation resistance across facility piping, the CEAM210/3V delivers a maximum dynamic head of approximately 20.8 m.
