SKU: CEAM210/4V

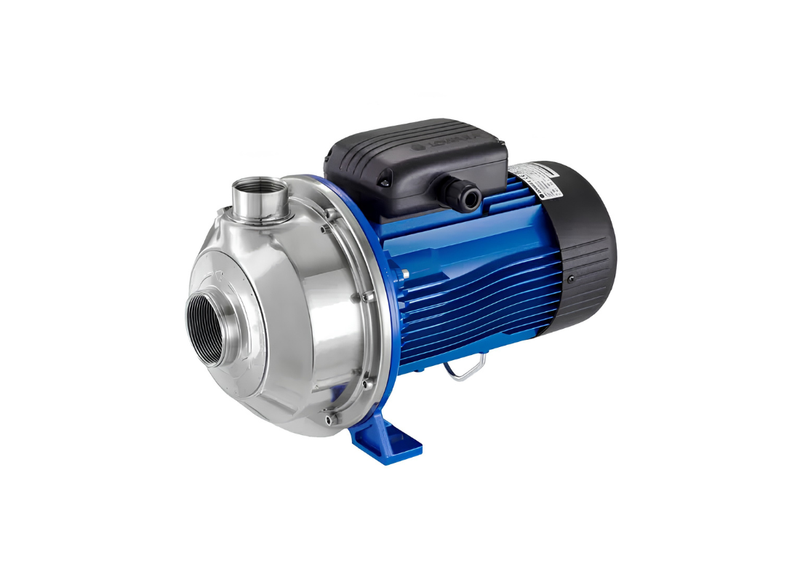

Lowara CEAM 210/4V Stainless Steel Industrial Centrifugal Pump for Liquid Transfer with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara CEAM 210/4V is a single-impeller centrifugal pump designed for liquid transfer, wash systems, and water supply in light industrial or commercial settings. Its close-coupled construction allows for seamless installation in restricted environments where reliable, continuous liquid handling is required for non-aggressive fluid systems.
Engineering performance is centered on hydraulic versatility, delivering flow rates up to approximately 300 L/Min with a maximum head reaching approximately 24.8 metres. The unit operates efficiently on a 240v power supply, pulling a maximum of 1.91 kW to manage demanding transfer duties under standard operating conditions.
Construction relies on AISI 304 stainless steel components, including the pump body, diffuser, and seal housing, ensuring structural integrity during heavy use. The inclusion of an FPM seal version offers improved chemical resistance for specific fluid handling, supported by an asynchronous, externally ventilated motor with IP55 protection class for operation in various facility environments.
Plumbing connections are simplified with a 40mm inlet and a 32mm outlet, designed for compatibility with standard threaded suction and discharge piping. The pump is suited for clean water applications, benefiting from its robust hydraulic configuration and simplified maintenance, making it a reliable choice for long-term facility water management and irrigation supply.
Features:
- Constructed with AISI 304 stainless steel hydraulic components
- FPM seal version included for enhanced material compatibility
- Close-coupled design for space-efficient installation
- Externally ventilated squirrel cage motor for continuous operation
- Equipped with 40mm suction and 32mm discharge ports
- IP55 protection rating for moisture and dust resilience
- Balanced hydraulic geometry for consistent fluid movement
SPECIFICATIONS
| Max Flow | 300 L/Min |
| Max Head | 24.8 m |
| Power | 1.91 kW / 240v |
| Rated Current | 8.60 Amps |
| Suitable For | Clean Water Transfer and Industrial Systems |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 40 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which construction alloy metals and seal materials ensure durability against chemical attack?
Long-term fluid circulation reliability against corrosion relies on alloy metallurgy materials in the CEAM210/4V, featuring AISI 304 stainless steel casing and closed impeller, with specialized FPM (Viton) elastomers for fluid temperatures from -10°C to +110°C.
What electrical power draw and single-phase supply voltage are required by this motor?
Operating the motor on the CEAM210-4V requires a 1.5 kW electrical feed on 220–240 V, 50 Hz, single-phase drawing 8.60 A, built with IP55 weatherproof motor enclosure with automatic thermal overload protection.
How should this industrial pump be anchored on a horizontal mounting base for reliable operation?
Horizontal surface installation in dry commercial utility spaces is recommended for the CEAM 210 4V, providing an integrated setup and proper floor drainage.
What dynamic head capability does this close-coupled pump provide across piping?
Hydraulic pressure elevation in industrial loops is driven by the CEAM_210_4V, which yields a maximum dynamic head of approximately 25.5 m.
What flow delivery rate is supported by this centrifugal water transfer pump?
Industrial liquid circulation relies on the CEAM210/4V, producing a peak delivery flow of approximately 250 L/Min via Rp 1-1/2" (40 mm) suction and Rp 1-1/4" (32 mm) discharge threads.
