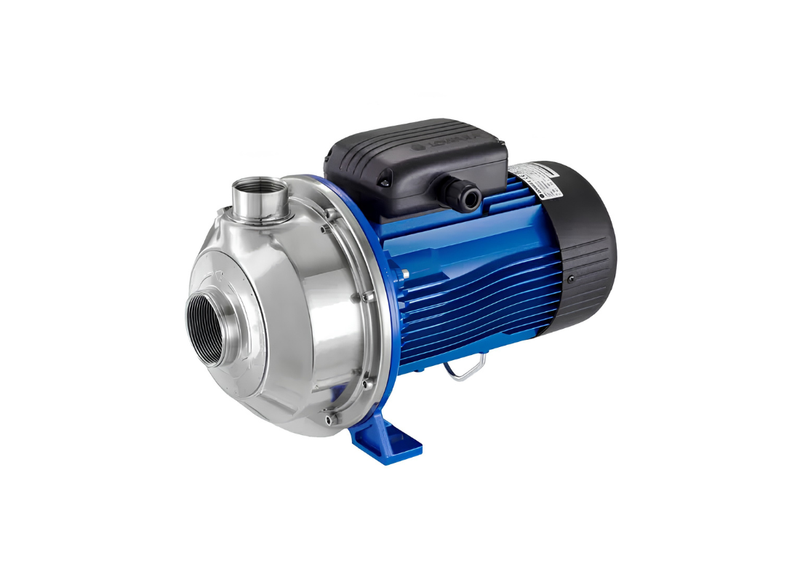

Lowara CEAM 210/5V Stainless Steel Heavy-Flow Centrifugal Pump for Water Distribution with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
This single-phase centrifugal pump is engineered for consistent water movement in residential and light industrial irrigation environments. It addresses the common requirement for durable, high-flow pumping solutions where the handling of clear liquids is essential for consistent system pressure.
The unit achieves a maximum flow rate of approximately 300 L/Min, supported by a maximum head performance reaching approximately 28.2 metres. Power requirements for the motor system are rated at a maximum of 2.24 kW at 240v, ensuring power-efficient operation during duty cycles.
Construction utilizes AISI 304 stainless steel for both the pump body and the enclosed impeller, providing excellent resistance to liquid exposure. This specific 'V' version incorporates FPM seals, extending the temperature handling capability to a maximum of 110°C, significantly broadening its operational scope compared to standard elastomer models.
Installation requires plumbing connection to the 40 mm suction and 32 mm discharge ports. The design features a squirrel cage rotor configuration with external cooling ventilation, and the housing maintains an IP55 protection rating, suitable for placement in protected environments.
Features:
- Integrated FPM elastomers for high-temperature liquid resistance
- Close-coupled architecture for compact mechanical integration
- AISI 304 stainless steel hydraulic assembly and impeller
- External ventilation for efficient asynchronous motor cooling
- Standardized 40 mm suction and 32 mm discharge port sizes
- Class F insulation for reliable thermal performance
SPECIFICATIONS
| Max Flow | 300 L/Min |
| Max Head | 28.2 m |
| Power | 2.24 kW / 240v |
| Rated Current | 10.2 Amps |
| Suitable For | Irrigation and Clean Water Transfer |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 40 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What motor kilowatt power and electrical supply voltage run this centrifugal unit?
Energy supply requirements for the CEAM210/5V specify a 1.85 kW motor powered by 220–240 V, 50 Hz, single-phase pulling 10.2 A, incorporating IP55 weatherproof motor enclosure with automatic thermal overload protection.
What horizontal foundation mounting is suitable for this close-coupled centrifugal unit?
Stable service in equipment rooms is delivered by anchoring the CEAM210-5V to a horizontal concrete base with an integrated design and perimeter drainage.
What total dynamic elevation head is developed by this centrifugal circulation pump?
Under demanding circulation cycles, the CEAM 210 5V reaches a maximum dynamic head performance of approximately 29.0 m.
What peak flow capacity and suction discharge thread sizes are featured on this pump?
Water movement through facility loops is driven by the CEAM_210_5V, yielding a maximum flow rate of approximately 250 L/Min through Rp 1-1/2" (40 mm) suction and Rp 1-1/4" (32 mm) discharge ports.
How does the stainless alloy material resist fluid corrosion and particulate erosion?
Superior metallurgical and sealing resilience against corrosion is provided by alloy materials in the CEAM210/5V, featuring AISI 304 stainless steel casing and closed impeller, with specialized FPM (Viton) elastomers, rated from -10°C to +110°C.
