SKU: CEAM370/2V

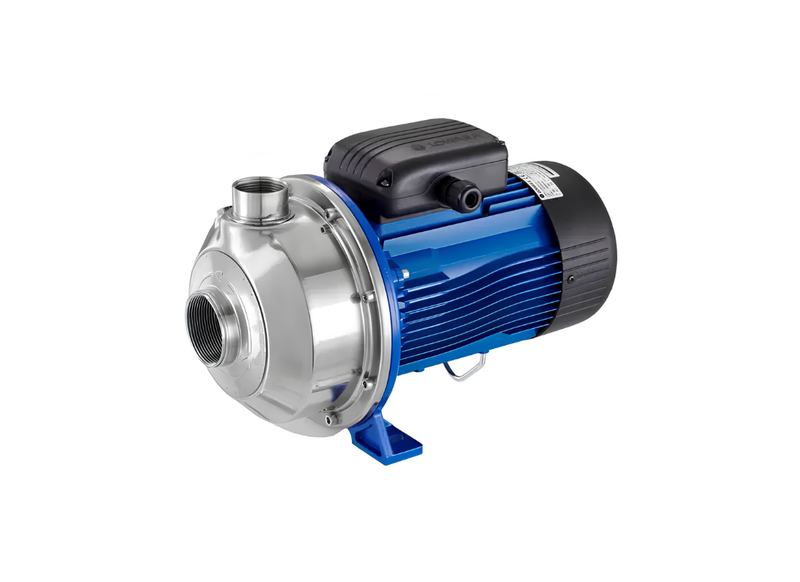

Lowara CEAM 370/2V Stainless Steel Process Centrifugal Pump for Industrial Circulation with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara CEAM 370/2V is engineered for demanding fluid handling tasks in commercial and light industrial environments. Its closed-coupled configuration makes it suitable for secondary water distribution, pressure boosting, and specialized irrigation needs where consistent performance and material longevity are essential for operations.
Operating with a maximum power output of 2.05 kW, this pump reaches flow rates of approximately 480 L/Min and head performance up to approximately 19.1 metres. It is designed to handle clean liquids within a temperature range of -10°C to +110°C, benefiting from the enhanced FPM seal material suited for more chemically sensitive or high-temperature water applications.
Construction relies on high-grade AISI 304 stainless steel, ensuring structural integrity and resistance to oxidation in constant-duty cycles. The unit utilizes an asynchronous, two-pole motor with external ventilation, providing balanced operation and reliable cooling to support continuous duty cycles required for facility water management.
Plumbing integration is managed via a 50mm suction port and a 32mm discharge port, both utilizing ISO 7 threaded connections. The single-phase motor design incorporates automatic internal overload protection to safeguard the pump during operation, while the IP55 enclosure rating protects internal electronics against environmental dust and moisture intrusion.
Features:
- AISI 304 stainless steel hydraulic construction for environmental durability
- FPM seal version optimized for high-temperature fluid handling up to 110°C
- Close-coupled architecture for compact and efficient power transmission
- Enclosed impeller design for improved hydraulic efficiency
- IP55 rated enclosure for protected operation in various installation settings
- Integrated 240v single-phase motor with automatic overload protection
- Threaded suction and discharge connections compliant with ISO 7 standards
SPECIFICATIONS
| Max Flow | 480 L/Min |
| Max Head | 19.1 m |
| Power | 2.05 kW / 240v |
| Rated Current | 9.26 Amps |
| Suitable For | Industrial Water Handling |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 50 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum dynamic elevation head is achieved by this centrifugal pump?
Demanding water distribution tasks are served by the CEAM370/2V, which provides a maximum dynamic head rating of approximately 20.4 m.
Which connection discharge ports are on this pump and what maximum flow volume is attained?
Demanding commercial fluid circuits utilize the CEAM370-2V, discharging a maximum flow rate of approximately 450 L/Min with Rp 2" (50 mm) suction and Rp 1-1/4" (32 mm) discharge ports.
How is this centrifugal unit protected against corrosion and chemical attack when circulating hot liquids?
Reliable thermal endurance against corrosion during hot water movement is ensured by alloy metallurgy materials in the CEAM 370 2V, featuring AISI 304 stainless steel casing and closed impeller, with specialized FPM (Viton) elastomers, rated from -10°C to +110°C.
What electrical power and single-phase supply voltage are required for this pump?
Powering the CEAM_370_2V requires a 1.5 kW motor running on a 220–240 V, 50 Hz, single-phase power supply, drawing approximately 9.26 A with IP55 weatherproof motor enclosure with automatic thermal overload protection.
How should this irrigation pump be positioned on a horizontal level floor for optimal operation?
Floor mounting on a horizontal foundation in sheltered environments is advised for the CEAM370/2V, providing an integrated base and adequate drainage.
