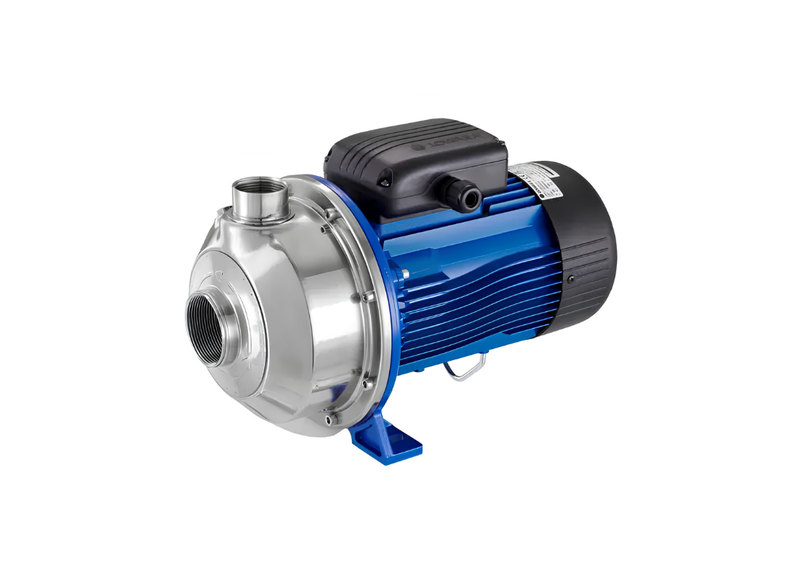

Lowara CEAM 370/3V Stainless Steel High-Capacity Centrifugal Pump for Process Cooling with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Engineered for demanding industrial and agricultural liquid movement, the Lowara CEAM 370/3V provides a solution for operations requiring consistent flow performance. This single-phase centrifugal pump is designed for applications where clean water handling and system reliability are the primary operational goals, offering a balance of hydraulic efficiency and material longevity for heavy-duty requirements.
The unit delivers flow rates reaching up to approximately 520 L/Min, supported by a maximum head performance of approximately 22.9 metres. Driven by a 2.45 kW motor configuration, the pump is built for continuous duty applications within varied industrial environments, ensuring consistent pressure and volumetric output even under sustained operational loads.
Central to its design is the high-grade AISI 304 stainless steel construction, which provides chemical stability and resistance to corrosion in diverse water conditions. The close-coupled asynchronous motor utilizes external ventilation for thermal stability, while the integration of FPM mechanical seals ensures that liquid handling remains secure and leak-free across its specified operating temperature range.
Installation into existing plumbing networks is facilitated by a 50 mm suction connection and a 32 mm discharge port. The pump is structured for rapid mounting within standard hydraulic circuits, featuring a robust internal design that minimizes maintenance cycles. Its compact profile and standardized connections make it suitable for seamless integration into larger water distribution or automated fluid management systems.
Features:
- Constructed with AISI 304 stainless steel pump body and hydraulics
- Equipped with FPM mechanical seals for enhanced chemical resilience
- Close-coupled asynchronous motor with external fan cooling
- Standardized 50 mm suction and 32 mm discharge configuration
- Designed for continuous operation in liquid transfer duties
- IP55 rated enclosure for protected operation in demanding environments
SPECIFICATIONS
| Max Flow | 520 L/Min |
| Max Head | 22.9 m |
| Power | 2.45 kW / 240v |
| Rated Current | 11.1 Amps |
| Suitable For | Industrial Water Handling |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 50 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum water flow rate does this large centrifugal pump discharge?
Fluid circuits connect directly to Rp 2" (50 mm) suction and Rp 1-1/4" (32 mm) discharge suction and discharge ports, through which the CEAM370/3V delivers a peak flow rate of approximately 450 L/Min.
What materials ensure longevity and chemical resilience against corrosion across the hydraulic passages?
Industrial durability and chemical corrosion defense are delivered by alloy metallurgy materials in the CEAM370-3V, featuring AISI 304 stainless steel casing and closed impeller, with specialized FPM (Viton) elastomers across fluid temperatures from -10°C to +110°C.
What motor kilowatt power and single-phase electrical feed operate this unit?
Electrical connection for the CEAM 370 3V specifies a 1.85 kW motor configuration on 220–240 V, 50 Hz, single-phase with a rated draw of 11.1 A, built with IP55 weatherproof motor enclosure with automatic thermal overload protection.
What horizontal surface installation guidelines apply to this close-coupled centrifugal unit?
Equipment room mounting on a level horizontal foundation is specified for the CEAM_370_3V, providing an integrated setup with stable operation and drainage.
What dynamic head performance does this large-volume centrifugal pump achieve?
Circulation across cooling and wash systems is powered by the CEAM370/3V, which achieves a peak dynamic head of approximately 24.4 m.
