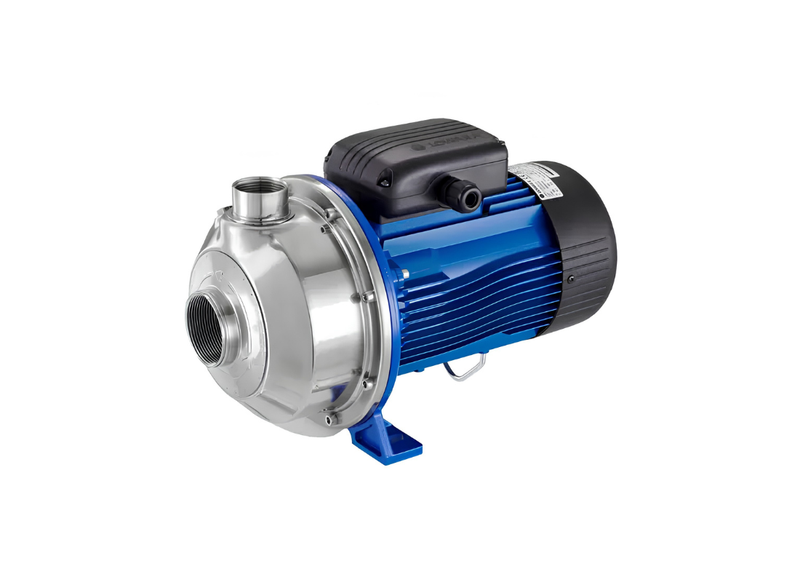

Lowara CEAM 70/5V Stainless Steel High-Flow Centrifugal Pump for Water Circulation with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara CEAM 70/5V is engineered for demanding industrial and commercial environments requiring reliable clean water movement. This single-phase close-coupled centrifugal pump provides a robust solution for fluid transfer tasks, ensuring consistent performance in diverse circulation and boosting scenarios.
Equipped with an efficient motor, this unit achieves flow rates up to approximately 80 L/Min with maximum head capabilities reaching approximately 28.8 metres. Designed for precision, the pump utilizes a 0.97 kW motor configuration to maintain steady operation under continuous duty cycles.
Construction quality centers on high-grade AISI 304 stainless steel components, which provides durability and chemical resistance across critical internal elements. This specific model features an FPM elastomer seal assembly, tailored for applications where standard NBR configurations might be insufficient, ensuring a longer operational lifespan.
Installation is streamlined through compact design dimensions and threaded 32mm suction and 25mm discharge ports. The external ventilation system ensures thermal stability, while the IP55 protection rating guards against environmental exposure, allowing for versatile placement within plant rooms or secondary utility areas.
Features:
- Integrated FPM elastomers for high-performance sealing integrity
- AISI 304 stainless steel hydraulic assembly for corrosion resistance
- Single-phase electric motor with thermal protection
- Close-coupled architecture for compact footprint efficiency
- Standardized 32mm inlet and 25mm outlet threaded connections
- Suitable for clean fluid transfer and circulation duties
- Robust IP55 rated casing for environmental protection
SPECIFICATIONS
| Max Flow | 80 L/Min |
| Max Head | 28.8 m |
| Power | 0.97 kW / 240v |
| Rated Current | 4.55 Amps |
| Suitable For | Clean Water Transfer |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What peak water flow and suction discharge port threads are on this pump?
Process liquid transfer is driven by the CEAM70/5V, delivering a peak flow rate of approximately 80 L/Min via Rp 1-1/4" (32 mm) suction and Rp 1" (25 mm) discharge ports.
What metallurgy and mechanical seal materials are engineered into this pump to prevent corrosion?
Corrosion resistance across hot liquid transfer is assured by alloy metallurgy materials in the CEAM70-5V, featuring AISI 304 stainless steel casing and closed impeller, with specialized FPM (Viton) elastomers, rated for fluid temperatures from -10°C to +110°C up to 8 bar (PN 8).
What electrical power and single-phase supply voltage run this close-coupled pump?
Electrical connection for the CEAM 70 5V specifies a 0.55 kW motor configuration on 220–240 V, 50 Hz, single-phase with a rated draw of 4.55 A, built with IP55 weatherproof motor enclosure with automatic thermal overload protection.
Where should this close-coupled pump be secured on a horizontal mounting foundation?
Surface floor mounting on a horizontal rigid base is recommended for the CEAM_70_5V, installed with an integrated layout in a dry, well-ventilated utility area with proper drainage.
What dynamic elevation head does this close-coupled centrifugal pump provide?
Delivering dependable fluid elevation, the CEAM70/5V achieves a maximum dynamic head of approximately 31.1 m across its operating envelope.
