SKU: CEAM80/5V

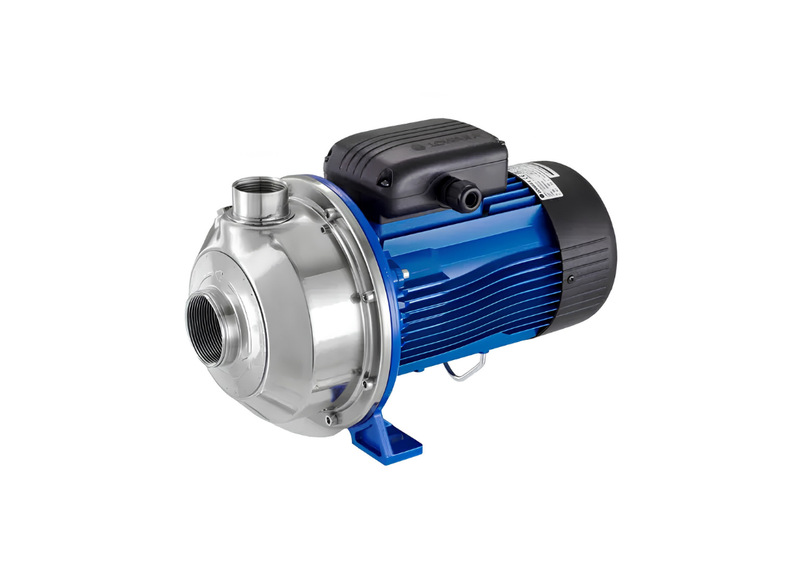

Lowara CEAM 80/5V Stainless Steel Single-Phase Centrifugal Pump for Fluid Transfer with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara CEAM 80/5V serves as a precise solution for water distribution and transfer tasks in residential and light commercial settings. Engineered to handle clean liquids, this pump addresses the requirement for consistent pressure and reliable fluid movement in domestic plumbing systems or small-scale industrial circulation loops where space efficiency is a priority.
Built for high performance, the unit offers maximum flow rates reaching approximately 100 L/Min, supported by a maximum head capacity of approximately 30 metres. Powering this hydraulic performance is a single-phase motor consuming 1.07 kW, designed to operate effectively under a 240v power supply for seamless integration into standard electrical configurations.
Construction quality centers on the AISI 304 stainless steel hydraulic assembly, which provides structural integrity against wear. The system incorporates an enclosed stainless steel impeller and an FPM-equipped mechanical seal, ensuring chemical resilience and stable operation. The close-coupled design is supported by an asynchronously ventilated motor, ensuring consistent thermal regulation during continuous operation.
Installation is facilitated by an inlet dimension of 32 mm and an outlet dimension of 25 mm, allowing for standard plumbing connection. The compact 12.5 kg build makes the pump manageable for mounting in various technical environments, provided there is adequate external ventilation for the motor housing to maintain its IP55 protection rating.
Features:
- AISI 304 stainless steel hydraulic casing for extended service life
- FPM mechanical seal materials for handling a wide range of liquids
- Close-coupled architecture for reduced physical footprint
- External ventilation for efficient motor heat management
- Equipped with an enclosed-style stainless steel impeller for hydraulic efficiency
- IP55 rated enclosure protecting internal components from dust and moisture
- Single-phase motor with an integrated automatic reset overload protector
SPECIFICATIONS
| Max Flow | 100 L/Min |
| Max Head | 30 m |
| Power | 1.07 kW / 240v |
| Rated Current | 4.87 Amps |
| Suitable For | Water distribution and clean liquid transfer |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the stainless alloy construction and elastomer material configuration protect this pump?
Hydraulic longevity in chemical and thermal circulation is provided by alloy metallurgy materials in the CEAM80/5V, resisting fluid corrosion across temperatures from -10°C to +110°C.
What motor kilowatt power and electrical voltage are required for this single-phase unit?
Operating the motor on the CEAM80-5V requires a 0.75 kW electrical feed on 220–240 V, 50 Hz, single-phase drawing 4.87 A, built with IP55 weatherproof motor enclosure with automatic thermal overload protection.
What horizontal mounting orientation is recommended for this close-coupled centrifugal unit?
Close-coupled horizontal mounting on a rigid base is specified for the CEAM 80 5V, installed with an integrated setup requiring adequate ambient ventilation and proper drainage.
What maximum dynamic head can this single-stage centrifugal unit achieve during circulation?
Circulating process liquids through piping systems, the CEAM_80_5V produces a maximum dynamic head rating of approximately 32.0 m.
What maximum delivery flow can this centrifugal pump produce through its discharge port?
Commercial circulation systems receive a maximum delivery flow of approximately 100 L/Min from the CEAM80/5V with Rp 1-1/4" (32 mm) suction and Rp 1" (25 mm) discharge connections.
