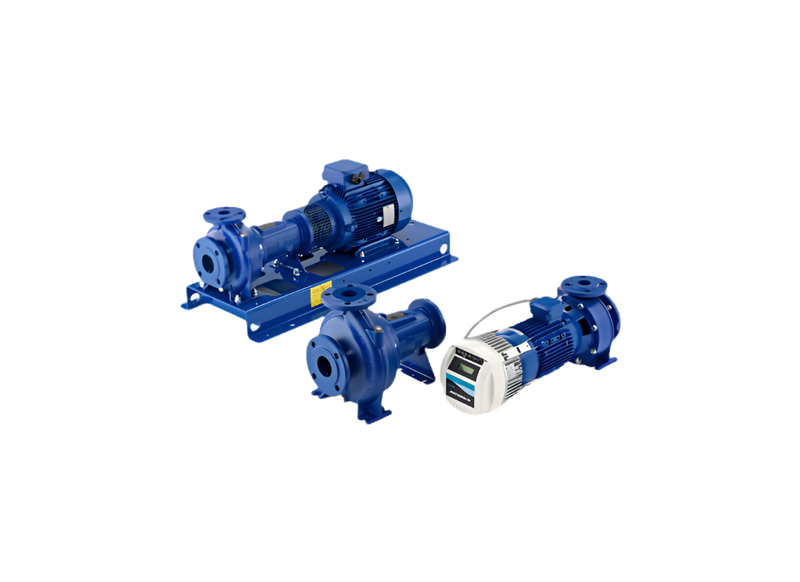

Lowara NSCS32 250/75 Stainless Steel End Suction Centrifugal Pump for Industrial Transfer with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Specifically deployed for robust water treatment and filtration networks, the Lowara NSCS32-250/75 offers heavy-duty fluid transportation capabilities. This industrial-grade unit ensures continuous liquid handling for large-scale municipal or commercial processing facilities.
Drawing from a dependable 7.5 kW / 415v three-phase motor, the pump establishes a maximum flow of approximately 474 L/Min and reaches an impressive maximum head of approximately 57.5 m. The unit connects easily to industrial pipework via a 50 mm inlet and a standard 32 mm outlet.
The sophisticated internal volute controls hydraulic movement with exceptional efficiency, significantly reducing energy loss during high-capacity transfer. By minimizing internal friction, the centrifugal mechanism sustains balanced head pressure and actively prevents mechanical fatigue.
Constructed with a specialized stub shaft coupling adapter, it pairs a heavy-wall Cast Iron outer chamber with a Fabricated Stainless Steel (AISI 316) impeller. Fully protected by an IP55 motor rating, the system effortlessly processes liquid temperatures from -25 °C up to +120 °C.
FEATURES
- Specialized rigid stub shaft motor adapter coupling
- Highly resilient Cast Iron external structural volute
- Premium AISI 316 Stainless Steel liquid handling components
- Continuous duty IP55 environmental motor protection
- Broad liquid temperature tolerance reaching +120 °C
- Reliable standardized three-phase electrical integration
- Easily accessible mechanical sealing chamber design
SPECIFICATIONS
| Max Flow | 474 L/Min |
| Max Head | 57.5 m |
| Power | 7.5 kW / 415v |
| Rated Current | 14.2 Amps |
| Suitable For | Industrial Process Supply |
| Body Material | AISI 316 Stainless Steel |
| Liquid Temperature | -25°C to +120°C |
| Inlet Size | 50 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What electrical operating voltage and motor power rating in kilowatts are certified for this flanged end-suction centrifugal pump?
Driven by industrial electrical lines, the NSCS32-250/75 relies on an electric motor rated at 7.5 kW (10.0 HP) energized via 380–415 V, 50 Hz, three-phase drawing 14.1 / 8.16 A.
What liquid temperature tolerances and maximum working pressure boundaries are certified for this flanged end-suction centrifugal pump?
Certified under rigorous operating pressures, the NSCS32-250-75 sustains a maximum working pressure boundary of 16 bar (PN 16) and operating temperatures from -25°C to +120°C.
When elevating fluid upward, what maximum dynamic lift head does this flanged end-suction centrifugal pump achieve?
Delivering across facility piping systems, the NSCS32 250 75 reaches a maximum dynamic elevation head of approximately 57.5 m across vertical runs.
How many liters per minute of fluid flow and what discharge pipe sizes are engineered into this flanged end-suction centrifugal pump?
Transferring across commercial distribution lines, the NSCS32_250_75 delivers a peak volumetric flow of approximately 474 L/Min via connected DN 50 suction and DN 32 discharge flanged ports.
In harsh fluid environments, what metallurgy construction and mechanical seals protect this flanged end-suction centrifugal pump from corrosion?
Manufactured with resilient metallurgy construction, the NSCS32-250/75 employs alloy construction of cast iron casing with stainless steel closed impellers with mechanical face seals to guard against chemical attack and corrosion.
