SKU: NSCS40-125/30

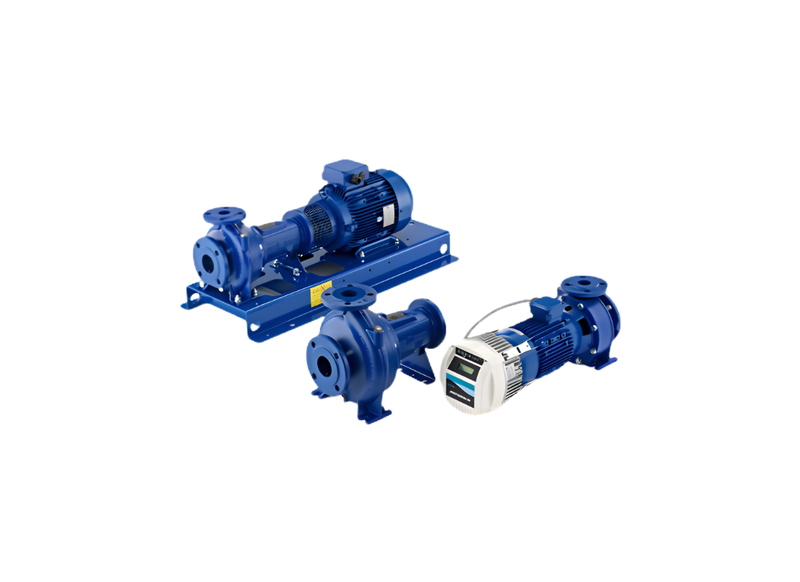

Lowara NSCS40 125/30 Stainless Steel High Capacity Centrifugal Pump for Liquid Management with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Constructed specifically for extreme high-capacity liquid management, the Lowara NSCS40-125/30 provides uncompromising reliability for wide-scale water distribution networks. Its robust three-phase architecture is fully optimized for continuous fluid transfer across expansive commercial facilities.
Delivering a massive maximum flow of approximately 846 L/Min and achieving a maximum head of approximately 22.9 m, the unit is driven by a heavy-duty 3.0 kW / 415v motor. Liquid exchange is highly efficient, utilizing a large 65 mm inlet paired with a 40 mm outlet configuration.
The internal mechanical pathways prioritize volumetric stability, featuring a perfectly balanced closed impeller that drastically minimizes operational vibration. The precise casing shape actively prevents recirculation zones, maximizing hydraulic transfer efficiency across the entire performance curve.
Housed within a thick Cast Iron frame and employing a Fabricated Stainless Steel (AISI 316) impeller, the pump safely accommodates liquid temperatures peaking at +120 °C. The stub shaft design integrates flawlessly with standard asynchronous motors, fully protected by an IP55 enclosure.
FEATURES
- Heavy-duty stub shaft bracket mounting configuration
- Fabricated Stainless Steel (AISI 316) internal construction
- Corrosion-resistant Cast Iron structural pump body
- Standardized three-phase TEFC motor design compliance
- IP55 rating guarding against severe moisture ingress
- High thermal handling capability safely reaching +120 °C
- Engineered for highly stable continuous distribution duty
SPECIFICATIONS
| Max Flow | 846 L/Min |
| Max Head | 22.9 m |
| Power | 3 kW / 415v |
| Rated Current | 5.82 Amps |
| Suitable For | Cooling Systems |
| Body Material | AISI 316 Stainless Steel |
| Liquid Temperature | -25°C to +120°C |
| Inlet Size | 65 mm |
| Outlet Size | 40 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
In high-pressure facility loops, what maximum working pressure and liquid temperature limits apply to this flanged end-suction centrifugal pump?
Sustaining under certified hydraulic pressure, the NSCS40-125/30 provides a maximum working pressure rating of 16 bar (PN 16) across certified temperatures from -25°C to +120°C.
Against pipe resistance, what dynamic elevation head does this flanged end-suction centrifugal pump attain?
Lifting across vertical pipe runs, the NSCS40-125-30 maintains a maximum dynamic head of approximately 22.9 m across vertical piping.
What maximum liters per minute and discharge port dimensions are maintained by this flanged end-suction centrifugal pump?
Outputting across connected plumbing lines, the NSCS40 125 30 outputs a peak liquid flow volume of approximately 846 L/Min through DN 65 suction and DN 40 discharge flanged ports.
Which corrosion-resistant alloy specifications and mechanical face seal materials apply to this flanged end-suction centrifugal pump?
Machined with alloy metallurgy components, the NSCS40_125_30 utilizes alloy construction of cast iron casing with stainless steel closed impellers backed by mechanical face seals to prevent fluid corrosion.
Which motor power kilowatt rating and operating electrical voltage feed power this flanged end-suction centrifugal pump?
Operated by commercial electrical feeds, the NSCS40-125/30 operates via an electric motor rated at 3 kW (4.0 HP) on a supply voltage of 380–415 V, 50 Hz, three-phase at 11.0 / 6.33 A.
