SKU: NSCS50-160/92

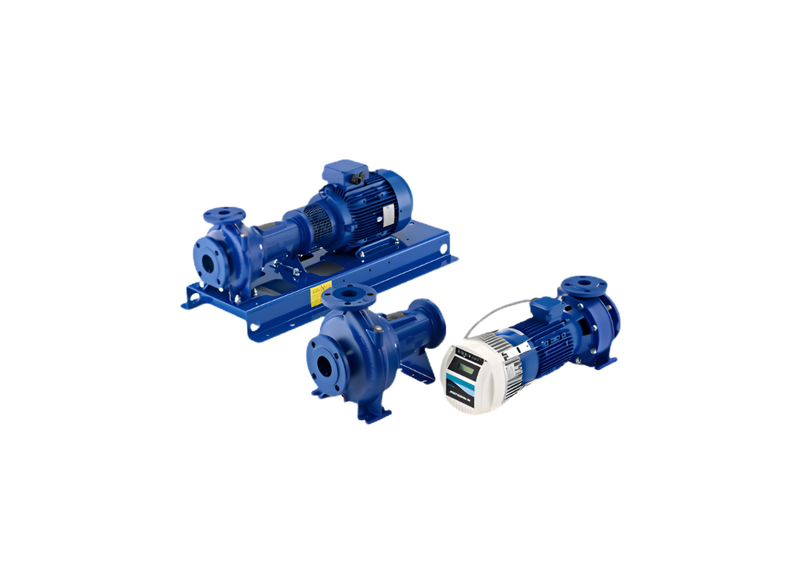

Lowara NSCS50 160/92 Stainless Steel Stub Shaft Centrifugal Pump for Thermal Exchange with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Industrial process cooling systems require stable liquid circulation to regulate equipment temperatures. By installing the Lowara NSCS50-160/92 end-suction unit, manufacturing facilities can equip their thermal exchange circuits with a practical fluid transport solution.
Performance specifications highlight a maximum head rating of approximately 38 m alongside a peak delivery capacity of 1674 L/Min. Driven by a 9.2 kW electric motor, this unit operates on a 415v three-phase power supply and draws 17.5 Amps. Plumbing connections are sized at 65 mm for suction and 50 mm for discharge.
A precision-cast rotating assembly directs incoming liquid to manage exit acceleration while dampening internal vibration. This end-suction layout balances applied centrifugal forces, which helps keep utility circulation steady regardless of minor fluctuations in system resistance.
Engineered to process liquid environments from -25°C to +120°C, the core wetted elements are constructed using fabricated AISI 316 stainless steel. The external architecture utilizes structural bracing and an enclosed motor shield to protect sensitive electrical components from factory exposure.
FEATURES
- Solidly linked drive extension ensures aligned rotational movement under standard system strain
- Strategic back pull-out architecture minimizes service downtime by isolating the internal rotating elements
- Precision-machined casing cover limits microscopic bypass to maintain target system pressure
- Industrial squirrel cage motor construction supports continuous-duty reliability
- DN65 and DN50 standardized bolting flanges simplify the attachment of commercial pipework
- Precision-welded hydraulic geometry addresses internal cavitation risks during sustained operation
- IP55-rated external enclosure repels airborne moisture and facility dust
SPECIFICATIONS
| Max Flow | 1674 L/Min |
| Max Head | 38 m |
| Power | 9.2 kW / 415v |
| Rated Current | 17.5 Amps |
| Suitable For | Cooling Systems |
| Body Material | AISI 316 Stainless Steel |
| Liquid Temperature | -25°C to +120°C |
| Inlet Size | 65 mm |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Regarding vertical hydraulic lift, what maximum dynamic head does this flanged end-suction centrifugal pump reach?
Overcoming through plant water circuits, the NSCS50-160/92 attains a peak dynamic elevation head of approximately 38 m propelling fluid upward.
Regarding system plumbing integration, what flow volume and connection port diameters apply to this flanged end-suction centrifugal pump?
Delivering through system pipework runs, the NSCS50-160-92 sustains a maximum delivery flow capacity of approximately 1674 L/Min plumbed with DN 65 suction and DN 50 discharge flanged ports.
Which alloy metallurgy specifications and mechanical seal materials deliver corrosion protection in this flanged end-suction centrifugal pump?
Configured for harsh corrosive applications, the NSCS50 160 92 features metallurgy of cast iron casing with stainless steel closed impellers complemented by precision mechanical seals to eliminate corrosion leaks.
In building electrical distribution, what motor power rating and supply voltage feed are specified for this flanged end-suction centrifugal pump?
Supplied from facility electrical circuits, the NSCS50_160_92 is driven by an electric motor rated at 9.2 kW (12.5 HP) powered by 380–415 V, 50 Hz, three-phase drawing 17.5 A.
What operating pressure capability and permissible fluid temperature range govern this flanged end-suction centrifugal pump?
Engineered across facility pressure circuits, the NSCS50-160/92 withstands a maximum working pressure limit of 16 bar (PN 16) with fluid temperatures ranging from -25°C to +120°C.
