SKU: NSCS50-200/185

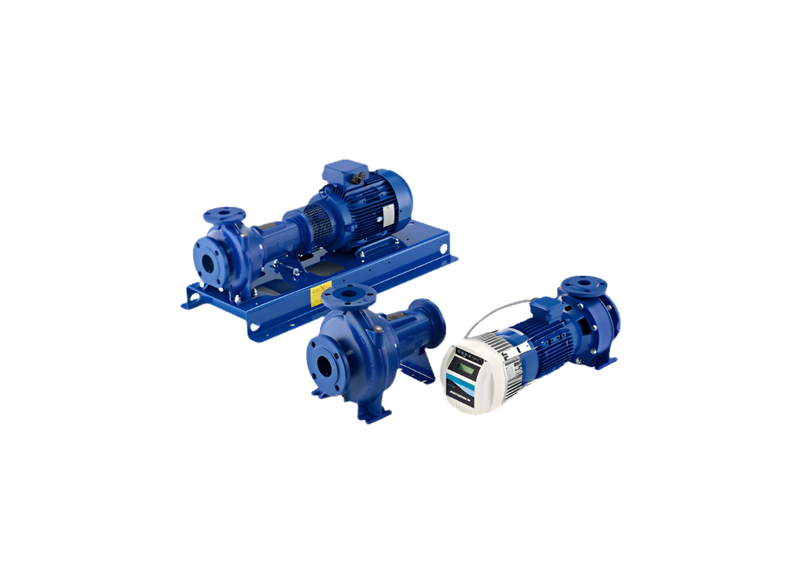

Lowara NSCS50 200/185 Stainless Steel Single Stage Centrifugal Pump for Process Water with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Industrial process water handling requires consistent fluid transfer to maintain daily manufacturing operations. The Lowara NSCS50-200/185 end-suction unit is designed to integrate into commercial plumbing systems, ensuring stable hydraulic distribution across operational networks.
Operating on a 415v three-phase supply, this pump features an 18.5 kW motor that draws a rated current of 32.7 Amps. It achieves a maximum head of approximately 63.0 m and delivers a flow capacity of 1674 L/Min. Installation is supported by standardized 65 mm inlet and 50 mm outlet flanged connections.
Fluid momentum is guided by a centrifugal profile structured to reduce operational noise while sustaining smooth pressurized distribution. By managing directional water flow, the pump maintains steady velocity even when encountering varying system resistance across multiple processing zones.
Formed from fabricated AISI 316 stainless steel, the primary fluid pathways endure thermal shifts from -25°C to +120°C. A cast iron motor adapter bracket and an industrial sealing matrix surround the rotational bearings to minimize friction-induced wear during continuous service.
FEATURES
- Industrial stub shaft extension aligns the rotating assembly during continuous mechanical strain
- Standardized extraction mechanics reduce site maintenance durations by keeping fixed pipes in place
- Flange-ready interfaces ensure integration with standard commercial isolation valves
- Ergonomic drain plugs facilitate controlled fluid evacuation during system maintenance procedures
- Interchangeable sealing chamber accommodates various mechanical seals for specific facility fluids
- Thickened casing walls absorb the hydraulic shocks typical of centralized building grids
- Optimized discharge geometry limits internal friction to support overall mechanical efficiency
SPECIFICATIONS
| Max Flow | 1674 L/Min |
| Max Head | 63 m |
| Power | 18.5 kW / 415v |
| Rated Current | 32.7 Amps |
| Suitable For | Process Water |
| Body Material | AISI 316 Stainless Steel |
| Liquid Temperature | -25°C to +120°C |
| Inlet Size | 65 mm |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Under nominal operating conditions, what dynamic vertical head does this flanged end-suction centrifugal pump maintain?
Generating across facility piping systems, the NSCS50-200/185 produces a maximum dynamic head of approximately 63 m to lift fluid upward.
Across facility transfer lines, what discharge flow volume and port diameter are rated for this flanged end-suction centrifugal pump?
Piping across commercial distribution lines, the NSCS50-200-185 delivers a peak delivery flow rate of approximately 1674 L/Min discharging through DN 65 suction and DN 50 discharge flanged ports.
What corrosion defense mechanisms are built into the alloy metallurgy and mechanical seals of this flanged end-suction centrifugal pump?
Produced with resilient metallurgy construction, the NSCS50 200 185 features alloy construction of cast iron casing with stainless steel closed impellers with mechanical face seals to resist corrosion and chemical attack.
What electrical motor rating in kilowatts and supply voltage current draw are built into this flanged end-suction centrifugal pump?
Actuated by industrial electrical lines, the NSCS50_200_185 is powered by an electric motor rated at 18.5 kW (25.0 HP) running on 380–415 V, 50 Hz, three-phase with a current draw of 32.70 A.
Across plant piping circuits, what maximum working pressure in bar and fluid temperature limits apply to this flanged end-suction centrifugal pump?
Configured under rigorous operating pressures, the NSCS50-200/185 sustains a maximum working pressure capability of 16 bar (PN 16) across liquid operating temperatures from -25°C to +120°C.
