SKU: CEA370/3V

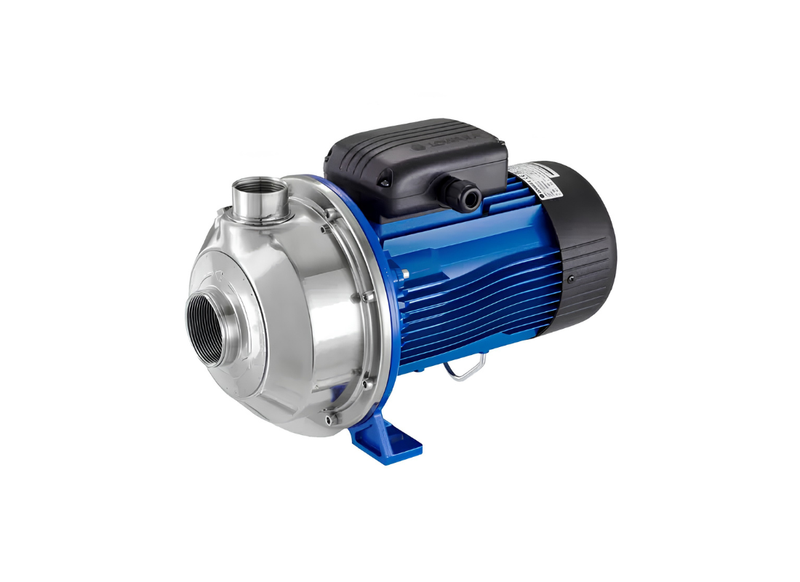

Lowara CEA 370/3V Stainless Steel Industrial Centrifugal Pump for Irrigation with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Engineered for professional agricultural and industrial water movement, the Lowara CEA 370/3V serves as a high-performance solution for scenarios requiring sustained fluid circulation. This close-coupled centrifugal pump is designed to handle demanding workloads while maintaining structural integrity in varied operational settings.
The unit delivers flow rates reaching approximately 520 L/Min with maximum head performance of approximately 22.9 metres. Powering this hydraulic output is an asynchronous motor with a maximum power input of 2.45 kW, built to accommodate standard three-phase electrical supply configurations.
Construction revolves around high-grade AISI 304 stainless steel components, including the pump body and impeller, ensuring consistent handling of liquids. The mechanical seal design adheres to international standards, providing a reliable barrier that contributes to the overall longevity of the hydraulic system during intensive use.
Installation is streamlined through a 50 mm suction inlet and a 32 mm discharge outlet. The pump features an IP55 protection rating, shielding internal mechanics from environmental debris and moisture, making it suitable for protected outdoor or indoor utility installations where consistent, reliable water transfer is necessary.
Features:
- AISI 304 stainless steel hydraulic construction
- Close-coupled design for compact integration
- Asynchronous motor with external ventilation
- Suitable for continuous heavy-duty liquid handling
- Meets EN 60034-1 electrical performance standards
- Designed for high-flow water distribution requirements
SPECIFICATIONS
| Max Flow | 520 L/Min |
| Max Head | 22.9 m |
| Power | 2.45 kW / 415v |
| Rated Current | 4.53 Amps |
| Suitable For | Agricultural Water Supply |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | -10°C to +110°C |
| Inlet Size | 50 mm |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What motor kilowatt power and three-phase electrical feed operate this industrial unit?
Electrical parameters for running the CEA370/3V specify a 2.2 kW drive on 380–415 V, 50 Hz, three-phase with a nominal current of 4.53 A and IP55 weatherproof motor enclosure, Class F insulation.
Where should this industrial pump be installed on a horizontal foundation base in utility rooms?
Surface floor mounting on a horizontal rigid base is recommended for the CEA370-3V, installed with an integrated layout in a dry, well-ventilated utility area with proper drainage.
What dynamic elevation head does this high-capacity centrifugal pump provide?
Delivering dependable fluid elevation, the CEA 370 3V achieves a maximum dynamic head of approximately 24.4 m across its operating envelope.
What delivery flow rate and pipe connection dimensions apply to this transfer pump?
Process liquid transfer is driven by the CEA_370_3V, delivering a peak flow rate of approximately 450 L/Min via Rp 2" (50 mm) suction and Rp 1-1/4" (32 mm) discharge ports.
What metallurgy and mechanical seal alloy configurations provide thermal and fluid corrosion safety?
Corrosion resistance across hot liquid transfer is assured by alloy metallurgy materials in the CEA370/3V, featuring AISI 304 stainless steel casing and closed impeller, with specialized FPM (Viton) elastomers, rated for fluid temperatures from -10°C to +110°C up to 8 bar (PN 8).
