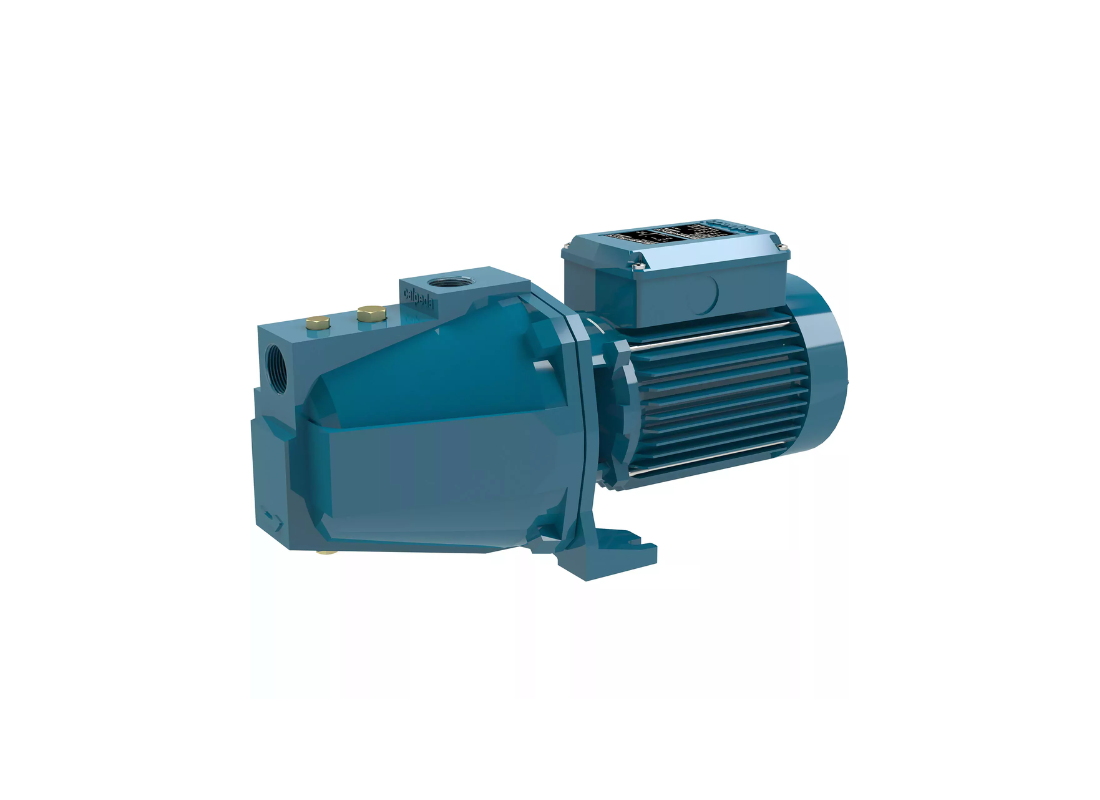

Large-volume clean water transfer and pressure-assisted distribution systems can benefit from the Calpeda NG 7/22 self-priming jet pump in shallow well and utility pumping installations. The integrated ejector arrangement supports dependable suction lift operation for irrigation supply, utility washdown systems, and network pressure support applications.
Performance capability reaches 59 m maximum head with flow rates extending to 9.5 m³/h, delivering balanced hydraulic operation between pressure generation and increased water movement. The pump operates through a three-phase 400V induction motor rated at 2.2 kW with operating current of 5.3 A while maintaining approximately 2900 rpm operating speed for continuous-duty service.
Hydraulic circulation is maintained through a brass impeller arrangement supporting stable transfer of clean liquids and slightly dirty surface water. Noryl diffuser and nozzle elements assist controlled liquid acceleration within the self-priming system while supporting dependable suction-assisted hydraulic performance during varying flow demand.
The pump casing, casing cover, and diffuser plate utilize cast iron construction for structural integrity under elevated operating pressure conditions. A carbon ceramic mechanical seal with NBR elastomer support components assists leakage control, while the motor assembly integrates class F insulation and IP54 environmental protection. Maximum liquid temperature reaches 40°C with permissible working pressure capability up to 10 bar.
FEATURES- Integrated ejector arrangement supporting self-priming shallow well operation
- Brass impeller arrangement supporting stable high-volume hydraulic transfer
- Noryl PPO-GF20 diffuser and nozzle assembly assisting flow stabilization
- Close-coupled pump and motor construction minimizing alignment requirements
- Three-phase motor configuration designed for continuous-duty applications
- Carbon ceramic sealing system with NBR elastomer support materials
- Class F insulated motor enclosure with IP54 protection specification
- Cast iron hydraulic structure supporting elevated working pressure operation
