SKU: DOMOGRI11CG

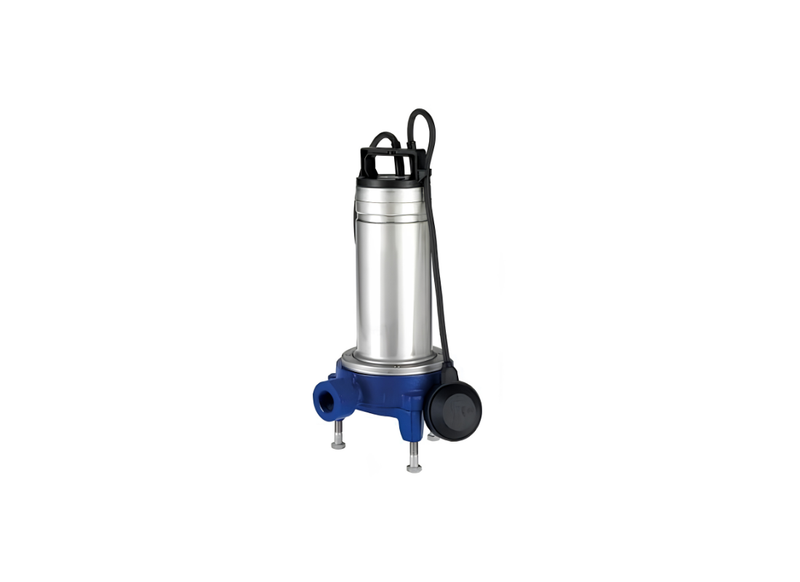

Lowara DOMOGRI11CG Stainless Steel Auto Float Grinder Pump for Sewage Pumping with Technopolymer Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Confronting active wastewater environments, the DOMOGRI11CG grinder pump for dirty water that contains solids supports heavy sewage networks. The external housing utilizes premium stainless steel to defend against abrasive particulate matter. This specific setup is intended to support operation within residential sumps.
Hydraulic parameters establish the limits of this single-phase solution, providing a maximum head of approximately 21.7 m and a peak extraction rate of 102 L/Min. The system is driven by a 1.1 kW motor functioning on a 240 V electrical supply, drawing a rated current of 5.41 Amps. Processed wastewater is channeled through a 25 mm threaded delivery port.
Internal maceration relies upon a cutting mechanism forged from high resistance stainless steel to break down sewage debris. Working with a technopolymer PBT impeller, this mechanical arrangement allows the slurry to traverse small discharge pipes. This model accommodates SD lowering device installations using a guide rail configuration for access.
Protecting the core electrical infrastructure is the advanced DRIVELUB system, integrating an oil chamber with a silicon carbide mechanical seal. Thermal boundaries dictate a maximum liquid temperature threshold of 35°C. This automated variant includes a pre-assembled float switch designed to assist with fluid level management during active draining cycles.
Features
- Rated for IPX8 waterproof protection during completely submerged operations
- Features a dry motor configuration structurally designed to support continuous duty
- Engineered with Class 155°C (F) electrical insulation properties
- Safely accommodates a maximum immersion depth of up to 5 m
- Includes a built-in capacitor integrated directly into the electrical circuit
- Incorporates thermo-amperometric overload protection to manage overheating
- Supplied with a heavy-duty H07RN-F power cord and standard connection plug
SPECIFICATIONS
| Max Flow | 102 L/Min |
| Max Head | 21.7 m |
| Power | 1.1 kW / 240v |
| Rated Current | 5.41 Amps |
| Suitable For | Sewage Pumping |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum immersion depth in meters and permissible liquid operating temperature are rated for this submersible grinder sewage pump?
Supporting across submersible wastewater pits, the DOMOGRI11CG supports a maximum 5 m immersion depth with permissible liquid operating temperatures up to 35°C and manages hardened grinder cutter macerating solids for 25 mm pipework.
What maximum upward dynamic head performance does this submersible grinder sewage pump deliver?
Discharging across facility piping systems, the DOMOGRI-11-CG maintains a maximum dynamic head of approximately 21.7 m across vertical piping.
Through its discharge port assembly, what maximum fluid delivery volume does this submersible grinder sewage pump provide?
Displacing across commercial distribution lines, the DOMOGRI 11 CG outputs a peak liquid flow volume of approximately 102 L/Min through Rp 1-1/4" (32 mm) discharge threaded port.
Regarding material durability, what alloy materials and mechanical face seal construction protect this submersible grinder sewage pump?
Supplied with resilient metallurgy construction, the DOMOGRI_11_CG utilizes alloy construction of cast iron pump casing with wear-resistant hardened stainless steel grinder cutter backed by mechanical face seals to prevent fluid corrosion.
What motor kilowatt power rating and electrical supply voltage current draw run this submersible grinder sewage pump?
Employing by industrial electrical lines, the DOMOGRI11CG operates via an electric motor rated at 1.1 kW (1.5 HP) on a supply voltage of 220–240 V, 50 Hz, single-phase at 5.41 A.
