SKU: DOMOGRI11CGHF

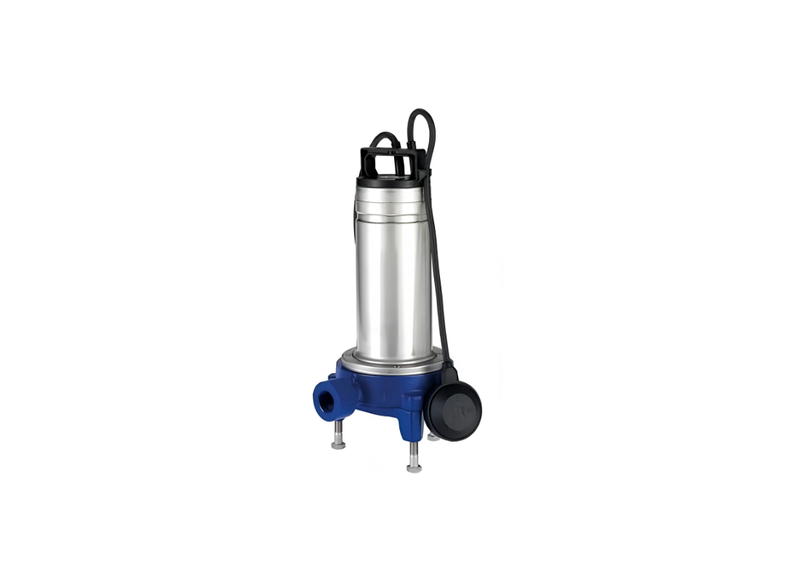

Lowara DOMOGRI11CGHF Stainless Steel High Flow Auto Float Grinder Pump for Sewage with Technopolymer Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Addressing demanding volume requirements, the DOMOGRI11CGHF grinder pump for dirty water that contains solids helps manage expanding sanitation infrastructures. The stainless steel body provides defense against corrosive particulate matter. This configuration is intended to support operation in active flooded areas.
Scaling up extraction capabilities, this single-phase high-flow asset generates an impressive peak flow of 180 L/Min alongside a maximum head of approximately 15.5 m. The unit relies on a 1.1 kW motor powered by a 240 V connection, demonstrating a rated current of 4.97 Amps. Rapid fluid evacuation is routed through an expanded 32 mm threaded outlet.
The critical breakdown of suspended debris is handled by a high resistance stainless steel grinder mechanism. Paired directly with a technopolymer PBT impeller, the internal geometry processes tough slurry rapidly. To assist with deep well deployment, the housing is compatible with an SD lowering device setup using a dedicated automatic coupling base.
Infiltration defense is managed by a DRIVELUB sealing system, leveraging an oil chamber to protect the silicon carbide mechanical seal. Environmental boundaries are set at a maximum liquid temperature of 35°C. Providing autonomous capability, this high-flow model is equipped with a pre-assembled float switch for reliable tank control.
Features
- Manufactured with an IPX8 submersion rating intended for harsh liquid containment
- Equipped with an advanced Class 155°C (F) motor insulation architectural framework
- Tolerates extreme vertical placement with a maximum immersion depth limit of 5 m
- Includes an integrated built-in capacitor element to balance electrical supply loads
- Features highly responsive thermo-amperometric overload protection circuitry
- Relies upon a highly resilient dry motor structural layout to extend operational life
SPECIFICATIONS
| Max Flow | 180 L/Min |
| Max Head | 15.5 m |
| Power | 1.1 kW / 240v |
| Rated Current | 4.97 Amps |
| Suitable For | Flooded Areas |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which alloy materials and mechanical seal specifications deliver corrosion resilience in this submersible grinder sewage pump?
Supplied for harsh corrosive applications, the DOMOGRI11CGHF provides alloy metallurgy of cast iron pump casing with wear-resistant hardened stainless steel grinder cutter paired with mechanical seals to protect against corrosion.
In commercial electrical feeds, what motor kilowatt rating and electrical operating voltage support this submersible grinder sewage pump?
Employing from facility electrical circuits, the DOMOGRI-11-CGHF incorporates an electric motor rated at 1.1 kW (1.5 HP) connecting to 220–240 V, 50 Hz, single-phase with current feed of 4.97 A.
Regarding submersible operating margins, what maximum immersion depth and fluid temperature protect this submersible grinder sewage pump?
Accommodating in effluent pit environments, the DOMOGRI 11 CGHF operates with a maximum 5 m immersion depth across operating liquid temperatures up to 35°C and manages hardened grinder cutter macerating solids for 25 mm pipework.
When elevating liquid across risers, what maximum dynamic head does this submersible grinder sewage pump reach?
Discharging through plant water circuits, the DOMOGRI_11_CGHF provides a peak dynamic lift head of approximately 15.5 m pushing water upward.
How many liters per minute of fluid flow are discharged through the outlet port of this submersible grinder sewage pump?
Displacing through system pipework runs, the DOMOGRI11CGHF supplies a maximum fluid delivery volume of approximately 180 L/Min through Rp 1-1/4" (32 mm) discharge threaded port.
