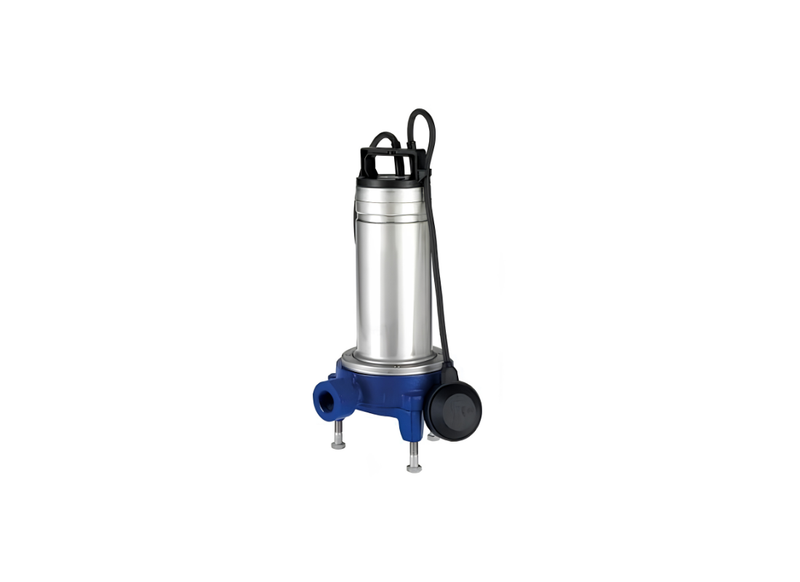

Lowara DOMOGRI15CG Stainless Steel Auto Float Grinder Pump for Pressurized Sewers with Technopolymer Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Addressing rigorous safety containment profiles, the DOMOGRI15CG grinder pump for dirty water that contains solids helps manage expanding facility layouts. The stainless steel casing provides crucial defense against corrosive particulate matter. This structural setup is intended to support operation during active residential sewage pumping tasks.
Evaluating vertical extraction capabilities, this single-phase asset generates a maximum head of approximately 27.1 m and a peak flow of 144 L/Min. The system utilizes a capable 1.5 kW motor powered by a 240 V connection, drawing a rated current of 8.44 Amps. Fluid evacuation is correctly routed through an expanded 32 mm threaded outlet port.
The critical breakdown of suspended debris is handled by an internal high-resistance stainless steel grinder mechanism. Paired with a technopolymer PBT impeller, the internal geometry processes tough slurry. To assist with deep well deployment, the housing is fully compatible with an SD lowering device setup using an automatic coupling base.
Infiltration defense is managed by the DRIVELUB sealing system, leveraging an internal oil chamber to protect the silicon carbide mechanical seal. Environmental boundaries are set strictly at a maximum liquid temperature of 35°C. Providing autonomous capability, this variant is equipped with a pre-assembled float switch to assist with fluid level management.
Features
- Manufactured with an IPX8 submersion rating intended for harsh liquid containment
- Equipped with an advanced Class 155°C (F) motor insulation architectural framework
- Tolerates extreme vertical placement with a maximum immersion depth limit of 5 m
- Features highly responsive thermo-amperometric overload protection circuitry
- Relies upon a highly resilient dry motor structural layout to extend operational life
- Supplied directly with a heavy-duty H07RN-F power cord and standard connection plug
SPECIFICATIONS
| Max Flow | 144 L/Min |
| Max Head | 27.1 m |
| Power | 1.5 kW / 240v |
| Rated Current | 8.44 Amps |
| Suitable For | Flooded Areas |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum dynamic lift head does this submersible grinder sewage pump sustain across vertical pipework?
Moving across vertical pipe runs, the DOMOGRI15CG produces a maximum dynamic head of approximately 27.1 m to lift fluid upward.
Across commercial transfer lines, what peak volumetric flow and outlet port dimensions does this submersible grinder sewage pump maintain?
Facilitating across connected plumbing lines, the DOMOGRI-15-CG delivers a peak delivery flow rate of approximately 144 L/Min discharging through Rp 1-1/4" (32 mm) discharge threaded port.
How does the alloy metallurgy and mechanical face seal construction guard this submersible grinder sewage pump against corrosive attack?
Integrated with alloy metallurgy components, the DOMOGRI 15 CG features alloy construction of cast iron pump casing with wear-resistant hardened stainless steel grinder cutter with mechanical face seals to resist corrosion and chemical attack.
Which motor power in kilowatts and operating electrical voltage current feed power this submersible grinder sewage pump?
Accepting by commercial electrical feeds, the DOMOGRI_15_CG is powered by an electric motor rated at 1.5 kW (2.0 HP) running on 220–240 V, 50 Hz, single-phase with a current draw of 8.44 A.
For safe underwater pumping, what maximum immersion depth in meters and liquid temperature apply to this submersible grinder sewage pump?
Accommodating across submersible wastewater pits, the DOMOGRI15CG sustains a maximum 5 m immersion depth with liquid operating temperatures up to 35°C and manages hardened grinder cutter macerating solids for 25 mm pipework.
