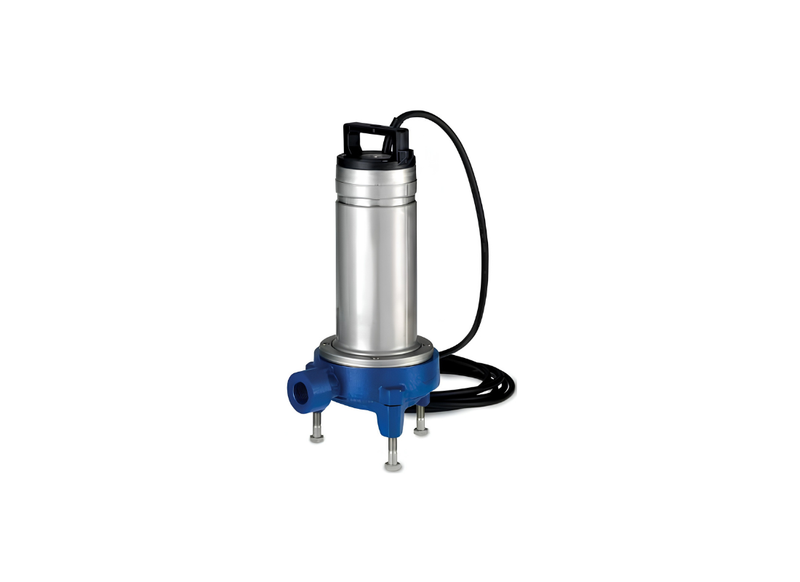

Lowara DOMOGRI15SG Stainless Steel Manual Grinder Pump for Draining Flooded Areas with Technopolymer Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Utilizing resilient casting configurations, the DOMOGRI15SG grinder pump for dirty water that contains solids is formatted for demanding extraction environments. The exterior casing leverages specialized stainless steel to mitigate the impact of suspended particulates. This architecture is intended to support operation within complex septic tank layouts.
Fluid displacement capabilities define this single-phase asset, generating a maximum head of approximately 27.1 m and delivering a peak volume of 144 L/Min. Power is supplied via a 1.5 kW motor operating on a 240 V source, pulling a rated current of 8.44 Amps. The effluent is evacuated through a 32 mm threaded discharge outlet.
The hydraulic core relies on a high-resistance stainless steel grinder engineered to systematically process complex matter. Paired with a technopolymer PBT impeller, the internal geometry allows macerated material to pass seamlessly. This unit is completely compatible with specialized SD lowering device arrangements utilizing an automatic coupling base.
Defending the mechanics is a specialized DRIVELUB system combining a silicon carbide mechanical seal with an active oil chamber. The pump securely handles a maximum liquid temperature of 35°C during active submersion. Constructed without an integrated float switch, this manual model is configured for external facility control panel integration.
Features
- Manufactured utilizing a dry motor layout tailored for rigorous displacement demands
- Constructed with a premium Class 155°C (F) internal motor insulation rating
- Tested to maintain an IPX8 waterproof rating across extended operational cycles
- Built to support safe deployment reaching a maximum immersion depth of 5 m
- Features an integrated thermo-amperometric switch for active overload defense
- Delivered with a highly durable H07RN-F power cable featuring an attached plug
SPECIFICATIONS
| Max Flow | 144 L/Min |
| Max Head | 27.1 m |
| Power | 1.5 kW / 240v |
| Rated Current | 8.44 Amps |
| Suitable For | Septic Tanks |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
In facility plumbing installations, what maximum flow volume and discharge connection sizing apply to this submersible grinder sewage pump?
Facilitating across facility piping networks, the DOMOGRI15SG maintains a maximum delivery flow volume of approximately 144 L/Min across Rp 1-1/4" (32 mm) discharge threaded port.
Regarding corrosion resilience, what alloy composition and mechanical face seal materials protect this submersible grinder sewage pump?
Integrated with corrosion-resistant alloy materials, the DOMOGRI-15-SG incorporates alloy metallurgy of cast iron pump casing with wear-resistant hardened stainless steel grinder cutter and precision mechanical seals to guard against corrosion.
Under nominal electrical service, what supply voltage current and motor kilowatt power energize this submersible grinder sewage pump?
Accepting by facility power panels, the DOMOGRI 15 SG utilizes an electric motor rated at 1.5 kW (2.0 HP) operating on 220–240 V, 50 Hz, single-phase drawing 8.44 A.
Across submerged pit duties, what permissible liquid operating temperature and immersion depth apply to this submersible grinder sewage pump?
Accommodating across submerged utility sumps, the DOMOGRI_15_SG supports a maximum 5 m immersion depth with permissible liquid operating temperatures up to 35°C and manages hardened grinder cutter macerating solids for 25 mm pipework.
Across elevated transfer piping, what peak dynamic head is generated by this submersible grinder sewage pump?
Moving across building service lines, the DOMOGRI15SG achieves a peak dynamic head of approximately 27.1 m to propel liquid upward.
