SKU: Z875-06-3S

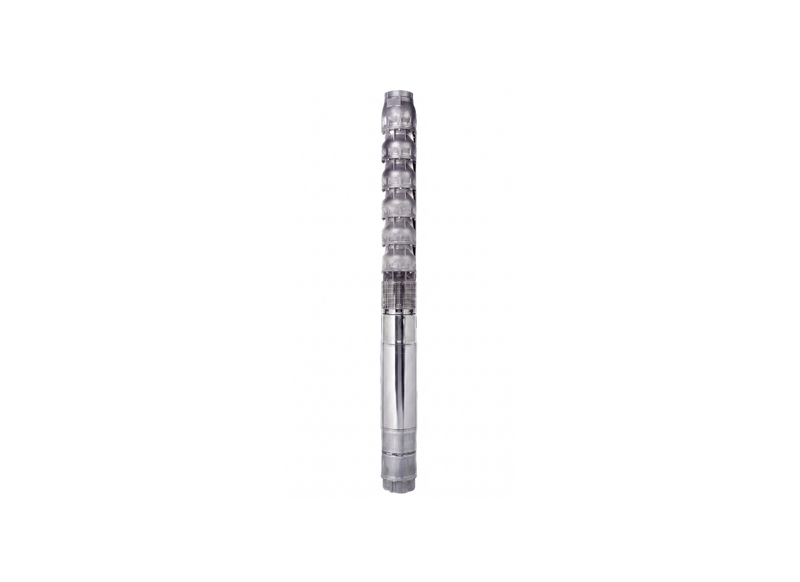

Lowara Z875-06-3S Stainless Steel 37 kW Deep Well 8" Submersible Bore Pump with Semi-Axial Flow Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Corrosive water extraction and municipal supply networks are addressed by the Lowara Z875-06-3S, featuring an AISI 316 stainless steel motor. The pump also handles pressure boosting in high-rise buildings and agricultural irrigation. Industrial water distribution benefits from its corrosion-resistant design.
A 37 kW motor drawing 81.8 Amps at 415V three-phase delivers 159.3 m of head and a maximum flow of 1833.3 L/Min. The 125 mm discharge outlet includes an integrated non-return valve. Performance is presented according to ISO 9906:2012 Grade 3B requirements.
The AISI 304 stainless steel casing houses a semi-axial flow impeller trimmed to 143 mm. The unit weighs 178.1 kg and handles sand-laden water up to 100 g/m³ at 25°C. The AISI 316 motor provides corrosion-resistant construction for aggressive water conditions.
Class F insulation and IP68 enclosure permit submersion to 350 m. The L6WN370 motor incorporates water-lubricated thrust bearings. NEMA flange mounting and dual cable covers maintain the 198 mm diameter for standard well casings.
FEATURES
- AISI 316 stainless steel motor construction provides corrosion-resistant performance in aggressive water
- Stainless steel impeller construction provides durable hydraulic performance for demanding applications
- POM-C wear rings and EPDM guide bearings provide wear-resistant hydraulic components
- NEMA-compliant flange dimensions enable straightforward motor integration
- Suction strainer helps prevent debris ingress into the hydraulic assembly
- Double cable guards help protect power cables from installation damage
- Water-lubricated thrust bearings support axial load management during continuous operation
* Motor and pump supplied separately - requires assembly
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What power input is necessary to run this 37 kW / 415v submersible pump?
Engineered for 415V three-phase operation, the Z875-06-3S incorporates a 37 kW / 415v motor for heavy-duty well pumping.
Can this bore pump overcome deep shaft losses to achieve a total head of 159.3 m?
Delivering up to 159.3 m of head pressure, the Z875-06-3S maintains optimal hydraulic output for high-elevation water transfer.
What flow output and discharge connection diameter are featured on this 1833.3 L/Min pump?
Yielding a peak flow volume of 1833.3 L/Min, the Z875 06 3S incorporates a 125 mm outlet flange for rapid fluid distribution.
What material grades are utilized in the pump casing and motor of this corrosion-resistant unit?
The metallurgical design of the Z875_06_3S relies on AISI 304 stainless steel pump casing paired with an AISI 316 motor to prevent chemical pitting and oxidation underground.
What features prevent backflow water hammer damage when this borehole pump shuts off?
Featuring an integrated spring-loaded check valve inside its discharge head, the Z875-06-3S guards against backflow surge and water hammer shock loads.
