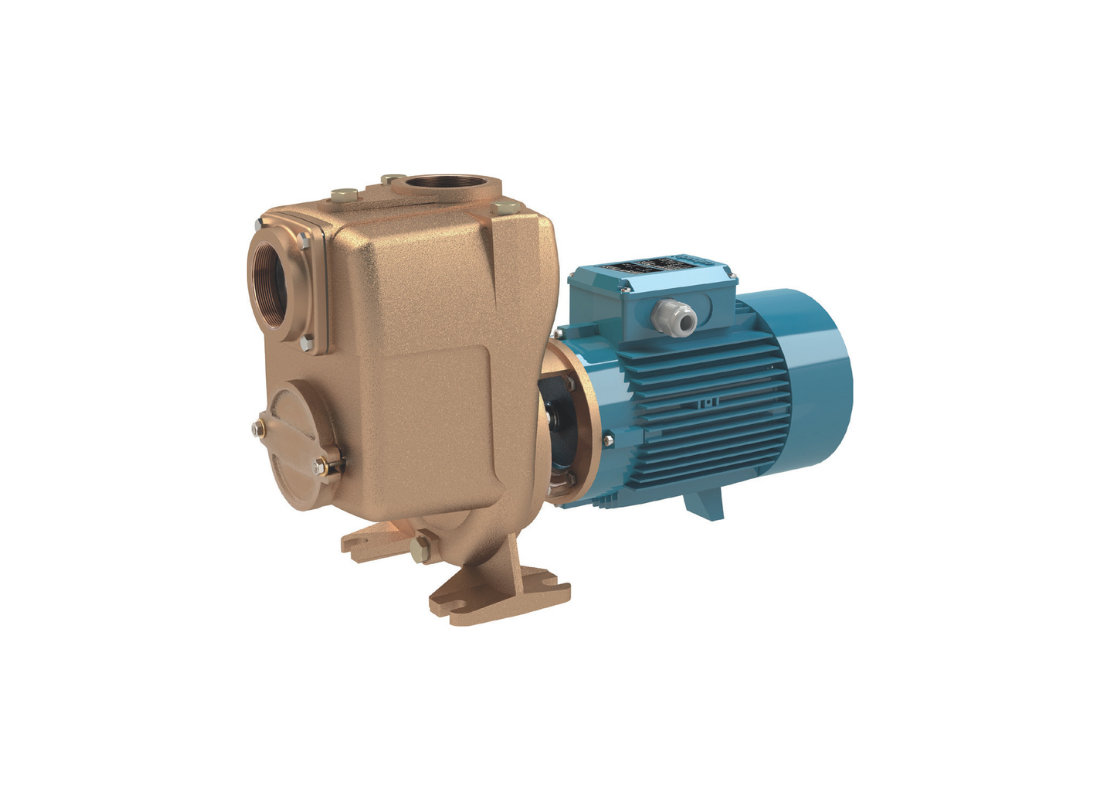

Higher-capacity liquid transfer duties involving clean or slightly dirty water can be handled by the Calpeda B-A 50-125A through its self-priming centrifugal hydraulic configuration. The pump is suited to installations where intermittent suction conditions or partially emptied suction lines may occur during shutdown periods.
Maximum hydraulic flow reaches 33 m³/h while discharge head extends to 19.5 m, supporting elevated transfer performance across moderate-pressure service and utility applications. Power is delivered through a three-phase 415V induction motor producing 1.5 kW rated output power with rated current of 4.3 A and operating speed near 2900 rpm.
An open bronze impeller maintains unrestricted hydraulic circulation while allowing suspended solids up to 10 mm to pass during operation. The self-priming chamber arrangement assists evacuation of air from the suction system during startup, supporting recovery of pumping action without manual repriming after temporary interruption.
Hydraulic components including the casing, impeller, cylindrical suction section, and lantern bracket are manufactured in bronze for compatibility with liquids suited to bronze hydraulic materials. Mechanical sealing relies on carbon ceramic faces with NBR elastomer elements, while the motor assembly incorporates class F insulation and IP54 protection. Operating temperatures from -10°C to 90°C are supported alongside maximum working pressure up to 6 bar.
FEATURES- Self-priming centrifugal hydraulic configuration supporting automatic suction recovery
- Open bronze impeller geometry assisting passage of suspended solids up to 10 mm
- Bronze hydraulic components across major wetted pump sections
- 50 mm threaded suction and discharge port arrangement
- Close-coupled structural layout minimizing mechanical installation requirements
- Carbon ceramic mechanical seal assembly with NBR elastomer support components
- Three-phase induction motor engineered for continuous-duty operation
- IP54 protected motor enclosure combined with class F thermal insulation
