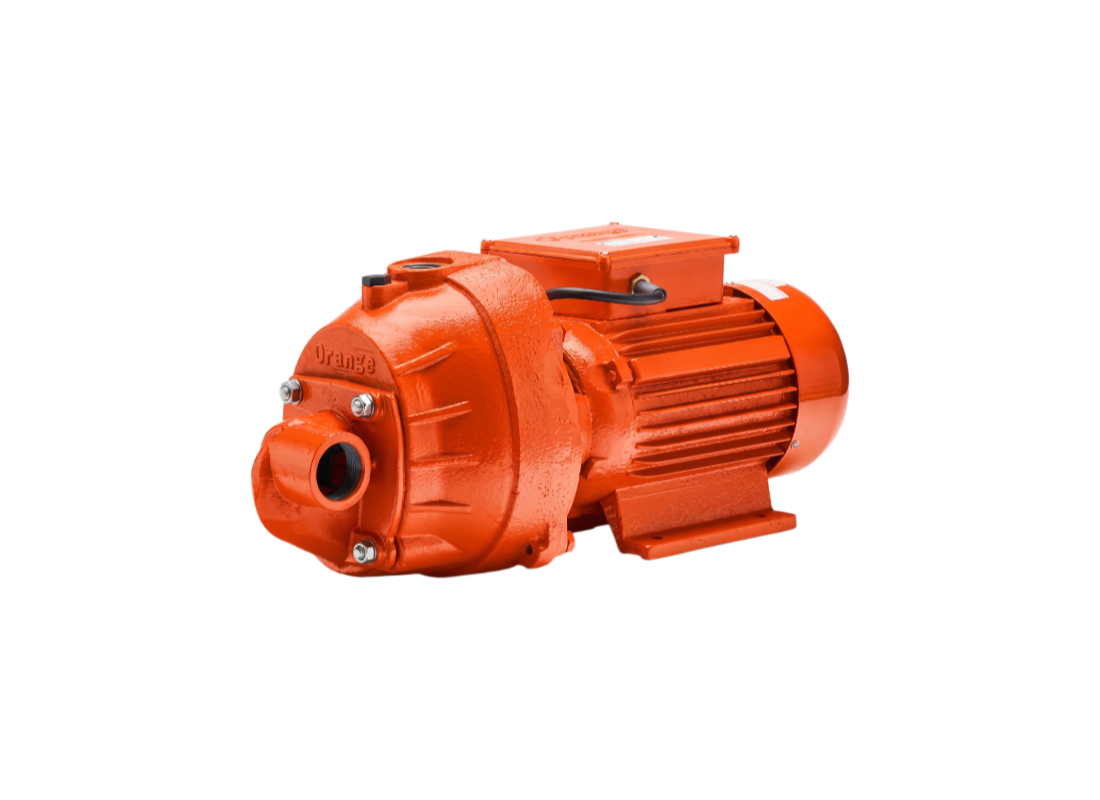

Orange Pumps CJ850-SW89 Cast Iron Shallow Well Jet Pump for Horticultural Irrigation with Single Impeller

Horticultural water distribution and rural irrigation are the primary service duties for this high-output self-priming jet pump, supplied with the SW89 injector, a balanced injector configuration suited to both pressure and flow. It is designed for properties requiring significant water volume delivered with consistent pressure from rivers or underground bores.

This model is powered by a high-performance 2.4 kW single-phase 240V motor that draws a rated current of 14.1 Amps. Hydraulic characteristics include a maximum flow rate of up to 146 L/Min and reaching a maximum head of up to 68 m. This performance profile provides a balanced solution for moving substantial liquid volumes over varied elevations across larger sites.

The SW89 injector works with the jet and venturi system to provide a balance of pressure and flow, utilising the large oval casing to maintain a constant water reservoir around the impeller, ensuring immediate suction establishment. This design is specifically engineered to handle installations with significant static head or long suction lines.

Built for longevity, the pump features a solid cast iron construction and a unique double race bearing system to manage mechanical stress. The motor is designed for full-load operation in high ambient temperatures and features a stainless steel shaft for enhanced corrosion resistance. The unit is rated for liquid temperatures reaching up to 65°C and includes a 2-year Orange Pumps warranty.

FEATURES

• Heavy-duty 2.4 kW motor delivers high torque and dependable service for demanding horticultural and agricultural water distribution.
• Optimised SW89 injector design provides an ideal balance of flow and pressure for nursery and irrigation applications.
• Specialised double race bearing system significantly improves motor life by sharing the load across dual rows of heavy-duty bearings.
• Structural cast iron pump housing ensures maximum durability and protection against rust in harsh outdoor agricultural settings.
• Integrated self-priming capability utilises a large oval-shaped body to quickly displace air and establish suction from surface water sources.
• Precision-machined stainless steel motor shaft provides excellent rust resistance and maintains strict alignment of hydraulic parts.
• Standard thermal motor protection provides a critical fail-safe against overheating during periods of intensive mid-head irrigation.
• TEFC motor enclosure prevents environmental contaminants like dust and moisture from entering the motor, ensuring long-term safety.
