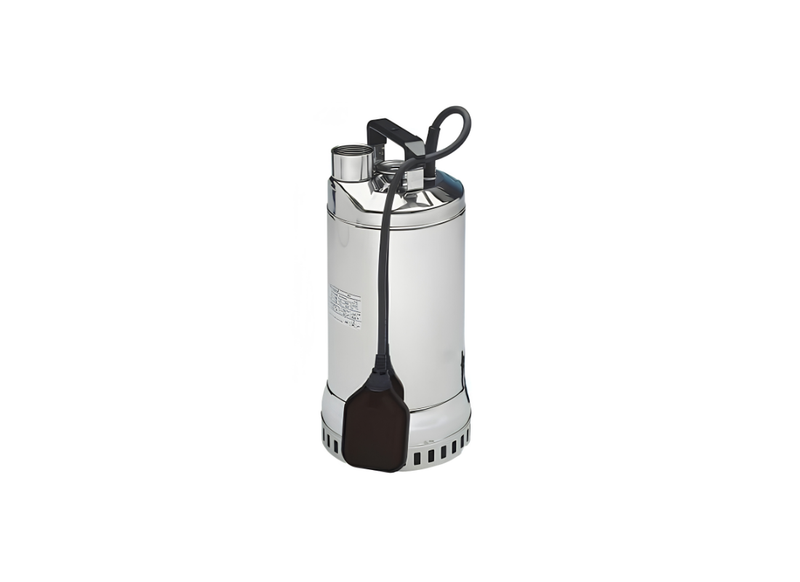

Lowara DIWA11T Stainless Steel Multiple Seal Drainage Pump for Construction Sites with Open Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Engineered to optimize fluid velocity paths, the DIWA11T grey water pump manages high-capacity transfer. Representing submersible pumps for clean and slightly dirty water manufactured in AISI 304 stainless steel, this architecture supports the extraction of fluids from cellars. The system continuously assists the pumping of domestic wastewater.
Fluid is propelled by an open impeller connected to a three-phase 415v configuration without a float switch. The watertight motor utilizes a 1.1 kW output capacity, drawing 2.68 Amps. The assembly delivers a max flow of approximately 375 L/Min and achieves a max head of 13.4 m. The dry motor is cooled by the pumped liquid up to 50°C.
Wear along the primary shaft is controlled by the DRIVELUB SEAL SYSTEM, a seal layout encompassing an internal oil chamber. This merges a V-ring with a silicon carbide seal to supply a barrier against infiltration. The diffuser plate is coated with polyurethane for resistance to abrasion. Intake is managed via a 32 mm base inlet.
With a net weight of 15 kg, the unit provides stable positioning. Pressurized fluid exits through a 32 mm outlet. The device is equipped with a 10-meter H07RN-F power cord, meeting IPX8 standards for absolute submersion. This layout passes suspended solids up to 8 mm while maintaining Class F electrical insulation limits.
Features
- Manufactured utilizing EN 10088-1-X5CrNi18-10 stainless steel for the impeller and motor casing.
- Operates via a three-phase electrical power grid designed for manual or external panel activation.
- Equipped with a Class F insulation framework designed to withstand internal temperatures up to 155°C.
- Includes a specially coated thermoplastic polyurethane diffuser to resist hydraulic sand abrasion.
- Functions reliably under a maximum immersion depth limit of 7 meters inside collection sumps.
- Constructed with standard NBR elastomers for consistent sealing flexibility across the shaft line.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What electrical motor rating in kilowatts and supply voltage current feed are featured on this submersible dewatering drainage pump?
Featuring by industrial electrical lines, the DIWA11T relies on an electric motor rated at 1.1 kW (1.5 HP) energized via 380–415 V, 50 Hz, three-phase drawing 2.68 A.
For dependable submerged service, what permissible liquid temperature and immersion depth limit apply to this submersible dewatering drainage pump?
Certified in wet sump installations, the DIWA-11-T certifies a maximum 7 m immersion depth across allowable temperatures up to 40°C and supports 8 mm suspended solids.
When elevating clean water upward, what dynamic head does this submersible dewatering drainage pump develop?
Achieving across facility piping systems, the DIWA 11 T reaches a maximum dynamic elevation head of approximately 13.4 m across vertical runs.
For downstream water lines, what peak flow volume and discharge port dimensions are featured on this submersible dewatering drainage pump?
Issuing across commercial distribution lines, the DIWA_11_T delivers a peak volumetric flow of approximately 375 L/Min via connected Rp 1-1/2" (40 mm) discharge threaded port.
What alloy metallurgy and mechanical seal materials provide long-term corrosion defense in this submersible dewatering drainage pump?
Created with resilient metallurgy construction, the DIWA11T employs alloy construction of AISI 304 stainless steel pump casing, diffusers, and polyurethane-coated open impeller with mechanical face seals to guard against chemical attack and corrosion.
