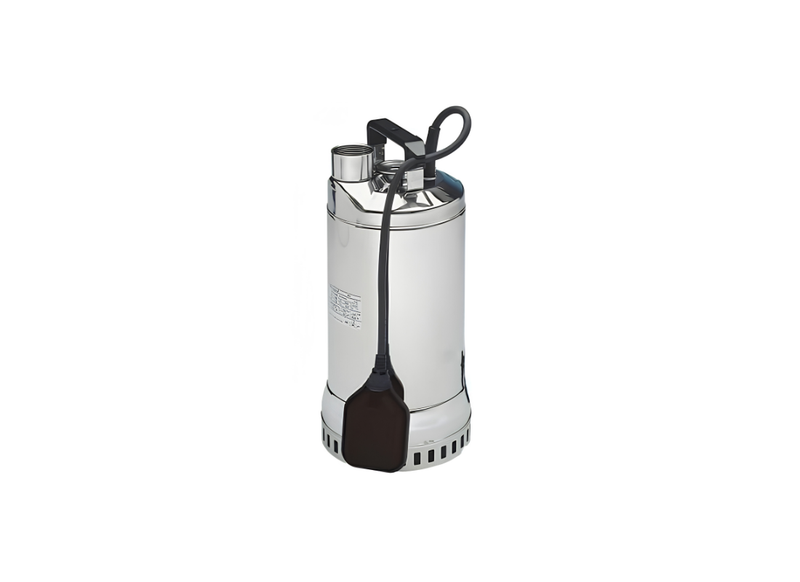

Lowara DIWA5 Stainless Steel Drivelub Drainage Pump for Tank Emptying with Open Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The DIWA5 model handles domestic wastewater, integrating submersible pumps for clean and slightly dirty water manufactured in AISI 304 stainless steel. This grey water pump manages extraction demands associated with emptying tanks and processing output from washing machines. The system supports draining of cellars and basements.
Powered by a single-phase 240v setup, the motor generates 0.55 kW output drawing 3.92 Amps. The assembly achieves a max flow of approximately 250 L/Min and max head of 8.6 m. Thermal overload protection stops supply automatically during overheating. The dry motor uses pumped liquid for cooling up to 50°C.
Wear is controlled by the DRIVELUB SEAL SYSTEM, a multiple seal layout with an internal oil chamber. This merges a V-ring with a silicon carbide seal, creating a barrier against infiltration. The diffuser plate is coated with polyurethane for abrasion resistance. Fluid is driven by an open impeller through a 32 mm inlet and exits via a 32 mm outlet.
Weighing 12 kg, the unit supports stable positioning. A pre-assembled float switch governs operation, activating at a minimum liquid depth of 25 mm. The casing delivers IPX8 protection for submersion. Class F insulation secures the electrical layout alongside a 10-meter H07RN-F power cord, passing suspended solids up to 8 mm.
Features
- Manufactured utilizing EN 10088-1-X5CrNi18-10 stainless steel for the upper cover and robust motor casing.
- Operates with a built-in capacitor to regulate the electrical starting sequence reliably.
- Features a standard lip seal that is continuously lubricated by the internal fluid mechanism.
- Equipped with a motor configured for 2-pole operation operating at 50 Hz frequency.
- Constructed with thermoplastic polyurethane on the diffuser for specialized component protection.
- Includes standard NBR elastomers integrated directly into the mechanical seal configuration.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
In utility electrical loops, what motor power in kilowatts and supply voltage current feed run this submersible dewatering drainage pump?
Incorporating from facility electrical circuits, the DIWA5 connects to 220–240 V, 50 Hz, single-phase with an electric motor rated at 0.55 kW (0.75 HP) requiring 3.92 A.
In terms of submersible installation, what maximum immersion depth limit and fluid temperature govern this submersible dewatering drainage pump?
Operating in effluent pit environments, the DIWA-5 supports a maximum 7 m immersion depth with permissible liquid operating temperatures up to 40°C and manages 8 mm suspended solids.
Under elevation backpressure, what peak vertical lift head does this submersible dewatering drainage pump deliver?
Providing through plant water circuits, the DIWA 5 generates a peak dynamic lift head of approximately 8.6 m under upward push.
What discharge flow capacity in liters per minute and connection port dimensions are rated for this submersible dewatering drainage pump?
Dispatching through system pipework runs, the DIWA_5 discharges a maximum delivery flow volume of approximately 250 L/Min utilizing Rp 1-1/2" (40 mm) discharge threaded port.
Regarding material resilience, what alloy composition and mechanical seal components protect this submersible dewatering drainage pump from corrosion?
Formed for harsh corrosive applications, the DIWA5 combines alloy metallurgy of AISI 304 stainless steel pump casing, diffusers, and polyurethane-coated open impeller with precision mechanical seals to defend against chemical attack.
