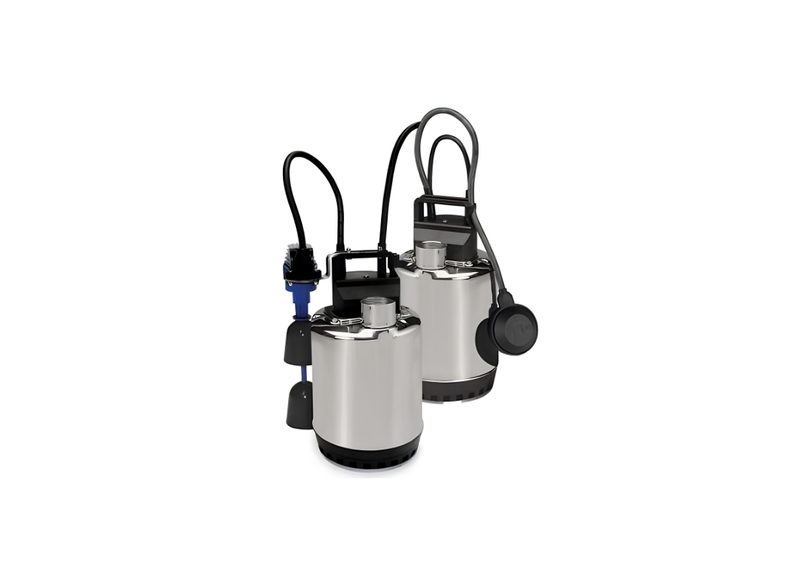

Lowara DOC7T Stainless Steel No Float Submersible Drainage Pump for Residential Sumps with Semi-open Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Addressing the demands of heavy fluid management, the DOC7 Sump Pump (No Float) provides a direct mechanical solution. Configured for passive installations without an automated float switch, this unit integrates into external control panels. Operating on a robust three-phase 415v circuit, the drive draws 1.63 Amps to maintain reliable extraction.
Routing liquids through the volute, the system generates a maximum flow of 225 L/Min. The three-phase 0.55 kW motor pushes extracted fluid vertically, achieving a 10.8 meter max head. Wastewater is expedited outward through a 32 mm threaded discharge port, ensuring rapid draining of flooded basements or holding tanks.
Formed to withstand underwater exposure, the housing utilizes 304 Stainless Steel and Noryl polymers to resist abrasive elements. This layout minimizes degradation while holding a 6 kg net weight. The semi-open impeller is engineered to process suspended solid debris up to 10mm in diameter without causing structural blockages inside the main unit.
Engineered to support sustained performance, the dry motor relies entirely on the pumped liquid to manage internal temperatures. Utilizing the fluid medium as a cooling agent, it disperses thermal energy beneath the maximum 40°C limit. Supplied without a standard power plug, the assembly allows technicians to hardwire the system securely.
Features
- Permits a maximum operational immersion depth of 5 meters
- Constructed utilizing highly durable IPX8 rated protection
- Motor operates securely with Class 130 (B) thermal insulation
- System is provided entirely without an electrical plug fitting
- Supplied directly with a standard 10 meter length power cord
- Net Weight: 6 kg
SPECIFICATIONS
| Max Flow | 225 L/Min |
| Max Head | 10.8 m |
| Power | 0.55 kW / 415v |
| Rated Current | 1.63 A |
| Suitable For | Residential Sumps |
| Body Material | Noryl and 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
In technical water loops, what maximum fluid volume and connection port diameter are engineered into this submersible drainage sump pump?
Dispatching through primary discharge ports, the DOC7T maintains a maximum delivery flow volume of approximately 225 L/Min across Rp 1-1/4" (32 mm) vertical discharge threaded port.
What metallurgy construction and mechanical seal materials ensure corrosion resilience in this submersible drainage sump pump?
Formed for aggressive liquid service, the DOC-7-T incorporates alloy metallurgy of corrosion-proof technopolymer casing and stainless steel motor body and precision mechanical seals to guard against corrosion.
Regarding electrical power specifications, what motor kilowatt power and operating voltage feed are rated on this submersible drainage sump pump?
Incorporating from standard electrical distribution, the DOC 7 T utilizes an electric motor rated at 0.55 kW (0.75 HP) operating on 380–415 V, 50 Hz, three-phase drawing 1.63 A.
For safe submersible operation, what maximum immersion depth limit and liquid temperature are specified for this submersible drainage sump pump?
Submerged across submerged utility sumps, the DOC_7_T certifies a maximum 5 m immersion depth across allowable temperatures up to 40°C and supports 10 mm solids passage.
What upward dynamic lift head is produced by this submersible drainage sump pump under design operation?
Providing through tall plumbing risers, the DOC7T achieves a peak dynamic head of approximately 10.8 m to propel liquid upward.
