SKU: DOMO10T

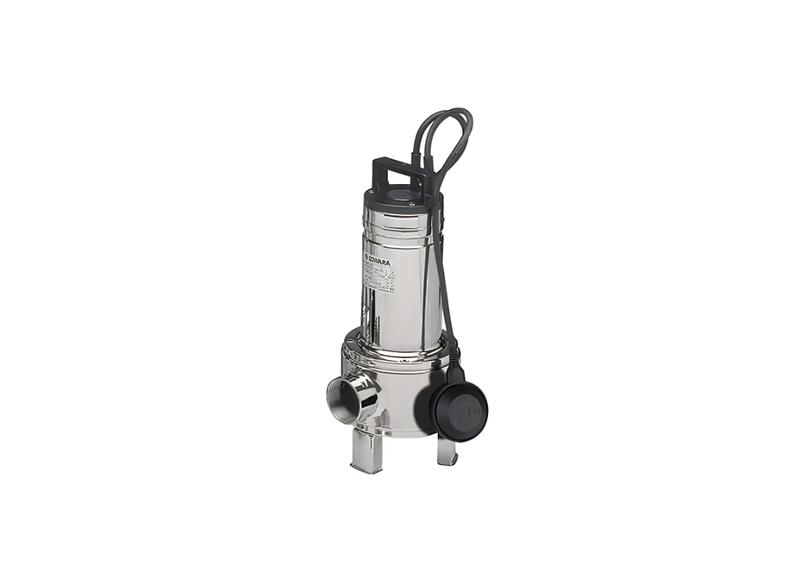

Lowara DOMO10T Stainless Steel Three-Phase Submersible Drainage Pump for Raw Effluent with Channel Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Optimizing internal fluid velocity paths, the DOMO 10T Channel Impeller model establishes uncompromised circulation stability. The Lowara DOMO 10T is strictly developed for the efficient pumping of effluent, ensuring precise momentum transfer through demanding industrial fluid environments without blockages.
Engineered to mitigate wastewater accumulation, the 304 Stainless Steel casing provides an impermeable barrier against physical wear. This exterior casting is designed for continuous submersion, safely processing liquids containing abrasive suspended solids up to 50 mm in diameter while maintaining shaft alignment.
The watertight electric motor utilizes a 0.75 kW Three-phase 415v power configuration, pulling a rated current of 2.36 Amps to generate necessary mechanical force. The dry motor design effectively regulates internal heat by transferring it to the surrounding liquid, supporting prolonged operational phases within the maximum 35°C liquid temperature boundary.
Delivering high-volume output, this pump achieves a maximum flow capacity of approximately 500 L/Min and sustains a maximum head of 8.5 m. The unit features 50 mm inlet and outlet port dimensions to reduce fluid turbulence. Furthermore, the motor remains completely protected by the DRIVELUB multiple seal system and a heavy-duty silicon carbide mechanical seal.
Features
- Features an advanced Channel Impeller designed to clear abrasive fluid volumes.
- Constructed primarily from high-grade 304 Stainless Steel for structural integrity.
- Engineered with a DRIVELUB multiple seal system to safeguard internal components.
- Equipped with a silicon carbide mechanical seal ensuring long-term wear resistance.
- Designed to successfully process complex liquids with large suspended solids.
- Features an efficient dry motor layout optimized for continuous submersion.
- Incorporates IPX8 protection and Class 155°C (F) thermal insulation.
SPECIFICATIONS
| Max Flow | 500 L/Min |
| Max Head | 8.5 m |
| Power | 0.75 kW / 415v |
| Rated Current | 2.36 Amps |
| Suitable For | Effluent, Flooded basements |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Regarding alloy protection, what metallurgy composition and mechanical seal faces protect this submersible sewage wastewater pump against corrosion?
Furnished for aggressive liquid service, the DOMO10T provides alloy metallurgy of AISI 304 stainless steel motor casing and pump body with Drivelub mechanical seals paired with mechanical seals to protect against corrosion.
Regarding electrical drive specifications, what motor kilowatt rating and supply voltage current run this submersible sewage wastewater pump?
Utilizing from standard electrical distribution, the DOMO-10-T incorporates an electric motor rated at 0.75 kW (1.0 HP) connecting to 380–415 V, 50 Hz, three-phase with current feed of 2.36 A.
How deep underwater does this submersible sewage wastewater pump operate and what fluid temperature limits apply?
Sustaining under wet well operations, the DOMO 10 T supports a maximum 5 m immersion depth with permissible liquid operating temperatures up to 35°C and manages 50 mm solids passage.
What dynamic head elevation capability is engineered into this submersible sewage wastewater pump?
Attaining through tall plumbing risers, the DOMO_10_T provides a peak dynamic lift head of approximately 8.5 m pushing water upward.
How much volumetric delivery in liters per minute is maintained through the outlet port of this submersible sewage wastewater pump?
Transmitting through primary discharge ports, the DOMO10T supplies a maximum fluid delivery volume of approximately 500 L/Min through Rp 2" (50 mm) discharge threaded port.
