SKU: DOMO10VX

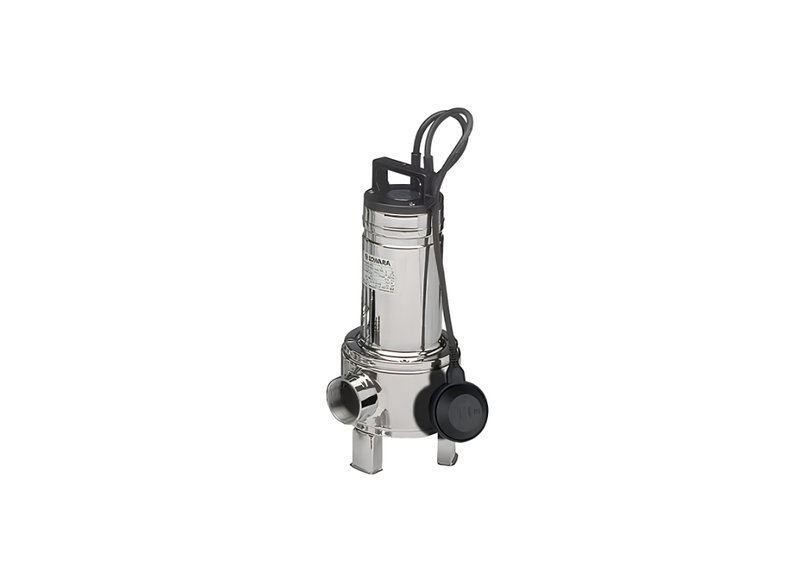

Lowara DOMO10VX Stainless Steel Single-Phase Submersible Drainage Pump for Waste Fluids with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Designed to provide secure fluid processing in demanding environments, this DOMO 10VX Vortex Impeller, Auto Float pump establishes reliable wastewater transfer. The Lowara DOMO 10VX focuses explicitly on mitigating particulate clogs, creating a unique fluid dynamic intended to support the emptying of septic tanks. The advanced configuration produces significant internal momentum.
The core structure incorporates a heavy-duty 304 Stainless Steel casting, delivering an uncompromising defensive layer against the abrasive elements typical of effluent processing. Utilizing a specialized vortex mechanism, the pump safely handles liquids with suspended solids up to 50 mm. This structural approach prevents degradation while allowing the system to operate continuously in submerged scenarios.
Operating on a 0.75 kW Single-phase 240v power configuration, this robust unit draws a steady 5.88 Amps. The internal dry motor is meticulously sealed and utilizes the surrounding ambient liquid for critical thermal dissipation, maintaining performance within the maximum 35°C temperature envelope. This precise power-to-torque calibration enables rapid dewatering procedures.
Engineered for significant hydraulic output, this pump maintains a maximum flow rate of approximately 400 L/Min and a maximum head of 7.3 m. The expansive 50 mm inlet and outlet port dimensions facilitate the rapid transit of contaminated fluids. The watertight electric motor is protected by the sophisticated DRIVELUB multiple seal system, incorporating a silicon carbide mechanical seal and an oil chamber.
Features
- Utilizes a specialized Vortex Impeller allowing unobstructed passage.
- Constructed from heavy-duty 304 Stainless Steel.
- Equipped with a DRIVELUB multiple seal system.
- Features a highly resilient silicon carbide mechanical seal.
- Engineered to easily process challenging wastewater and heavy effluent.
- Includes an integrated automatic float switch for fluid level actuation.
- Configured with IPX8 protection and Class 155°C (F) insulation.
SPECIFICATIONS
| Max Flow | 400 L/Min |
| Max Head | 7.3 m |
| Power | 0.75 kW / 240v |
| Rated Current | 5.88 Amps |
| Suitable For | Septic tanks, Effluent |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
For safe underwater duty, what permissible operating temperature and immersion depth limit protect this submersible sewage wastewater pump?
Sustaining in wet sump installations, the DOMO10VX provides a maximum 5 m immersion depth with fluid operating temperatures up to 35°C and accommodates 50 mm solids passage.
When pushing fluid through vertical lines, what dynamic lift head does this submersible sewage wastewater pump attain?
Attaining across vertical pipe runs, the DOMO-10-VX maintains a maximum dynamic head of approximately 7.3 m across vertical piping.
Through connected discharge plumbing, what maximum fluid volume and port diameter does this submersible sewage wastewater pump output?
Transmitting across connected plumbing lines, the DOMO 10 VX outputs a peak liquid flow volume of approximately 400 L/Min through Rp 2" (50 mm) discharge threaded port.
In aggressive liquid applications, what alloy construction and mechanical seals guard this submersible sewage wastewater pump from corrosion?
Furnished with alloy metallurgy components, the DOMO_10_VX utilizes alloy construction of AISI 304 stainless steel motor casing and pump body with Drivelub mechanical seals backed by mechanical face seals to prevent fluid corrosion.
Which motor power kilowatt rating and operating voltage current draw power this submersible sewage wastewater pump?
Utilizing by commercial electrical feeds, the DOMO10VX operates via an electric motor rated at 0.75 kW (1.0 HP) on a supply voltage of 220–240 V, 50 Hz, single-phase at 5.88 A.
