SKU: DOMO10VXT

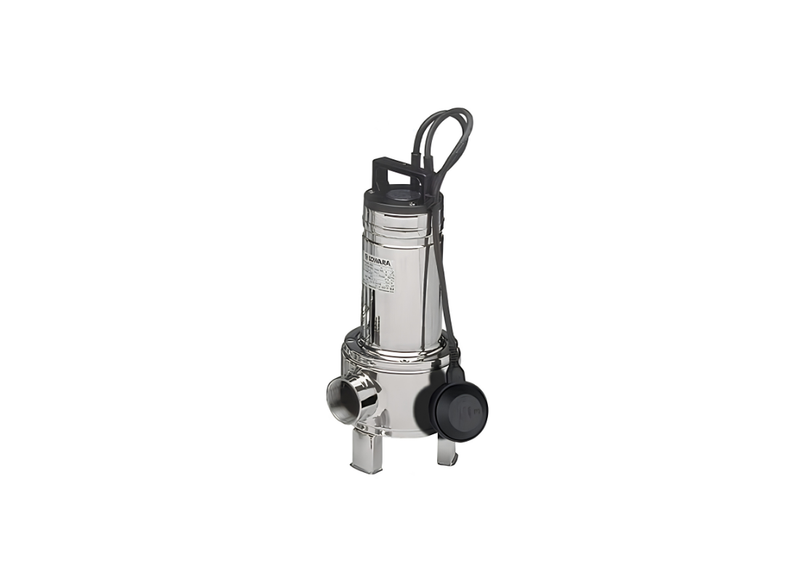

Lowara DOMO10VXT Stainless Steel 10m Cable Submersible Drainage Pump for Septic Waste with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Constructed from resilient 304 Stainless Steel, the DOMO 10VXT Vortex Impeller model delivers a structural boundary against degradation. The Lowara DOMO 10VXT utilizes this heavy-duty casting to protect drive mechanisms during extended submersion. This external architecture safely shields the unit from the abrasive impacts of heavy industrial wastewater.
Generating mechanical torque, the pump features a 0.75 kW Three-phase 415v motor assembly operating with a rated current of 2.36 Amps. The internal dry motor layout utilizes the surrounding liquid for crucial thermal dissipation. This exchange allows the unit to sustain rigorous pumping sequences within the strict maximum 35°C liquid temperature limitation.
Maintaining strong extraction capabilities, this system achieves a maximum flow of approximately 400 L/Min and a solid max head of 7.3 m. The 50 mm port configurations reduce internal fluid turbulence. Utilizing a specialized vortex dynamic, the pump safely handles liquids containing large suspended solids up to 50 mm in diameter.
The watertight electric core remains tightly secured by the advanced DRIVELUB multiple seal system. Incorporating an oil chamber, a resilient silicon carbide mechanical seal, and a V-ring, the unit resists fluid infiltration. This multi-layered barrier ensures the lip seal stays continuously lubricated, mitigating long-term mechanical wear.
Features
- Equipped with an unobstructed Vortex Impeller for heavy fluids.
- Designed to function effectively up to a 5-meter immersion depth.
- Features standard Class 155°C (F) electrical motor insulation.
- Configured with rigorous IPX8 protection standards.
- Includes a specialized lip seal integrated with the DRIVELUB system.
- Safely accommodates significant suspended solids without internal damage.
SPECIFICATIONS
| Max Flow | 400 L/Min |
| Max Head | 7.3 m |
| Power | 0.75 kW / 415v |
| Rated Current | 2.36 Amps |
| Suitable For | Effluent, Septic tanks |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
In commercial water circuits, what delivery flow volume and discharge connection sizing apply to this submersible sewage wastewater pump?
Transmitting into plant fluid networks, the DOMO10VXT maintains a maximum delivery flow volume of approximately 400 L/Min across Rp 2" (50 mm) discharge threaded port.
In demanding pumping circuits, what alloy metallurgy and mechanical face seals protect this submersible sewage wastewater pump from corrosion?
Furnished against corrosive liquid exposure, the DOMO-10-VXT incorporates alloy metallurgy of AISI 304 stainless steel motor casing and pump body with Drivelub mechanical seals and precision mechanical seals to guard against corrosion.
For reliable electrical hookup, what operating voltage current and motor kilowatt rating power this submersible sewage wastewater pump?
Utilizing under steady electrical current, the DOMO 10 VXT utilizes an electric motor rated at 0.75 kW (1.0 HP) operating on 380–415 V, 50 Hz, three-phase drawing 2.36 A.
Under rigorous submerged service, what maximum immersion depth and fluid temperature apply to this submersible sewage wastewater pump?
Supporting in effluent pit environments, the DOMO_10_VXT provides a maximum 5 m immersion depth with fluid operating temperatures up to 35°C and accommodates 50 mm solids passage.
When lifting fluid upward, what peak dynamic vertical head does this submersible sewage wastewater pump develop?
Attaining in commercial piping networks, the DOMO10VXT achieves a peak dynamic head of approximately 7.3 m to propel liquid upward.
