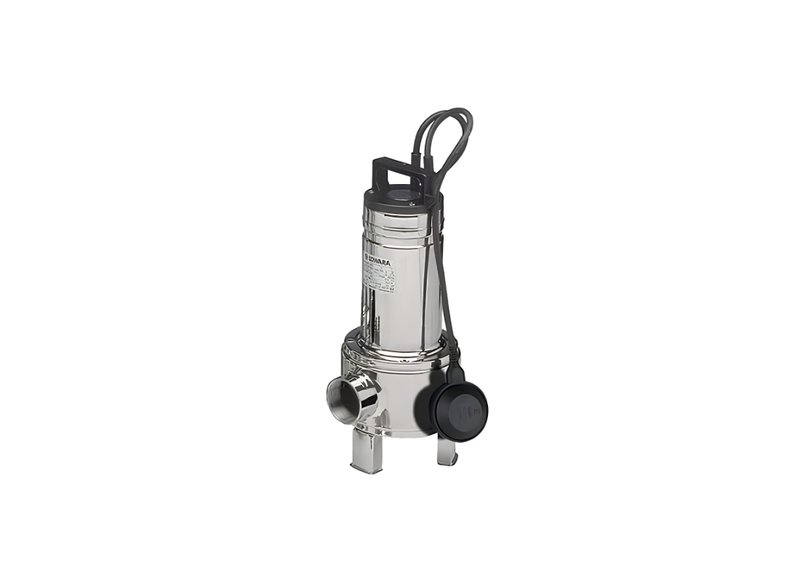

Lowara DOMO15VX Stainless Steel Auto Float Submersible Drainage Pump for Wastewater with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The DOMO 15VX Vortex Impeller, Auto Float is intended to support high-volume wastewater extraction. This Lowara DOMO 15VX unit safely handles heavily contaminated fluids, offering optimal fluid displacement for the draining of flooded basements and garages.
Constructed primarily from 304 Stainless Steel, the outer casing provides exceptional resistance against environmental degradation. This premium protective housing ensures the internal motor system remains structurally intact even during continuous submersion. The specialized Vortex Impeller allows for the unobstructed transit of suspended solids up to 50 mm.
Powered by a reliable 1.1 kW Single-phase 240v motor, the unit pulls 6.11 Amps under rigorous operational duty cycles. The internal dry motor configuration utilizes the surrounding liquid medium for crucial thermal dissipation, ensuring stable mechanical performance within the 35°C liquid temperature limitation.
Delivering robust hydraulic performance, the pump achieves a maximum flow of approximately 550 L/Min and a max head of 8.8 m. The large 50 mm inlet and outlet port dimensions reduce internal friction during heavy effluent transfer. A sophisticated DRIVELUB multiple seal system, incorporating a silicon carbide mechanical seal and an oil chamber, continuously safeguards the motor assembly.
Features
- Features a high-performance Vortex Impeller for clear fluid passage.
- Constructed with a heavy-duty 304 Stainless Steel casing.
- Engineered with a DRIVELUB multiple seal system to prevent moisture infiltration.
- Equipped with a highly resilient silicon carbide mechanical seal.
- Designed to safely accommodate suspended solids up to 50 mm in diameter.
- Pre-assembled with an automatic float switch for fluid level actuation.
- Incorporates IPX8 protection and Class 155°C (F) electrical insulation.
SPECIFICATIONS
| Max Flow | 550 L/Min |
| Max Head | 8.8 m |
| Power | 1.1 kW / 240v |
| Rated Current | 6.11 Amps |
| Suitable For | Flooded basements |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Under duty point conditions, what maximum dynamic vertical head does this submersible sewage wastewater pump maintain?
Attaining across building service lines, the DOMO15VX attains a peak dynamic elevation head of approximately 8.8 m propelling fluid upward.
Regarding system liquid transfer, what peak delivery flow and connection port diameter apply to this submersible sewage wastewater pump?
Transmitting across facility piping networks, the DOMO-15-VX sustains a maximum delivery flow capacity of approximately 550 L/Min plumbed with Rp 2" (50 mm) discharge threaded port.
What metallurgy standards and mechanical face seal materials defend this submersible sewage wastewater pump against corrosive chemical attack?
Furnished with corrosion-resistant alloy materials, the DOMO 15 VX features metallurgy of AISI 304 stainless steel motor casing and pump body with Drivelub mechanical seals complemented by precision mechanical seals to eliminate corrosion leaks.
Under industrial power service, what electrical supply voltage and motor kilowatt current feed energize this submersible sewage wastewater pump?
Utilizing by facility power panels, the DOMO_15_VX is driven by an electric motor rated at 1.1 kW (1.5 HP) powered by 220–240 V, 50 Hz, single-phase drawing 6.11 A.
Across submerged effluent service, what maximum immersion depth and fluid temperature are sustained by this submersible sewage wastewater pump?
Sustaining in effluent pit environments, the DOMO15VX certifies a maximum 5 m immersion depth across allowable temperatures up to 35°C and supports 50 mm solids passage.
