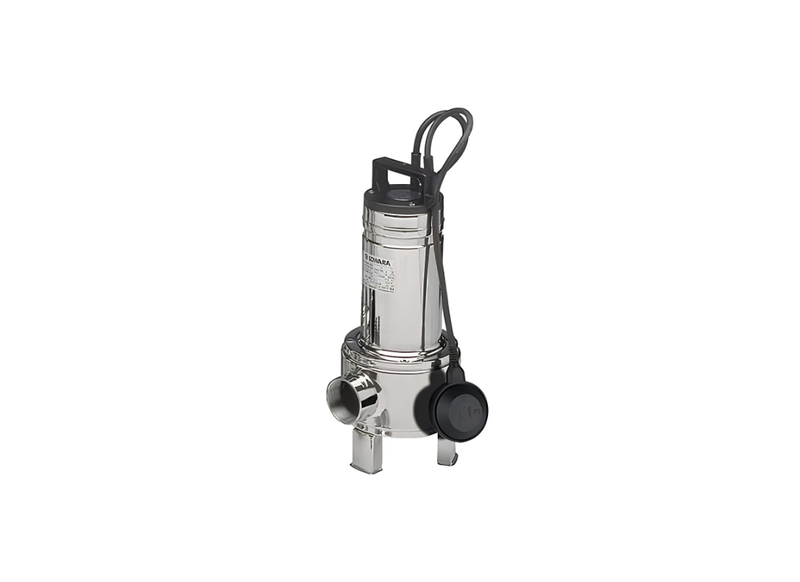

Lowara DOMO15VXT Stainless Steel 50mm Solids Submersible Drainage Pump for Heavy Fluids with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Optimizing internal fluid velocity paths, the DOMO 15VXT Vortex Impeller configuration establishes circulation stability for demanding locations. The Lowara DOMO 15VXT is engineered for pumping heavy effluent, ensuring precise momentum transfer through wastewater systems. The vortex dynamic significantly mitigates the risk of mechanical blockages.
Delivering substantial mechanical output, the system is powered by a 1.1 kW Three-phase 415v motor pulling 2.49 Amps. The watertight dry motor architecture regulates internal heat by transferring it to the ambient fluid. This precise thermodynamic balance permits continuous dewatering safely within the maximum 35°C liquid temperature boundary.
Generating reliable vertical lift, the pump sustains a maximum flow of approximately 450 L/Min and achieves a max head of 8.8 m. The expansive 50 mm port configurations support the transition of viscous fluids. This geometry accommodates abrasive suspended solids up to 50 mm in diameter, preventing excessive wear on the internal drive shaft.
Protected by a heavy-duty 304 Stainless Steel casing, the unit is constructed to operate in fully submerged environments. The core assembly is shielded against moisture by the DRIVELUB multiple seal system. Combining an oil chamber, a V-ring, and a silicon carbide mechanical seal, the pump maintains a resilient defensive barrier.
Features
- Features a high-capacity Vortex Impeller for optimal fluid transit.
- Includes standard IPX8 moisture protection classification.
- Built with Class 155°C (F) electrical motor insulation.
- Equipped with an advanced V-ring and silicon carbide seal.
- Provides safe operation at a maximum immersion depth of 5 meters.
- Maintains continuous lubrication via the DRIVELUB oil chamber.
SPECIFICATIONS
| Max Flow | 450 L/Min |
| Max Head | 8.8 m |
| Power | 1.1 kW / 415v |
| Rated Current | 2.49 Amps |
| Suitable For | Effluent, Basements |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What metallurgy profile and mechanical seal specifications guard this submersible sewage wastewater pump against fluid corrosion?
Supplied with alloy metallurgy components, the DOMO15VXT relies on alloy construction of AISI 304 stainless steel motor casing and pump body with Drivelub mechanical seals paired with mechanical face seals to withstand liquid corrosion.
Which electrical motor specifications and supply voltage current draw are certified for this submersible sewage wastewater pump?
Employing by commercial electrical feeds, the DOMO-15-VXT features an electric motor rated at 1.1 kW (1.5 HP) powered by 380–415 V, 50 Hz, three-phase with a rating of 2.49 A.
For reliable sump operation, what maximum immersion depth limit and liquid temperature protect this submersible sewage wastewater pump?
Supporting under submerged drainage conditions, the DOMO 15 VXT certifies a maximum 5 m immersion depth across allowable temperatures up to 35°C and supports 50 mm solids passage.
Under maximum rotational power, what vertical lift head does this submersible sewage wastewater pump attain?
Discharging across vertical pipe runs, the DOMO_15_VXT develops a maximum dynamic elevation head of approximately 8.8 m to elevate water.
When operating across distribution networks, what maximum flow volume and port diameter does this submersible sewage wastewater pump maintain?
Displacing across connected plumbing lines, the DOMO15VXT provides a peak fluid flow rate of approximately 450 L/Min connecting via Rp 2" (50 mm) discharge threaded port.
