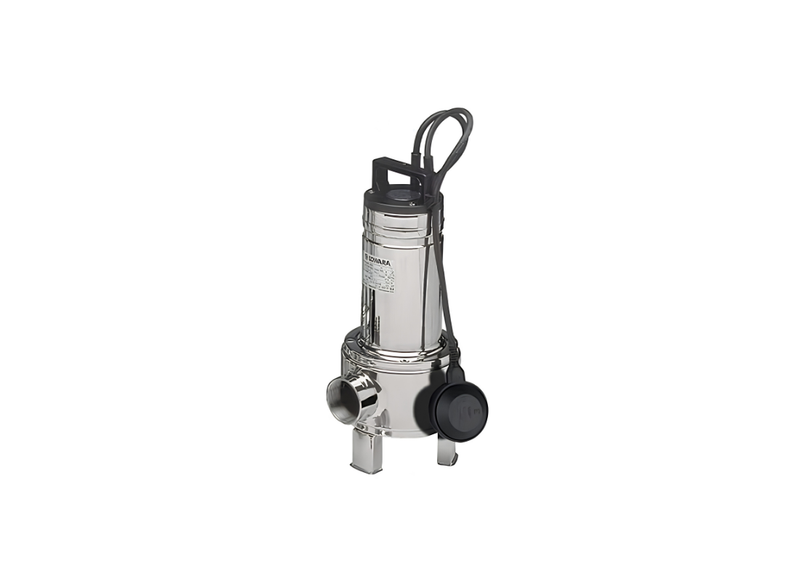

Lowara DOMO20T Stainless Steel 50mm Solids Submersible Drainage Pump for Sewage Fluid with Channel Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Formulated to sustain substantial vertical lift parameters, the DOMO 20T Channel Impeller configuration mitigates fluid accumulation. The Lowara DOMO 20T is engineered to manage challenging environments, providing mechanical support for the pumping of effluent across demanding industrial locations.
The core assembly features a heavy-duty 304 Stainless Steel casting, delivering a defensive layer against abrasive wastewater. Designed to operate safely in fully submerged scenarios, the internal fluid trajectory allows for the smooth transit of liquids containing suspended solids up to 50 mm.
Driven by a powerful 1.5 kW Three-phase 415v motor, this unit operates efficiently by drawing a steady 3.81 Amps. The robust dry motor design is meticulously sealed against moisture and relies on the ambient liquid medium for crucial thermal exchange, enabling continuous extraction without exceeding the strict maximum 35°C liquid temperature boundary.
Engineered for significant hydraulic output, this pump maintains a strong maximum flow of approximately 670 L/Min and a maximum head of 13.2 m. The expansive 50 mm port dimensions facilitate rapid fluid transfer. A DRIVELUB multiple seal system, incorporating a silicon carbide mechanical seal, ensures barrier protection.
Features
- Features a heavy-duty Channel Impeller designed to clear abrasive fluid volumes.
- Constructed utilizing a premium 304 Stainless Steel casing for extreme resilience.
- Equipped with a DRIVELUB multiple seal system to maintain a watertight boundary.
- Includes a specialized silicon carbide mechanical seal for maximum abrasion defense.
- Engineered to safely convey wastewater containing large suspended solids.
- Features a thermally stable dry motor architecture for prolonged submersion.
- Configured with IPX8 protection and standard Class 155°C (F) insulation.
SPECIFICATIONS
| Max Flow | 670 L/Min |
| Max Head | 13.2 m |
| Power | 1.5 kW / 415v |
| Rated Current | 3.81 Amps |
| Suitable For | Effluent, Septic tanks |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Regarding pit immersion limits, what maximum immersion depth and permissible fluid temperature apply to this submersible sewage wastewater pump?
Sustaining across submerged utility sumps, the DOMO20T maintains a maximum 5 m immersion depth with allowable liquid temperatures up to 35°C and supports 50 mm solids passage.
Regarding vertical water propulsion, what maximum lift head does this submersible sewage wastewater pump sustain?
Attaining through plant water circuits, the DOMO-20-T sustains a peak dynamic head of approximately 13.2 m to propel clean liquid upward.
What maximum liquid delivery capacity and discharge pipe sizing are engineered into this submersible sewage wastewater pump?
Transmitting through system pipework runs, the DOMO 20 T maintains a maximum discharge flow rate of approximately 670 L/Min utilizing Rp 2" (50 mm) discharge threaded port.
To defend against corrosive liquid degradation, what alloy metallurgy and mechanical seals protect this submersible sewage wastewater pump?
Furnished for harsh corrosive applications, the DOMO_20_T ensures alloy metallurgy protection with AISI 304 stainless steel motor casing and pump body with Drivelub mechanical seals and precision mechanical face seals against corrosion.
In facility electrical circuits, what motor power in kilowatts and line voltage current feed support this submersible sewage wastewater pump?
Utilizing from facility electrical circuits, the DOMO20T runs on an electric motor rated at 1.5 kW (2.0 HP) supplied by 380–415 V, 50 Hz, three-phase at a current of 3.81 A.
